CE Certified Architectural Aluminium Systems
Direct factory export configurations engineered for high wind load, superior thermal efficiency, and long-term weather resistance across European, North American, and global markets.
Custom Aluminum Patio Sliding Screen Door with Mosquito Net
Precision-engineered extruded aluminum patio sliding door integrated with high-durability stainless steel mosquito netting and smooth roller tracks.
Wazzor Heavy Duty Double Tempered Glass Noiseless Sliding Door
NFRC-tested soundproof sliding door featuring large structural double glazing, ultra-silent heavy-duty wheels, and electrostatic powder coating.

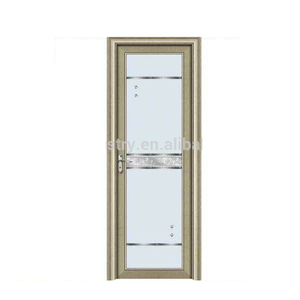

Factory Price Aluminum Half Glass Bathroom Entry Door
Moisture-resistant coated aluminum interior frame door with frosted safety glass, custom powder finish, and anti-corrosion hinges for humid spaces.
High Quality Simple Push-Pull PT/PD Sliding Swing Aluminum Door
Space-saving dual-action PT door mechanics allowing both sliding and full swing opening, perfect for high-traffic kitchen and bathroom layouts.
American Style Single Hung Vertical Sliding Aluminium Window
Thermally broken vertical hung window engineered to US replacement standards with full insect screening, Low-E glass, and spring-balance sashes.
Aluminum Magic Mirror Interior Sliding Concealed Pocket Door
Minimalist architectural pocket door system utilizing magic mirror privacy glass and concealed top-hung sliding hardware for modern interiors.

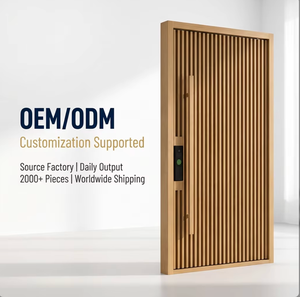

Modern Villa Aluminum-Wood Composite Anti-Theft Pivot Entrance Door
Grand scale main entry door combining structural coated aluminum profiles with warm timber composite, multi-point anti-theft locks, and vertical slat grilles.

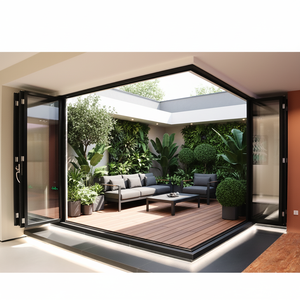

Thermal Break Double Glass Folding Soundproof Aluminium Patio Door
Heavy-duty insulated bi-fold door system configured with continuous double glazing, EPDM seals, and corrosion-resistant powder-coated extrusions.
CE Certification Framework & Surface Coating Innovations for Architectural Aluminium Windows
An in-depth analysis for procurement directors, commercial contractors, and façade engineers sourcing high-performance fenestration systems from Chinese manufacturers.
When procurement managers source CE Certified Aluminium Coated Windows from global factories and suppliers, verifying regulatory compliance and material durability is essential. The European Standard EN 14351-1:2006+A2:2016 establishes mandatory performance metrics for windows and external pedestrian doorsets. Achieving compliance requires rigorous third-party testing across three vital criteria: Air Permeability (EN 12207), Water Tightness (EN 12208), and Resistance to Wind Load (EN 12210).
1. Structural Extrusion Standards & Thermal Barrier Integration
High-tier aluminium windows utilize structural extrusions fabricated from primary billet aluminium alloy EN AW-6063 T6, delivering optimal yield strength (minimum 170 MPa) and exceptional structural stability under extreme climatic pressure. To prevent thermal bridging across modern building envelopes, profiles incorporate glass-fiber reinforced polyamide strips (PA66-GF25).
By splitting the interior and exterior aluminium profiles with non-conductive structural polyamide insulation, systems achieve ultra-low thermal transmittance coefficients. When paired with double or triple insulated glass units featuring Low-E argon-filled chambers and warm-edge spacers, overall window heat transfer rates drop below Uw ≤ 1.2 W/(m²·K)—satisfying stringent European energy saving directives and Passive House standards.
2. Advanced Surface Coating Metallurgy: Powder Coating vs. PVDF
The operational lifespan of aluminium windows exposed to severe UV radiation, industrial smog, or marine salt-spray environments depends entirely on surface pre-treatment and polymer coating technologies. China’s premier factories deploy two primary coating methodologies:
- Electrostatic Architectural Powder Coating (Qualicoat Standard): Formulated with thermosetting polyester resins, electrostatic powder coatings are applied to chromate-free converted aluminium extrusions before curing at 200°C. Standard Qualicoat Class 1 and Class 2 coatings provide exceptional scratch hardness, chalking resistance, and color retention across hundreds of RAL shades.
- Fluorocarbon Polyvinylidene Fluoride (PVDF / Kynar 500): Comprising 70% fluorocarbon resin composition, PVDF liquid spray coatings undergo multi-bake thermal processing. Recommended for coastal high-rises or industrial facilities, PVDF offers unmatched inertness against chemical corrosion, salt haze (exceeding 3,000 hours in NSS testing according to ISO 9227), and intense ultraviolet degradation.
Coating Technology & Structural Performance Metrics
Direct engineering comparison of surface coating options for B2B fenestration procurement.
| Coating Technology | Resin Foundation | Qualicoat / AAMA Standard | Salt Spray Resistance (ISO 9227) | UV Durability & Color Fade | Optimal Project Application |
|---|---|---|---|---|---|
| Standard Architectural Powder Coating | Thermosetting Polyester | Qualicoat Class 1 / AAMA 2603 | 1,000 Hours NSS | Good (5-8 Year Warranty) | Standard Residential & Interior Commercial |
| Super-Durable Powder Coating | Modified Polyester / FEVE | Qualicoat Class 2 / AAMA 2604 | 2,000 Hours NSS | Superior (10-15 Year Warranty) | High-Rise Residential & Urban Commercial |
| PVDF Fluorocarbon (2-Coat / 3-Coat) | 70% PVDF Resin (Kynar 500) | Qualicoat Class 3 / AAMA 2605 | 3,500+ Hours NSS | Extreme (20-30 Year Warranty) | Coastal Villas, Marine & Severe Industrial |
| Anodized Electrochemical Oxide | Aluminium Oxide Layer (20-25µm) | Qualanod Architectural Class 1 | 2,500 Hours NSS | Immune to UV Degradation | Modern Minimalist Architecture & Public Works |
Future Procurement Trends for Coated Aluminium Windows
Key structural shifts reshaping global fenestration supply chains over the next decade.
1. Low-Carbon Recycled Aluminium
With ESG mandates tightening globally, leading European developers now require certified low-carbon aluminium billets produced using hydroelectric power or post-consumer recycled metal (reducing carbon footprints below 4.0 kg CO2/kg Al).
2. Smart Building & BIM Integration
Commercial fenestration orders increasingly demand prefabricated window assemblies equipped with concealed motor drives for automated micro-ventilation, sensor integration, and digital BIM Level 2 compliance for smart facility management.
3. Ultra-Slim Minimalist Aesthetics
Modern luxury architectural trends favor concealed frame profiles, structural glass corner joints, and flush floor sills. Manufacturers must balance structural glass bonding techniques with narrow sightlines without compromising CE certified wind resistance.
Changsha Wincraft Aluminum Window Tech Co., Ltd.
Changsha Wincraft Aluminum Window Tech Co., Ltd. is a premier integrated manufacturer and exporter combining R&D, precision extrusion machining, surface coating, custom design, and worldwide delivery. Serving commercial contractors, importers, and architects across more than 80 countries, Wincraft operates a modern 20,000㎡ production base equipped with advanced CNC milling centers, automated double-head cutting saws, and rigorous testing laboratories.
Whether managing large-scale luxury villa fenestration, commercial office curtain walls, or custom OEM/ODM profile extrusions, our dedicated engineering team turns around detailed CAD shop drawings and 3D renderings within 24 hours, delivering finished container shipments in a predictable 4-week lead time.
Frequently Asked Questions by Global Importers & Contractors
Clear answers to common questions regarding certification, custom extrusions, logistics, and quality assurance.
Accelerate Your Architectural Fenestration Sourcing
Partner directly with a certified Chinese factory. Request instant CAD renderings, official test reports, and factory-direct pricing for your upcoming project.
