YUDON Hurricane Proof Aluminum Pivot Entry Door
Heavy-duty estate entrance door with realistic wood grain finish, multi-point lock core, and reinforced structural frames for impact resistance.
Factory-Direct Catalog
Precision Double Glazed Architectural Systems
Explore our certified aluminum window and door configurations engineered for extreme weather insulation, structural integrity, and acoustic dampening.

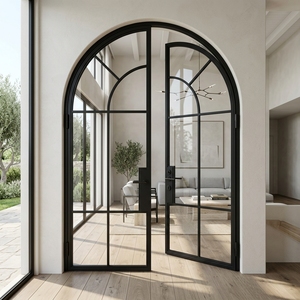

Modern French Arch Half-Moon Aluminum Glass Doors
Custom arcuate fenestration featuring double glazed tempered glass for living room, bedroom, and high-end luxury interiors.

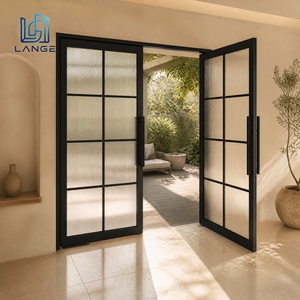

Hurricane Impact Thermal Break Aluminum Casement Door
High-security exterior glass entry doors engineered with PA66 thermal barrier profiles for coastal estate protection.
Custom Soundproof Aluminum Folding Glass Windows
Multi-panel bi-fold system providing acoustic isolation up to 42 dB. Ideal for sunrooms, patio enclosures, and commercial venues.
Partition Aluminium Glass Exterior Sliding Door System
Ultra-smooth sliding door configurations with heavy-duty stainless steel track rollers and concealed weather-seal brushes.
NFRC CE Certified Aluminum Tilt-Turn Window
Dual-action European mechanism providing micro-ventilation in tilt mode and total opening in turn mode with certified U-factor efficiency.
XIYATECH Energy Efficient Thermal Break Casement Windows
Modern black powder-coated aluminum profiles with double glazed Low-E insulating glass units for residential apartments.
Sturdy Pleated Folding Mesh Aluminium Screen Door
Integrated anti-insect polyester mesh with high-tensile aluminum frames for seamlessly protected residential doorways.
Engineering Insights
Technical Whitepaper: Structural & Thermal Engineering of Double Glazed Aluminum Windows
An in-depth analysis of materials metallurgy, thermal barrier physics, acoustic attenuation, and international compliance for commercial procurement.
U ≤ 1.2
W/m²·K Thermal Transmittance
45 dB
Max Sound Attenuation (STC)
6063-T5
Architectural Grade Alloy
PA66-GF25
Polyamide Thermal Barrier
1. Profile Metallurgy & Thermal Barrier Mechanics
Aluminum extrusions serve as the structural backbone of modern architectural facades. However, raw aluminum exhibits a high thermal conductivity of approximately 200 W/m·K. To comply with rigorous international energy codes—such as ASHRAE 90.1, Australia's NCC, and European EN ISO 10077 standards—leading Chinese suppliers utilize Thermal Break Technology.
At Changsha Wincraft, profile extrusions are crafted exclusively from 6063-T5 / T6 architectural aluminum alloy, providing superior tensile strength (≥ 160 MPa) and yield strength (≥ 110 MPa). The thermal break profile splits the aluminum frame into interior and exterior chambers, structurally joined by a low-conductivity PA66-GF25 (25% Glass Fiber Reinforced Polyamide 66) strut. This polyamide barrier reduces the thermal conductivity of the frame to under 2.5 W/m·K, effectively stopping heat transfer via thermal bridging.
2. Double Glazed Insulated Glass Unit (IGU) Physics
A standard double-glazed window assembly relies on an hermetically sealed dual-pane Insulated Glass Unit (IGU). The performance of the IGU is determined by glass pane thickness, air cavity depth, gas fill type, and optical coatings:
- Low-Emissivity (Low-E) Magnetron Sputtered Coatings: Applied to Surface #2 or Surface #3 within the unit, microscopic metal oxide layers reflect long-wave infrared thermal energy while permitting high visual light transmittance (VLT). Dual-silver and triple-silver Low-E options reduce the Solar Heat Gain Coefficient (SHGC) down to 0.23.
- Inert Gas Fill Efficiency: Replacing atmospheric air inside the cavity with 90%+ concentration Argon (Ar) or Krypton (Kr) gas lowers conductive and convective heat transfer due to higher gas density and lower dynamic viscosity.
- Warm-Edge Spacer Technology: Transitioning from traditional aluminum box spacers to composite warm-edge spacers (such as Technoform or Swisspacer) prevents cold-edge perimeter bridging, reducing condensation risk by over 80%.
Fenestration Engineering Performance Comparison Matrix
| Window Specification Type | Overall U-Value (W/m²·K) | SHGC Range | Sound Reduction (STC) | Wind Pressure Resistance |
|---|---|---|---|---|
| Single Glazed Standard Aluminum | 5.6 - 6.2 | 0.75 - 0.82 | 22 - 25 dB | 1200 - 1800 Pa |
| Standard Double Glazed (Non-Thermal Break) | 2.8 - 3.4 | 0.55 - 0.65 | 30 - 34 dB | 2000 - 3000 Pa |
| High-Perf. Thermal Break + Low-E Double Glazed | 1.2 - 1.8 | 0.24 - 0.40 | 38 - 45 dB | 4500 - 6000+ Pa |
2025–2030 Market Outlook
Future Procurement & Architectural Trends in Global Fenestration
Strategic purchasing directions for importers, real estate developers, and contract specifiers scaling up project procurement from China.
Trend 01
Zero-Energy Building (ZEB) & Passive House Compliance
Global building codes are tightening thermal envelope mandates. Importers are shifting toward ultra-insulated multi-chamber thermal break profiles with structural U-factors under 1.0 W/m²·K. Pre-engineered thermal breaks integrated with Aerogel insulation strips are becoming standard requirements in North American and Northern European tenders.
Trend 02
Ultra-Narrow Sightlines & Minimalist Aesthetics
Contemporary architectural designs demand maximum glass-to-frame ratios. Narrow-frame sliding doors and concealed-sash tilt-turn windows with visible profile widths under 30mm dominate luxury residential inquiries. Structural silicone structural glazing (SSG) techniques ensure high wind load resistance despite slim sightlines.
Trend 03
Smart Fenestration & Automated Hardware Integration
Demand for motorized sash operators, integrated rain-sensor automatic closure, and electronic multi-point smart lock synchronization is expanding across commercial developments. Double-glazed units incorporating switchable electrochromic PDLC smart glass allow instant privacy control via Building Management Systems (BMS).
Trend 04
Digital BIM Integration & Supply Chain Traceability
Overseas architectural firms now mandate BIM (Building Information Modeling) Revit files alongside direct factory quotes. Advanced suppliers in China provide parametric 3D CAD modeling, raw material origin certificates, and full environmental product declarations (EPD) for LEED points calculation.
Factory Advantage
Enterprise Capabilities: Changsha Wincraft Tech Co., Ltd.
An integrated manufacturer bridging architectural design, precision CNC engineering, and global export logistics.
Intelligent Production Infrastructure
Operating a modern 20,000 m² industrial production plant equipped with automated 5-axis CNC machining centers, dual-head precision cutting saws, and automated corner crimping lines. Our production throughput exceeds 300,000 m² of certified fenestration products annually.
OEM / ODM Customization Workflow
From initial architect schematics to full shop drawings, our engineering team generates 24-hour design renderings and structural calculation sheets. We offer private-label profile extrusion, custom anodizing, Qualicoat Class 2 powder coating, and specialized timber-grain surface finishing.
Global Compliance & Quality Auditing
Every batch undergoes strict internal testing, including air permeability (EN 12207), water tightness (EN 12208), wind resistance (EN 12210), and IGU dew point analysis at -40°C. Fully compliant with NFRC, CE, AS2047, and SGCC glass safety standard requirements.
Sourcing FAQ
Frequently Asked Procurement Questions
Essential answers for foreign buyers, procurement managers, contractors, and trading distributors importing aluminum window systems from China.
What certifications do your aluminum double glazed windows carry for foreign building codes?
Our window and door systems are tested and certified to comply with major international building codes. We hold AS2047 and AS1288 certification for Australia and New Zealand, NFRC and AAMA compliance for North America, and CE (EN 14351-1) certification for the European Union. Glazing units feature SGCC (North America) and AS/NZS 2208 safety glass marks.
What is your standard production lead time for customized commercial orders?
Standard customized orders are completed within approximately 4 weeks (25 to 30 calendar days) after final shop drawing approval and deposit receipt. For large-scale multi-unit commercial developments, shipment schedules are structured in batch consignments aligned with your jobsite installation timeline.
Do you offer custom profile development and private label (OEM/ODM) support?
Yes. We support complete OEM and ODM cooperation models. Our engineering department develops custom aluminum extrusion dies, custom hardware integration, custom surface finishes (RAL color matching), protective branding films, and customized heavy-duty export packaging designed specifically for wholesale distributors.
How do you ensure safe ocean transit and prevent glass breakage during export shipping?
Every window frame is wrapped in protective scratch-resistant film, padded with corner guards, and sealed in water-impermeable shrink wrap. Units are loaded into fumigated fully enclosed plywood crates with heavy-duty rubber spacers. Containers are secured using industrial tension straps to withstand harsh ocean motion and transshipment.
Can your thermal break window systems withstand hurricane winds and coastal salt corrosion?
Yes. For coastal or tropical cyclone-prone regions, we supply high-specification hurricane impact systems featuring reinforced aluminum wall thicknesses up to 3.0mm, laminated glass build-ups (e.g., 6mm Tempered + 1.52mm SGP/PVB + 6mm Tempered), multi-point stainless steel hardware, and Qualicoat Class 2 / Class 3 fluorocarbon (PVDF) surface coatings that resist salt spray corrosion for over 20 years.
What is the minimum order quantity (MOQ) for custom project sourcing?
To accommodate diverse procurement requirements, we maintain flexible MOQ policies. While our production line efficiency is optimized for container-load orders (20GP/40HQ), we fully support sample orders and whole-house luxury villa projects starting from 30 square meters.
Ready to Request Technical Drawings or Factory Pricing?
Send your project schedule, CAD elevations, or performance requirements directly to Changsha Wincraft's engineering office for rapid evaluation and transparent factory-direct quote generation.
