Engineered Aluminium Cottage Pane & Architectural Fenestration Systems
Explore our export-grade double-glazed cottage pane doors, folding systems, and heavy-duty sliding doors manufactured to international standards (AS2047, NFRC, CE).
Folding Windows 90-Degree Stacking Aluminum Frame Double Glazing Soundproof for Villa Terrace Balcony Use
Precision-engineered 90-degree corner stacking folding window system with thermal break profiles and high-stiffness structural framing.

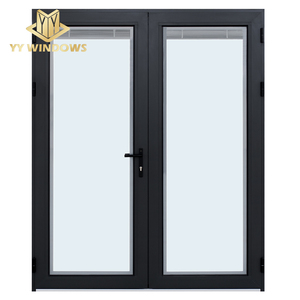

Double Glass California Architectural Industrial Aluminum French Doors Exterior/aluminum Hinged Door with Screen
Industrial-style California cottage pane French doors featuring double toughened glazing, integrated mesh screen, and multi-point security locking.
Topbright Modern Custom Office & Store Front Glass Aluminum Exterior Doors with Anti-Theft Heat Insulation & Waterproof Features
Heavy-commercial storefront entrance doors crafted with insulated aluminum extrusions, anti-theft hardware, and superior weatherproofing.
Customized Aluminum Double Glass Sliding Door Energy Efficient NFRC AS2047 Certification Aluminum Heavy Duty Lift Sliding Doors
NFRC & AS2047 certified lift-and-slide patio doors designed for expansive spans, hurricane wind load resistance, and low thermal transmittance.

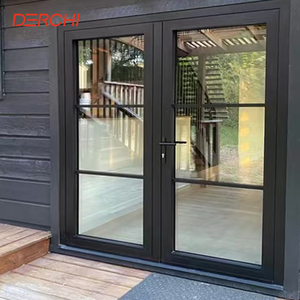

DERCHI NFRC Factory Wholesale Exterior Entry Crittal Door Design Tempered Glass Aluminum French Double Glass Swing Casement Door
Classic slim-line Crittall-style cottage grid swing doors combining retro aesthetic charm with modern PA66 polyamide thermal breaks.
AS2047 Australian Customized Aluminium Pocket Glass Sliding Door Concealed Pocket Door Trackless Sliding Hidden Sliding Door
Architectural concealed cavity pocket sliding doors meeting Australian AS2047 standards for seamless indoor-outdoor spatial integration.
JUNYAO Factory Hurricane Impact Windproof Accordion Folding Window PA66 5+20A+5 Energy Saving NFRC for Event Project
Extreme wind-load resistant accordion window utilizing 5+20A+5 argon-filled double glazing and structural PA66 nylon thermal barriers.
Promotional Customization Tinted Glass Aluminum Glazed Bullet Proof Fixed Safety Door and windows
High-security ballistic and forced-entry resistant aluminum fenestration featuring tinted laminated safety glass and heavy alloy frames.
1. Technical Blueprint: Architectural Engineering of Aluminium Cottage Pane Doors
Architectural fenestration has undergone a decisive paradigm shift. Traditional timber and steel cottage pane doors—while historically cherished for their divided-lite lattice aesthetic—have long suffered from chronic vulnerabilities including micro-fracturing, thermal bridging, rust oxidation, high maintenance overheads, and inadequate acoustic isolation. As global building energy codes tighten under international standard frameworks such as ISO 13788, NFRC 100/200, and AS2047, top-tier Chinese manufacturers have re-engineered the classic cottage pane door through high-precision aluminum extrusion technology.
Modern aluminium cottage pane doors integrate structural 6063-T5/T6 grade aluminum profile matrixes with advanced Polyamide (PA66GF25) thermal break strips. This structural separation prevents kinetic heat transfer across internal and external door surfaces, allowing developers to maintain timeless Georgian and Crittall-style aesthetic grids without sacrificing thermal performance.
Key Structural Component Engineering
- Profile Alloy Metallurgy: Primary architectural-grade 6063-T5 extruded aluminum with a minimum wall thickness of 2.0mm to 3.0mm, yielding ultimate tensile strength exceeding 160 MPa and yield strength over 110 MPa for extreme structural resistance against wind deflections.
- Thermal Isolation Barrier: Precision-fitted PA66GF25 (25% structural glass fiber reinforced nylon 66) thermal break bars engineered to maintain low thermal conductivity (λ ≤ 0.3 W/m·K), mitigating thermal bridge effects even under extreme ambient temp gradients.
- Glazing Grid Integration (Muntin Bars): Available in True Divided Lites (TDL) or Simulated Divided Lites (SDL). SDL configuration utilizes architectural internal aluminum spacer bars matched with double-sided structural 3M VHB tape and exterior powder-coated aluminum grid bars, preserving double-glazed IGU structural integrity while delivering authentic cottage pane visual depth.
- Sealing & Gasket Architecture: Triple continuous EPDM (Ethylene Propylene Diene Monomer) vulcanized rubber seals combined with silicone structural sealants, delivering air-tightness matching Class 4 (EN 12207) and water tightness up to 600 Pa (EN 12208).
High-Performance Structural Metrics
Technical benchmarks guaranteed across Changsha Wincraft export-grade fenestration packages.
Thermal Performance (U-Factor)
Engineered to deliver overall system U-factors down to 1.2 - 1.8 W/m²K when configured with Low-E double or triple Insulating Glass Units (IGUs) filled with 90%+ Argon gas.
Structural & Wind Load
Tested up to 5000 Pa (Ultimate Limit State) in accordance with ASTM E330 and AS2047, ideal for high-rise coastal villas and storm-prone commercial envelopes.
Acoustic Attenuation (STC)
Advanced multi-chamber profile geometry and asymmetric double glazing (e.g., 6mm + 12A + 5mm) achieve acoustic reduction ratings up to STC 38 - 45 dB.
2. Fenestration System Performance Specification Matrix
To assist architects, structural engineers, and commercial procurement directors in matching door systems with regional building code requirements, the matrix below details key performance benchmarks across primary aluminum opening configurations.
| Door / Fenestration System | Thermal U-Value (W/m²K) | Max Wind Load (Pa) | Acoustic Rating (dB) | Max Panel Height (mm) | Target Application |
|---|---|---|---|---|---|
| Aluminium Cottage Pane French Doors | 1.4 - 1.8 | 4500 Pa | 38 - 42 dB | 3000 mm | Luxury Residential Entrances, Villa Terraces |
| Heavy-Duty Lift & Slide Doors | 1.2 - 1.6 | 5000 Pa | 40 - 45 dB | 3500 mm | High-Rise Balconies, Coastal Mansions |
| 90-Degree Stacking Folding Doors | 1.5 - 1.9 | 3800 Pa | 36 - 40 dB | 3200 mm | Resort Terraces, Outdoor Living Spaces |
| Concealed Pocket Sliding Doors | 1.6 - 2.0 | 3500 Pa | 35 - 38 dB | 2800 mm | Minimalist Interiors, Executive Offices |
| Architectural Storefront Glass Doors | 1.8 - 2.2 | 4000 Pa | 34 - 38 dB | 4000 mm | Commercial Plazas, Retail Frontages |
3. Global Sourcing & Product Development Trends (2025-2030)
The global architectural aluminum fenestration market is entering a transformational phase driven by stringent decarbonization mandates, digital procurement channels, and shifting architectural preferences. B2B buyers importing from China must align their sourcing strategies with five mega-trends:
Trend 1: Low-Carbon Recycled Aluminum & EPD Certification
With Europe's CBAM (Carbon Border Adjustment Mechanism) taking full effect and global green building certifications like LEED v4.1 and BREEAM gaining absolute dominance, raw material traceability has become non-negotiable. Top Chinese suppliers are transitioning to primary aluminum smelted with hydro-electric power and incorporating certified post-consumer recycled aluminum. Sourcing products backed by Environmental Product Declarations (EPD) will be essential for global procurement directors over the next decade.
Trend 2: Ultra-Narrow Sightlines with Concealed Heavy-Duty Hardware
Modern luxury architectural design demands maximum visual transparency. The market is rapidly moving away from bulky traditional framing toward ultra-slim sightlines (interlock profiles as narrow as 20mm–25mm). To support massive double- or triple-glazed panes weighing upwards of 400kg per panel, manufacturers are developing heavy-duty concealed stainless-steel tandem rollers, multi-point lock boxes, and hidden pivot hinges that maintain minimalist aesthetics without compromising load-bearing integrity.
Trend 3: Smart Building Automation & Electrochromic Integration
Cottage pane and architectural sliding door systems are increasingly integrated into centralized Smart Home Automation frameworks. Next-generation procurement involves motorized multi-point locking actuators, concealed magnetic sensor loops, and electrochromic dynamic smart glass (PDLC) that toggles from transparent to opaque via smartphone apps or building control systems.
Trend 4: Direct Factory Engineering Collaboration (BIM Level 2 / Digital Twin)
The traditional procurement workflow—relying on third-party trading intermediaries—is being replaced by direct digital twin collaboration. B2B buyers now expect direct communication with factory engineering teams capable of generating Revit/BIM Level 2 parameters, structural wind load calculations, and photorealistic 3D renderings within 24 hours of receiving architectural drawings.
4. Manufacturer Strength & Enterprise Advantages: Changsha Wincraft
As an industry leader in customized aluminum door and window manufacturing, Changsha Wincraft Aluminum Window Tech Co., Ltd. stands as a benchmark exporter of premium fenestration solutions, sunrooms, and garden pavilions to over 80 countries and regions worldwide.
20,000㎡ Modern Production Base
Equipped with intelligent CNC double-head cutting saws, automated corner-crimping machinery, and computerized double-glazing lines ensuring millimeter-precise manufacturing tolerance.
Turnkey OEM & ODM Customization
Full support for private labeling, customized profile extrusion dies, specialized powder-coating colors (AkzoNobel / PPG fluoropolymer PVDF), and tailored hardware branding.
Rapid 4-Week Production Lead Time
Streamlined production scheduling guarantees ~4-week standard lead times for custom orders, supported by 24-hour CAD design rendering turnaround for immediate client approval.
5. Comprehensive Procurement FAQ for Overseas B2B Buyers
Direct answers from our engineering desk addressing critical procurement, compliance, and logistics questions.
Do you accept OEM and ODM orders for aluminum doors and windows?
Yes. We support complete OEM and ODM cooperation models, including private labeling, custom profile extrusion dies, specialized architectural colors (RAL, PVDF, anodized, wood grain), bespoke packaging, and proprietary system development based on client drawings or regional market requirements.
What is the standard production lead time for customized orders?
Standard customized orders are typically manufactured within 4 weeks following shop drawing sign-off and order confirmation. Large-scale commercial or multi-unit villa development projects are scheduled in staggered batch shipments according to the on-site construction sequence.
Can you provide design proposals and shop drawings prior to production?
Yes. Our in-house structural engineering team communicates directly with project architects and commercial buyers to deliver design proposals and photorealistic renderings within 24 hours, followed by detailed BIM/CAD shop drawings for structural approval.
How do you handle shipping, crating, and overseas logistics?
We provide complete export logistics support. Products are packed using protective film, foam edge corner guards, and fully enclosed steel-reinforced wooden crates suitable for sea freight container transport. We issue complete export documentation, handle customs clearance, and offer door-to-door delivery options.
Can your products meet the specific building code standards in my country?
Yes. Simply share your local building energy codes, design wind load pressures (Pa), and acoustic specifications. Our engineering desk will recommend the optimal thermal break profile thickness, glass build-up (e.g., Low-E, laminated, argon filled), and heavy-duty hardware systems to ensure full compliance with standards such as AS2047 (Australia), NFRC / AAMA (USA), or CE / EN 14351-1 (Europe).
What is the difference between TDL and SDL in cottage pane door manufacturing?
True Divided Lite (TDL) cuts individual glass panes into each grid frame, which increases potential air/water leakage points and lowers thermal efficiency. Simulated Divided Lite (SDL) utilizes a single continuous double-glazed IGU with internal aluminum spacer grids and exterior structural adhesive muntin bars. SDL delivers superior thermal performance (lower U-value), higher structural strength, and better water tightness while perfectly preserving the traditional cottage pane look.
Ready to Engineer Your Custom Fenestration Package?
Send your architectural CAD drawings, project schedules, or OEM specifications directly to our engineering desk. Receive an accurate factory-direct proposal within 24 hours.
