Featured Commercial & Residential Aluminum Swing Systems
Engineered to exceed international building codes (ASTM, CE, AS2047). Explore our wholesale aluminum swing, casement, pivot, and specialty door configurations.
Anatomy & Structural Engineering of Commercial Aluminum Double Swing Doors
In contemporary architectural design, the aluminum double swing door (frequently designated as double casement or French swing entry doors) serves as a primary fenestration element bridging spatial aesthetics with high-performance physical barriers. Sourcing directly from China’s leading wholesale manufacturing clusters requires architectural specifiers, general contractors, and building material importers to evaluate core metallurgical profiles, thermal break barrier integrations, structural wind load performance, and acoustic damping indices.
6063-T5 / T6 Aluminum Profile Alloys
Precision extruded primary aluminum billets exceeding ASTM B221 benchmarks. T6 heat-treating treatment delivers ultimate tensile strength ≥ 205 MPa and yield strength ≥ 180 MPa, ensuring zero frame deflection on large double-panel active/inactive leaf configurations up to 3000mm in height.

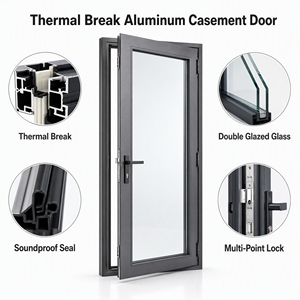

PA66-GF25 Polyamide Thermal Barriers
Integrated 24mm to 34mm polyamides reinforced with 25% glass fiber (PA66-GF25). Dramatically suppresses heat transfer coefficient (U-value), lowering thermal conductivity from un-broken 5.8 W/m²·K down to ≤ 1.4 W/m²·K, preventing interior surface condensation in severe climate zones.
Security & Hardware Matrix
High-load 3D adjustable stainless steel 304 heavy-duty butt hinges (rated > 180kg per pair) paired with 3-point or 5-point shoot-bolt locking mechanisms (HOPO / Siegenia grade), complying with PAS 24 and RC2 burglar-resistance standards.
Enterprise Strength: Changsha Wincraft Aluminum Window Tech Co., Ltd.
Changsha Wincraft Aluminum Window Tech Co., Ltd. is a premier Chinese manufacturer and global exporter of architectural aluminum doors, thermal-break windows, sunrooms, and heavy-duty double swing doors. Serving B2B clients across 80+ countries, Wincraft seamlessly unifies R&D engineering, rapid CAD prototyping, automated assembly lines, and export logistics under one accountable roof.
OEM/ODM Custom Extrusion & Surface Finishes
Wincraft offers private-label manufacturing and customized profile design. Choose from electrostatic Qualicoat Class 2 fluorocarbon (PVDF) powder coating, metallic anodizing (15–25 μm), electrocoating, and Italian heat-transfer 3D wood grain finishes designed for coastal salt-spray resistance (ASTM B117 tested over 3,000 hours).
Rigorous Full-Process Quality Assurance
From billet spectrometer testing to automated corner joint injection and EPDM weather-strip vulcanization, every double swing door assembly undergoes digital laser squareness verification, air tightness pressure chamber testing, and protective sea-worthy plywood crate packaging.
Future Procurement Trends for Wholesale Aluminum Double Swing Doors
How global energy policies, architectural minimalism, and supply chain shifts are reshaping commercial fenestration purchasing decisions over the next decade.
1. Ultra-Low U-Value Mandates
Stricter green building codes (EU Energy Performance of Buildings Directive, US IECC 2024, Australia NCC) require double swing doors to feature warm-edge spacer IGUs (5mm Low-E + 16Ar + 5mm) yielding overall thermal transmittance U ≤ 1.2 W/m²·K. Importers are phasing out non-thermal profiles entirely for exterior applications.
2. Ultra-Narrow Sightline Profiles

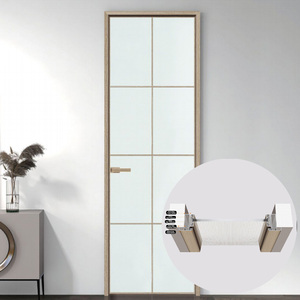

Architectural preferences lean heavily toward ultra-slim sightlines (stiles under 45mm) maximizing natural daylight. Advanced 6063-T6 aluminum extrusion designs allow minimal visual mass without compromising wind load deflection resistance (ASTM E330 testing up to 4500 Pa).
3. Smart Access & Motorized Automation
Wholesale buyers are specifying pre-drilled wire pathways inside profiles for biometric access control, hidden magnetic sensors, electronic multipoint mortise locks, and motorized concealable swing arm operators compatible with smart building automation systems.
4. Direct Factory Sourcing & BIM Integration
Procurement teams bypass intermediary brokers to collaborate directly with Chinese factories like Wincraft capable of delivering 3D Revit BIM files, 24-hour shop drawing revisions, and complete Container-Load (FCL) protective logistics packages.
Technical Comparison: Conventional vs. High-Performance Thermal Break Double Swing Systems
Use this data matrix to evaluate profile engineering when selecting aluminum double swing door specs for commercial tenders or residential developments.
| Technical Parameter | Standard Non-Thermal Swing Door | Wincraft Heavy-Duty Thermal Break Swing System | Testing Standard & Compliance |
|---|---|---|---|
| Profile Alloy & Wall Thickness | 6063-T5 (1.4mm – 1.6mm) | 6063-T6 High-Precision (2.0mm – 3.0mm Structural Reinforcement) | GB 5237 / ASTM B221 |
| Thermal Transmittance (U-Value) | 4.5 – 5.8 W/m²·K | 1.2 – 1.6 W/m²·K (With Argon Filled Low-E IGUs) | ISO 10077-2 / NFRC 100 |
| Acoustic Insulation Index (STC) | STC 25 – 28 dB (Single Monolithic Glass) | STC 38 – 44 dB (Double/Triple Laminate Insulated Glass) | ASTM E90 / ISO 717-1 |
| Wind Pressure Deflection | 1500 Pa – 2000 Pa | up to 4500 Pa (Design Wind Load Structural Rating) | ASTM E330 / EN 12210 |
| Water Penetration Resistance | 150 Pa (Basic Threshold) | 600 Pa (Concealed Sub-Sill Drainage + Triple EPDM Gaskets) | ASTM E331 / EN 12208 |
| Air Infiltration Rate | Level 3 (1.5 m³/m·h) | Level 8 / Class 4 (≤ 0.1 m³/m·h Continuous Compression Seal) | ASTM E283 / EN 12207 |
| Hinge Cycle Fatigue Test | 25,000 Open/Close Cycles | > 100,000 Continuous Mechanical Operating Cycles | EN 1191 / ANSI/BHMA A156.1 |
Product Development Trends: Next-Generation Double Swing Doors
Driven by global decarbonization targets and advanced manufacturing automation, Chinese door and window factories are pushing the technical envelope in several key areas:
- Hydro-formed High-Strength Extrusions: Utilizing 6060 T66 and specialized micro-alloying to increase structural frame rigidity by 25% without adding deadweight to the swing leaf hinges.
- Concealed Heavy-Duty Hardware Integration: Transitioning from visible surface-mounted butt hinges to fully concealed 180° opening 3D multi-axis hinges capable of supporting up to 200kg glass panels for uninterrupted minimalist elevation designs.
- Vacuum Insulated Glass (VIG) Hybrid Technology: Integrating 8.3mm ultra-thin Vacuum Glass panels into thermal break double swing frames to achieve super-insulated U-values under 0.6 W/m²·K, matching solid wall insulation performance.
- Eco-Friendly Powder Coating & Recycled Billet Utilization: Incorporating > 75% post-consumer recycled aluminum alloys melted using renewable hydroelectric power, drastically lowering the embodied carbon footprint per square meter of finished fenestration.
Frequently Asked Questions for B2B Importers & Contractors
Essential technical and commercial answers for buyers sourcing aluminum double swing doors directly from Chinese manufacturers.
What is the primary difference between a standard double swing door and a thermal break French double swing door?
Can Changsha Wincraft customize profile colors, glass specs, and door dimensions for OEM project tenders?
What international building codes and performance standards do Wincraft double swing doors comply with?
How does Wincraft ensure air and water tightness on the double-leaf meeting stiles (astragal area)?
What is the standard production lead time and export packaging standard for container orders?
What hardware options (hinges, locksets, handles) are available for wholesale orders?
How can I request CAD drawings, engineering estimates, or factory price quotes for my project?
Ready to Source High-Performance Aluminum Double Swing Doors?
Get direct factory-direct wholesale pricing, custom OEM/ODM drawing proposals within 24 hours, and comprehensive technical catalogs from Changsha Wincraft Aluminum Window Tech Co., Ltd.
