High-Performance Aluminum Doors, Windows & Fenestration Systems
Explore our engineering-grade profiles customized for commercial developments, residential complexes, and industrial sites worldwide.

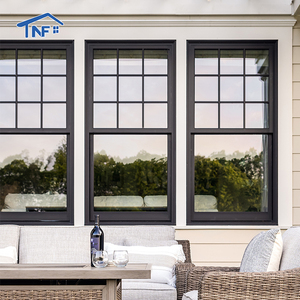

High Quality Top Thermal Break Aluminum Profile Double Glass Single Hung Sliding Windows With Grille
- Profile: 6063-T5 Thermal Break Aluminum
- Glass: 5mm+12A+5mm Double Tempered
- Airtightness: Class 4 (EN 12207)
LUVINDOW Smooth Operation Sturdy Frame Energy Saving Thermal Break Aluminum Awning Windows For Classic American Projects
- Operation: Heavy-Duty Truth Hardware
- Thermal Performance: U-Factor ≤ 0.28
- Water Tightness: 450 Pa Rating
China Manufacturer Swing Open Aluminium Glass French Doors Double Panel Exterior Aluminium Door for Patio
- Structure: Reinforced Double Panel Swing
- Locking: Multi-Point Security System
- Finish: Fluorocarbon Coating (PVDF)
Breathable Modern Manual Aluminum Bathroom Door Half-Glass Ventilation Grille for Natural Light Waterproof/Heat Insulation
- Application: High Humidity Interior
- Feature: Half-Glass & Vent Grille
- Corrosion Protection: Anodized 15µm
Modern 130 Series Aluminum Sliding Door Window Set Finished Surface Interior Use Custom Size Energy Efficient
- Depth: 130mm Heavy Structural Frame
- Glazing: Double Low-E Argon Filled
- Roller System: Stainless Steel 300kg Load
Custom Aluminum Exterior French Door with Tempered Glass Modern Balcony French Swing Door
- Glass: Toughened Safety Glass (SGCC)
- Hinges: 3D Adjustable Heavy Duty
- Design: Ultra-Slim Sightline Frame
Best-selling Aluminium Alloy Double Glass Interior Sliding Pocket Doors Sliding Doors Supplier
- Mechanism: In-Wall Concealed Slide
- Acoustic: STC 38 Noise Dampening
- Track: Soft-Close Synchronized Rail
Aluminum Alloy Horizontal Louver Windows With Modern Design For Outdoor Use Air Ventilation & Shutter Protection
- Blade Type: Aerofoil Variable Pitch
- Operation: Manual or Motorized Drive
- Wind Resistance: Up to 3.0 kPa
Architectural & Industrial Engineering Analysis: Aluminum Overhead Doors & Fenestration
An authoritative technical evaluation of structural profile alloys, thermal insulation physics, dynamic wind-load resistance, and manufacturing precision.
1. Structural Alloy Metallurgy: 6063-T5 vs 6063-T6 Extrusions
In modern industrial overhead doors and exterior fenestration systems, profile structural integrity dictates long-term performance under dynamic cyclic loading. As a primary China wholesale aluminum overhead door factory, Changsha Wincraft Aluminum Window Tech Co., Ltd. utilizes prime-grade 6063 aluminum billets subjected to artificial aging (T5 and T6 tempers). The mechanical behavior of these profile profiles provides optimal strength-to-weight ratios essential for overhead track operation and heavy wind resistance.
| Metallurgical Property | AA6063-T5 Standard | AA6063-T6 High-Strength | Engineering Advantage |
|---|---|---|---|
| Tensile Strength (Ultimate) | ≥ 185 MPa | ≥ 241 MPa | Prevents profile deflection under high-span door operations. |
| Yield Strength (0.2%) | ≥ 145 MPa | ≥ 207 MPa | Resists permanent plastic deformation during heavy storm winds. |
| Webster Hardness | ≥ 8-10 HW | ≥ 12-14 HW | Protects joint hardware connection points against tear-out. |
| Anodizing / PVDF Adhesion | Class 15 (ISO 7599) | Class 15 (ISO 7599) | Guarantees 20+ years salt-spray and UV resistance. |
2. Thermal Break Dynamics & Polyamide (PA66-GF25) Cavity Engineering
Thermal bridging in metal-framed overhead doors and sliding fenestration accounts for significant energy dissipation in industrial warehouses and modern villas. To counteract conductive thermal loss, our systems incorporate multi-chambered polyamide thermal barrier strips reinforced with 25% glass fiber (PA66-GF25). This composite matching coefficient of thermal expansion (CTEs equal to alloy profile) prevents micro-gap seal degradation across extreme winter/summer thermal gradients (-30°C to +70°C).
Information Gain Note: Calculation of System U-Value Improvement
By integrating a 24mm PA66-GF25 thermal strut combined with dual Low-E Argon-filled insulated glass units (IGU), overall window/door thermal transmittance is reduced from U = 5.8 W/(m²·K) (unbroken profile) down to U ≤ 1.4 W/(m²·K), meeting rigorous Passivhaus and US Title 24 Energy Efficiency Codes.
3. Counterbalance Mechanical Torsion Spring & Track Kinetics for Overhead Doors
Industrial aluminum sectional overhead doors rely on precise force balance dynamics. Our manufacturing facility engineers custom oil-tempered helical torsion springs designed for a standard working lifespan of 25,000 to 100,000 operational cycles. Coupled with heavy-duty galvanized steel or aluminum tracks equipped with quiet nylon-bearing rollers, our overhead systems maintain smooth vertical lift, reduced vibration, and high structural safety under coastal wind loading conditions (EN 12424 Class 4 wind load rating up to 14级 typhoon level equivalent).
Future Procurement Trends in Wholesale Aluminum Doors & Fenestration (2026–2030)
Key strategic insights for global importers, commercial buyers, and construction contractors planning multi-year supply chain procurement.
1. IoT-Automated Overhead Systems
Next-generation overhead doors are rapidly integrating smart sensors, automated radar opening triggers, PLC industrial controls, and real-time predictive maintenance tracking for smart logistics centers and luxury residential garages.
2. Ultra-Low Carbon Decarbonization
Global building codes increasingly mandate low embodied carbon profiles. Direct sourcing from certified factories utilizing hydro-powered aluminum smelting (Green Aluminum) combined with solar-thermal coatings will become a standard tender prerequisite.
3. Pre-Assembled Modular Knock-Down (KD)
To reduce container shipping volume by up to 40%, international buyers are prioritizing modular Knock-Down (KD) hardware kits and field-assembled sectional doors that maintain factory-level precision without inflated ocean freight rates.
Why Sourcing Direct from Wincraft Guarantees Project Success
Changsha Wincraft Aluminum Window Tech Co., Ltd. operates a premier manufacturing complex delivering end-to-end engineering, custom profile extrusion, and rigorous export handling.
24-Hour Shop Drawing Delivery
Our in-house structural engineering team converts your architectural specifications, CAD sketches, or BIM models into production-ready shop drawings within 24 hours to eliminate pre-production delays.
5-Axis CNC Precision Processing
Equipped with modern CNC profile machining centers, we achieve ±0.1mm tolerance on corner joints, hinge cutouts, lock mortises, and structural mullion connections for flawless site installation.
Full Process Export Quality Assurance
Every shipment undergoes multi-point inspections: film thickness test, glass stress verification, seal compression check, and trial packaging in ocean-freight steel crates.
State-of-the-Art Production Facility & Logistics Execution
B2B Buyer's Risk Mitigation & Quality Inspection Guide
Essential checklist for construction directors, architects, and international importers auditing Chinese fenestration exporters.
| Inspection Stage | Critical Test Metric | Industry Acceptance Standard | Wincraft Factory Guarantee |
|---|---|---|---|
| Raw Material Audit | Chemical Alloy Composition | ASTM B221 / GB/T 5237.1 (AA6063 Standard) | 100% Primary Ingot Aluminum Mill Test Certificates (MTC). |
| Surface Finish Test | Powder Coating Thickness & Cross-Hatch | Qualicoat Class 2 / AAMA 2604 (≥ 60-80 µm) | AkzoNobel / PPG Fluorocarbon finishes with 20-year non-fading warranty. |
| Structural Assembly | Corner Joint Shear Strength | Joint Tensile Force ≥ 5000 N | Concealed cast-aluminum corner cleats injected with 2-part epoxy glue. |
| Glazing Inspection | Insulated Glass Seal Integrity | ASTM E2190 / EN 1279 Dual Seal Standard | Primary butyl sealant + secondary structural silicone with molecular sieve. |
| Packaging & Shipping | Impact & Moisture Protection | ISPM-15 Fumigation Crating Standard | Fully enclosed wooden/steel boxes with corner protectors & moisture film. |
Technical & Logistics Sourcing FAQ
Direct answers to common questions raised by overseas procurement managers and engineering teams.
