Featured OEM/ODM Architectural Doors & Windows
Direct factory-engineered systems manufactured with precision extruded 6063-T5 aluminum profiles, high-efficiency double/triple thermal glass, and heavy-duty hardware systems built to international building codes.

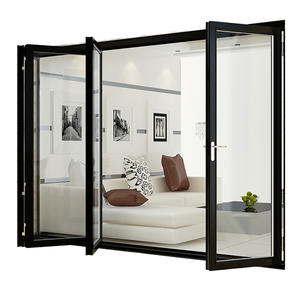

Bi Fold Doors Aluminium for Building House Villa Project
Heavy-duty aluminum multi-panel folding door custom-engineered for modern residential villas. Features flush threshold options and seamless indoor-outdoor panoramic integration.

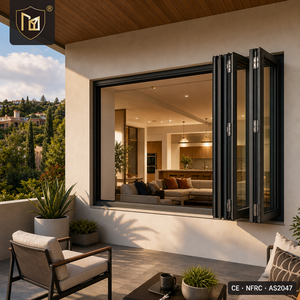

Balcony Residential Bi-Fold Window Aluminum Thermal Break 5+20A+5 Low-E Soundproof Hurricane Resistant CE NFRC For Home
Thermal break bi-fold window system equipped with 5+20A+5 Low-E insulated glass. Rated for severe wind load resistance, acoustic isolation, and CE/NFRC climate compliance.

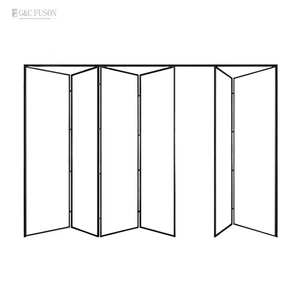

Fuson Latest Design Bi-Fold Doors Waterproof Puertas Abatibles Aluminum Frame Folding Doors and Aluminum Glass
Advanced waterproof aluminum bi-fold door featuring dual EPDM weather-sealing strips, high-load bottom rollers, and impact-resistant tempered safety glass configurations.
Modern Style Tilt Turn Window Low-E Glass German Hardware Aluminium Frame Swing Open for Villa-Double Glazing Horizontal Opening
German multi-point locking tilt and turn window engineered for dual opening modes. Delivers airtight seal integrity, superior acoustic damping, and versatile micro-ventilation.
Commercial Swing Doors
Heavy-traffic commercial aluminum entrance swing doors fitted with overhead concealed closers, panic hardware compatibility, and reinforced corner key joinery for structural durability.
Arch Aluminum Casement Doors Interior Bathroom Kitchen Double Door Wrapped Modern Flush Glass Aluminum French Doors with Grilles
Architectural arched aluminum casement double doors with customized decorative internal grilles, flush glass profiling, and moisture-resistant anodized finishes for luxury interiors.
Aluminum Fireproof Wood Grain Wooden Door Indoor Bedroom Moisture-proof Aluminum Wooden Door
Thermal transfer wood-grain aluminum composite door combining natural timber aesthetic with fire resistance, zero formaldehyde, and 100% moisture-proof anti-warping structure.
Luxury Modern 3D Triangle Design Aluminum Security Door All Weather Wooden Textured for Apartment Villa Exterior Front Entry
High-security exterior entry door engineered with 3D geometric aluminum cast paneling, multi-point anti-theft locking, and all-weather UV-resistant textured exterior coatings.
Technical Architecture of OEM/ODM Aluminum Bi-Fold Door Systems
An engineering breakdown of thermal break profiles, structural load capacities, glazing configurations, and hardware integration required for commercial and high-end residential installations.
1. Extrusion Metallurgy & Structural Alloy Selection
Commercial bi-folding doors demand rigorous structural rigidity to prevent sash sag over wide clear spans. We utilize 6063-T5 and 6063-T6 architectural aluminum extrusions with standard profile wall thicknesses ranging from 1.6mm to 3.0mm, adhering strictly to EN 755-9 and GB 5237 standards.
Tensile strength metrics exceed 205 MPa for T6 tempers, ensuring structural stability under high wind loads up to 4500 Pa (equivalent to Category 5 hurricane pressures).
2. Thermal Break Barrier & Energy Efficiency ($U$-Factor)
To mitigate conductive thermal bridges, profiles incorporate imported Polyamide PA66 GF25 (25% glass fiber reinforced) thermal break strips. Combined with multi-cavity insulation designs, total system thermal transmittance values ($U_w$) are engineered down to 1.1 – 1.4 W/m²K.
This technical compliance fulfills US Title 24 Energy Standards, European CE EN 14351-1 requirements, and Australian AS2047 energy ratings.
3. Glazing Matrix & Acoustic Isolation Performance
Our OEM manufacturing supports comprehensive glass build-ups customized to local climate demands:
- Double Insulated Glass Units (IGU): 5mm Low-E + 14A/20A Air/Argon + 5mm Tempered Glass.
- Triple Glazed Acoustic Systems: 5mm + 12A + 5mm + 12A + 5mm with Warm Edge Spacers ($STC \ge 42 \text{ dB}$).
- Hurricane Impact Safety Glass: 6mm Tempered + 1.52mm SentryGlas/PVB Interlayer + 6mm Tempered.
Technical Insight: All glass units are sealed using dual-component structural silicone sealants and EPDM rubber weather gaskets, delivering zero air infiltration per EN 12207 Class 4 standards.
Future Procurement & Development Trends in Aluminum Bi-Fold Doors
Analysis of global architectural demands, evolving building codes, zero-energy mandates, and automated hardware innovations shaping future procurement orders.
Ultra-Low U-Value & Passivhaus Compliance
Global mandates for net-zero carbon construction are driving procurement toward triple-glazed, warm-edge insulated profiles achieving $U_w < 0.8 \text{ W/m}^2\text{K}$. Importers are phasing out non-thermal profiles entirely.
Ultra-Slim Sightlines & Concealed Hardware
Modern architectural minimalism favors ultra-slim vertical stiles under 30mm width. Top-hung concealed roller systems and embedded floor tracks are becoming standard specs for luxury commercial projects.
Smart Building & Motorized Automation
Integration of automated multi-panel folding mechanisms connected to smart home management (BMS, Somfy, Tuya). Includes automated rain sensors and electrochromic privacy glass customization.
Qualicoat Class 2 Coastal Finishes
Extreme climate durability dictates PVDF fluorocarbon coatings and anodized finishes tested for 3,000+ hours of salt-spray exposure, preventing corrosion on coastal villa developments.
Modular Pre-Assembled Export Packing
To reduce expensive overseas installation labor costs, suppliers are requested to provide pre-drilled, knock-down (KD) or modular unitized frames ready for rapid site erection.
B2B Technical Specification Decision Matrix
Select the appropriate profile series based on engineering requirements and site exposure conditions:
| Profile Series | Wall Thickness | Thermal Barrier | Max Panel Height | Wind Pressure Rating | Acoustic Rating (STC) | Primary Application |
|---|---|---|---|---|---|---|
| Series 55 Non-Thermal | 1.6 mm | None | 2.4 Meters | 2500 Pa | 28 - 32 dB | Interior Partitions / Mild Climates |
| Series 65 Thermal Break | 1.8 mm | 14.8mm PA66 GF25 | 3.0 Meters | 3500 Pa | 35 - 38 dB | Standard Villa / Residential Patio |
| Series 75 Heavy Duty | 2.0 - 2.5 mm | 24mm PA66 GF25 | 3.5 Meters | 4200 Pa | 38 - 42 dB | High-End Residential / Commercial |
| Series 80 Hurricane/Acoustic | 3.0 mm | 34mm PA66 GF25 | 4.0 Meters | 4800 Pa | 42 - 46 dB | Coastal Resort / Extreme Weather |
Changsha Wincraft Aluminum Window Tech Co., Ltd.
Wincraft is a premier Chinese manufacturer specializing in design, extrusion processing, surface treatment, and global delivery of aluminum fenestration systems. Serving over 80 countries, we operate under rigorous ISO 9001 quality management protocols.
Our in-house engineering group partners directly with architects, importers, and contractors, providing 24-hour CAD design renderings and shop drawing turnarounds alongside an efficient 4-week standard production cycle.
Smart Manufacturing Plant & Assembly Workshop
Frequently Asked Questions by International Buyers
Clear engineering, commercial, and logistical answers to streamline your direct factory sourcing process.
Q1: Do you accept OEM and ODM orders for aluminum doors and windows?
Yes. We specialize in comprehensive OEM and ODM services. We can manufacture bi-fold doors based on your architectural drawings, custom profile dies, brand labeling, custom RAL powder coating, and market-specific certification criteria (AS2047, CE, NFRC).
Q2: What is your standard production lead time and order process?
Standard customized orders are typically manufactured within approximately 4 weeks following final shop drawing confirmation and deposit payment. For large commercial projects, production is scheduled in containerized batches synchronized with site installation milestones.
Q3: Can your engineering team provide shop drawings prior to production?
Yes. Our structural engineering department works directly with architects and importers. We provide preliminary design proposals and 3D renderings within 24 hours of receiving project elevation plans, followed by detailed 2D CAD shop drawings for formal sign-off.
Q4: How are fragile glass panels and frames protected for international ocean shipping?
All aluminum profiles are wrapped in protective scratch-resistant film and bubble wrap. Glass units are packed inside heavy-duty, fully enclosed fumigated plywood crates with corner guards and internal shock absorption foam, guaranteeing zero transit breakage in LCL or FCL container shipping.
Q5: What hardware systems and max sash dimensions do you support?
We integrate premium German hardware brands (such as Siegenia, Hoppe, GU, Roto) as well as top-tier domestic multi-point lock systems. Our heavy-duty stainless steel bottom-rail roller carriages support single-panel weights up to 300kg and panel heights up to 4.0 meters.
Q6: How do you guarantee compliance with local building codes in my destination country?
Our engineering team reviews local design wind pressure (Pa), energy insulation mandates ($U$-factor, SHGC), and water penetration thresholds prior to profile selection. We issue factory test reports and technical compliance data sheets for local structural authority sign-offs.
Ready to OEM/ODM Your Aluminium Bi-Fold Door Project?
Consult with our fenestration engineering specialists today. Get direct factory pricing, structural calculations, and 24-hour CAD drawing support for your upcoming commercial or residential development.
