AS2047 Certified
Australian Standard Double Glazed Aluminium Sliding Windows
AS1288 & AS2208 compliant. Features heavy-duty tracks, sub-head drainage, and high-performance weather fin sealing.
Recommended Architectural Aluminium Glazed Windows & Doors
Engineered to meet Australian AS2047, European CE, and North American NFRC structural standards
PA66 Thermal Break
Fuson Thermal Break Aluminum Double & Triple Glazed Casement Windows
Multi-chamber polyamide thermal barriers paired with German hardware for superior U-factor insulation ($U_w \le 1.4\text{ W/m}^2\text{K}$).
Soundproof Acoustic
DERCHI Thermal Break Sound Insulation Aluminium Casement Windows
Engineered with multi-layer acoustic PVB laminated IGU glass for high-decibel residential dampening ($Rw \ge 42\text{ dB}$).
Commercial Grade
Fuson Commercial Office Building Tempered Glass Sliding Profile Windows
High-load commercial extruded profiles with multi-panel configurations designed for office facades and high-rise structures.
Waterproof & Airtight
Factory Direct Thermal Break Aluminum Awning Ventilation Windows
Top-hinged continuous EPDM gasket design offering maximum water resistance during storm conditions ($600\text{ Pa}$ rating).
Bi-Fold System
Custom Soundproof Aluminum Folding Windows for Sunrooms & Patios
Heavy-duty bottom roller carriages allowing 90% full-opening spatial clear views for patios, sunrooms, and commercial venues.
Minimalist Sightline
Ultra Slim Frame Aluminum Panoramic Glass Sliding Door with Hidden Track
Ultra-narrow 18mm vertical interlock profile design with floor-recessed concealed drainage tracks for luxury modern villas.
Interior Architectural

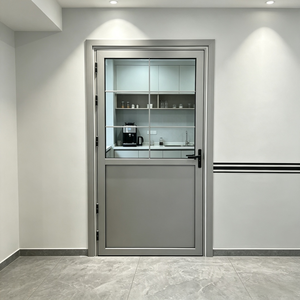

Factory Custom Half Glass Aluminum Alloy Swing Interior Doors
Corrosion-resistant anodized aluminium alloy frame with frosted privacy tempered glass tailored for wet environments.
Executive Procurement Whitepaper: Sourcing Architectural Aluminium Glazed Windows
Global architectural trends in 2025 continue to place thermal efficiency, structural resilience, and spatial transparency at the forefront of building envelope designs. As residential and commercial energy mandates grow stricter worldwide—such as Europe's EPBD directive, North America's Energy Star 7.0 standards, and Australia's updated NCC 2022 thermal compliance—selecting the right aluminium glazed window manufacturer and exporter has transitioned from a routine procurement step into a critical risk-management decision for real estate developers, principal contractors, and fenestration importers.
Key Engineering Insight: Premium aluminium windows rely on structural thermal isolation. Standard extruded aluminum exhibits a high thermal conductivity rate of approximately $160\text{ W/m}\cdot\text{K}$. High-grade systems utilize extruded Polyamide (PA66 GF25) thermal break strips with a conductivity of just $0.3\text{ W/m}\cdot\text{K}$, dropping total window frame U-values ($U_f$) below $1.5\text{ W/m}^2\text{K}$.
When evaluating global exporters, B2B procurement teams must audit beyond basic profile dimensions. A comprehensive assessment mandates reviewing structural aluminum alloy temper (e.g., 6063-T5 vs. 6063-T6), surface treatment thickness (qualicoat-certified powder coating $\ge 60\mu\text{m}$ or anodizing $\ge 15\mu\text{m}$), insulated glass unit (IGU) seal integrity, and hardware cycle-testing reports (EN 13126 standards).
Top 10 Global Aluminium Glazed Window Manufacturers & Exporters Matrix
Comparative technical analysis of leading international system houses and OEM export manufacturing hubs
| Manufacturer / Brand | Headquarters | Core System Specialization | Compliance Standards | Target Market & Sourcing Strengths |
|---|---|---|---|---|
| Schüco International | Germany | High-end architectural facades, passive house casement systems | CE, DIN, passive house phA+ | Luxury commercial & ultra-prime residential; high cost tier. |
| Wincraft Fenestration (Tech) | China | Thermal break sliding/casement, OEM/ODM custom villas, sunrooms | AS2047, AS1288, CE, NFRC, ISO9001 | Factory-direct wholesale, 4-week lead times, complete engineering shop drawings. |
| Reynaers Aluminium | Belgium | Minimalist ultra-slim sliding doors, curtain walls | EN 14351-1, Qualicoat, ISO14001 | European architectural design firms; mid-to-high tier project costs. |
| YKK AP Inc. | Japan / USA | Commercial structural windows, hurricane-impact fenestration | AAMA, NFRC, ASTM Impact | Commercial office towers and North American retail distribution networks. |
| Kawneer (Arconic) | USA | Storefront systems, heavy-duty commercial sliding windows | Florida Product Approval, NFRC | North American institutional, educational, and commercial developments. |
| Aluk Group | Luxembourg / Global | Residential thermal break casements, bi-fold doors | CE, BSI Kitemark, CWCT | Mid-market residential housing developments across EMEA and Asia-Pacific. |
| Fuson Window Manufacturing | China | Double/Triple glazed residential sliding & French casement windows | CE, ISO9001, AS2047 | Export focused OEM manufacturing; wide system flexibility for residential projects. |
| Derchi Windows & Doors | China | Acoustic soundproof thermal break windows, luxury villa sliding doors | CE, ISO9001, Soundproof Rw45 | Custom acoustic engineering for urban residential and hotel developments. |
| Technal (Hydro Group) | France | Low-carbon recycled aluminium window frames, curtain walls | ASI Certified, CE, Cradle to Cradle | Sustainability-focused European green building developments (LEED / BREEAM). |
| Lixil Architectural | Japan | High-tightness sliding window systems, integrated shading window units | JIS Standards, ISO9001 | Asia-Pacific high-density residential developments and modular housing. |
Engineering Technology Deep Dive: Profile Extrusion & Glazing Mechanics
1. Polyamide PA66 GF25 Thermal Break Engineering
Non-thermal break aluminum frames act as thermal bridges, transferring external cold or heat directly into interior spaces. Advanced global exporters utilize dual-extruded profile chambers joined by 25% fiberglass-reinforced Polyamide (PA66 GF25) structural strips.
- Mechanical Strength: GF25 reinforcement ensures the thermal break strip shares identical thermal expansion coefficients with raw aluminum, preventing profile shear failure under extreme temperature fluctuations (-30°C to +70°C).
- Thermal Transmittance: Reduces total frame conductivity ($U_f$) down to $1.2 - 1.8\text{ W/m}^2\text{K}$.
2. High-Performance Insulated Glass Units (IGU)
Glazing constitutes 70% to 85% of total window surface area. Information gain metrics dictate selecting double or triple pane IGUs customized with spectrally selective Low-E (Low-Emissivity) metallic coatings.
- Gas Fillings & Spacers: 90% Argon gas-filled IGUs with warm-edge composite spacers eliminate perimeter condensation and reduce radiant heat gain.
- Solar Heat Gain Coefficient (SHGC): Optimized Low-E double glazing lowers SHGC values to $0.22 - 0.35$ while maintaining visible light transmittance (VLT) above $65\%$.
Future Sourcing & Procurement Trends in Aluminium Glazed Windows
Strategic insights for buyers, wholesalers, and developers planning 2025–2030 project supply chains
1. Low-Carbon Hydro & Recycled Aluminium Sourcing
Decarbonization mandates are compelling manufacturers to adopt primary aluminum smelted using renewable hydro-power (reducing carbon footprint from $18\text{kg CO}_2/\text{kg Al}$ down to $< 4\text{kg CO}_2/\text{kg Al}$). B2B importers are increasingly requiring EPD (Environmental Product Declarations) during bid evaluations.
2. Ultra-Narrow Sightline Minimalist Architecture
Modern luxury developments demand ultra-slim frame profiles ($18\text{mm} - 25\text{mm}$ visible width) capable of carrying massive glass loads up to $500\text{kg}$ per panel. Exporters offering hidden track sub-frames and structural glass bonding are securing dominant market shares in villa procurement.
3. Smart Home & Automated Actuator Integration
Future fenestration systems seamlessly integrate motorized chain actuators, wind/rain sensors, and smart glass tinting (electrochromic technology). Exporters capable of pre-wiring internal profile channels and supplying plug-and-play smart window systems lead modern commercial procurement.
Enterprise OEM/ODM Capabilities & Quality Audit Process
How Changsha Wincraft Aluminum Window Tech Co., Ltd. ensures flawless global delivery
Direct Factory Precision Manufacturing
At Changsha Wincraft Aluminum Window Tech Co., Ltd., we combine integrated engineering, customized profile design, and state-of-the-art CNC processing. Operating from a modern 20,000+ m² facility, our factory provides direct B2B supply for global importers, distributors, real estate contractors, and architectural firms in over 80 countries.
By eliminating intermediary brokers, we provide transparent cost structures, exact quality control, and direct technical alignment between your architectural elevation drawings and factory extrusion dies.
Fast-Track Engineering Turnaround: Send us your architectural drawings or schedules, and our engineering office will deliver shop drawings, system recommendations, and 3D renderings within 24 hours.
Strict 6-Stage Export Quality Control
- 01. Raw Material Inspection: Spectrometric verification of 6063-T5/T6 aluminum alloy chemical composition.
- 02. Anodizing & Powder Coating Audit: Dry film thickness gauge testing ($\ge 60\mu\text{m}$) and cross-hatch adhesion testing.
- 03. Machining Precision: CNC corner crimping and lock-gear pocket milling within $\pm 0.2\text{mm}$ tolerance.
- 04. IGU Seal Integrity: Dew-point testing and argon gas fill percentage checks for double/triple glass units.
- 05. Air/Water/Wind Testing: Rigorous mock-up chamber testing to verify AS2047 and CE wind load ratings.
- 06. Heavy Export Packaging: Fumigated plywood crates with foam corner protectors and moisture-proof plastic wrap.
Frequently Asked Procurement Questions (FAQ)
Direct answers from our senior fenestration engineers regarding technical compliance, lead times, and global shipping
Do you accept OEM and ODM orders for aluminum doors and windows?
+
Yes. We fully support comprehensive OEM and ODM cooperation models. We routinely manufacture private-label window lines for regional brands, extrude custom profile sections based on buyer CAD drawings, apply bespoke powder-coating colors (RAL / Dulux color matching), and package products under customized distributor branding.
What is the standard production lead time for customized export orders?
+
Standard customized residential and commercial orders are manufactured within approximately 4 weeks (28 calendar days) following shop drawing approval and deposit receipt. For large-scale multi-story commercial or villa developments, production is batch-scheduled in sync with your site construction and installation timetable.
Can your engineering team deliver design proposals and drawings before production?
+
Absolutely. Our internal structural design office works directly with architects, main contractors, and project developers. We supply initial structural feasibility advice, elevation renderings, and glass calculation sheets within 24 hours. Once confirmed, we provide complete, dimensioned CAD/BIM shop drawings for final sign-off before raw material cutting starts.
How are aluminum glazed windows packaged and shipped to overseas buyers?
+
Export shipments receive multi-layer protective packaging: primary profile film wrap, shock-absorbing protective foam corners, sealed shrink wrap, and steel-banded fully enclosed fumigated plywood crates. We handle complete export logistics including FOB, CIF, or DDP (Door-to-Door Delivered Duty Paid) shipping, customs declaration, and real-time container tracking.
How do you guarantee windows will pass local building code requirements in my country?
+
Simply provide us with your target design wind pressures (e.g., AS4055 wind ratings N1-N6/C1-C4 in Australia, or Florida building code DP ratings), energy U-factor limits, and acoustic requirements. Our engineers configure the exact profile wall thickness, glass interlayer specs (PVB/SGP), and hardware locking points required to pass NFRC, AS2047, or CE certification checks.
What is the difference between non-thermal break and thermal break windows?
+
Non-thermal break aluminum frames consist of continuous metal extrusions that readily conduct heat and cold between inside and outside. Thermal break windows feature a split profile joined by a low-conductive polyamide strip (PA66 GF25). This barrier blocks conductive heat flow, dramatically lowers HVAC energy consumption, and eliminates interior frame condensation during winter.
Ready to Request an Engineering Quote & Specification Package?
Send your project schedule, window drawings, or custom OEM inquiry directly to our engineering team. We will review your specifications and provide a competitive factory-direct quote within 24 hours.
