Architectural Fire Safety Architecture
The Strategic Evolution of Aluminium Alloy Fire Doors in Modern Commercial Buildings
In high-density commercial, hospitality, and luxury multi-family construction, internal fire doors play a critical role in structural passive fire protection (PFP). Modern architectural standards require fenestration systems that deliver uncompromised fire compartmentalization, elevated acoustic attenuation, and modern minimal aesthetics. Traditional heavy steel fire doors and timber assemblies are increasingly replaced by engineered multi-chamber aluminium internal fire doors due to superior strength-to-weight ratios, corrosion resistance, and sleek design integration.
20+
Years Manufacturing Mastery
20,000㎡
Intelligent Production Facility
80+
Countries Exported Worldwide
120 Min
Max Certified Fire Rating
Direct Factory Catalog

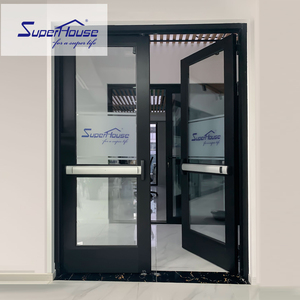

High-Performance Certified Aluminium Internal Fire Doors
Explore our certified interior fire prevention doors engineered with intumescent swelling core technology, thermal break aluminium profiles, and high-impact acoustic glazing.
Engineering Whitepaper Analysis
Material Science: How Aluminium Alloy Fire Doors Achieve Structural Integrity
A common misconception in structural engineering is that aluminium—having a lower melting point (~660°C) than structural carbon steel (~1500°C)—cannot achieve 60-minute or 120-minute fire resistance ratings. Modern metallurgical processing, combined with engineered internal core composites, completely disproves this premise.
1. Multi-Chamber Thermal Profile Insulation
Industrial aluminium fire frames utilize 6063-T5 or 6063-T6 architectural grade extruded profiles engineered with multi-chamber cavities. These internal chambers are reinforced with high-density ceramic fiber boards (silica-alumina matrices) and calcium silicate insulations that absorb radiant heat, preventing rapid frame deformation under extreme thermal stress.
2. Intumescent Seal Expansion Technology
Under fire exposure reaching 180°C, high-grade intumescent perimeter seals embedded in the frame perimeter expand rapidly up to 25 times their original volume. This action creates a non-combustible, airtight carbonaceous barrier that seals the perimeter clearance gap between leaf and frame, effectively blocking smoke, toxic gas, and direct flame penetration.
3. Nano-Gel Intumescent Fire Glass
Internal aluminium fire doors incorporate clear ceramic or laminated fire glass containing transparent nano-gel interlayers. When exposed to heat, the gel reacts by foaming into an opaque, insulating heat shield that reduces radiant heat transmission across the glass pane to compliant safe limits defined by EN 1634 (EI Ratings).
Regulatory Compliance Framework
Global Internal Fire Door Testing & Certification Standards
B2B procurement teams must carefully align factory supply with regional building safety codes. Below is an engineering comparison matrix for major global fire resistance testing protocols.
| Standard Code | Geographic Region | Core Criteria Tested | Fire Duration Class | Critical Compliance Requirement |
|---|---|---|---|---|
| UL 10C / NFPA 252 | North America (USA/Canada) | Positive Pressure Fire Test & Hose Stream Structural Impact | 20, 45, 60, 90, 180 Mins | Frame must withstand high-pressure water hose stream blast after fire burn without structural latch failure. |
| EN 1634-1 / EN 13501-2 | European Union & UK (CE/UKCA) | E (Integrity) & I (Insulation) Temperature Thermal Rise Parameters | EI 30, EI 60, EI 90, EI 120 | Unexposed surface temperature rise cannot exceed 140°C average above ambient during the test period. |
| BS 476 Part 22 | UK, Middle East, Commonwealth | Structural Stability, Integrity, and Insulation Thermal Containment | FD30, FD60, FD90, FD120 | Requires verified intumescent seal performance and certified panic hardware integration. |
| AS 1530.4 | Australia / New Zealand | FRL (Fire Resistance Level) Structural / Integrity / Insulation | -/30/30 up to -/120/120 | Simultaneous air leakage testing (AS 1530.7) required for smoke containment doors (S-Label). |
Strategic Sourcing Strategy
How to Evaluate Top 10 Aluminium Internal Fire Doors Suppliers
When selecting a Tier-1 fire door factory in China or globally, procurement executives must look beyond initial unit pricing. Fire safety components carry extreme legal and operational liability. Evaluate suppliers across these four key pillars:
1. Lab Certification & Traceability
Verify third-party fire test reports from accredited institutions (Intertek, UL, SGS, TUV). Ensure factory batch certificates track raw aluminium alloy composition and fire glass batch origins.
2. Precision Customization (OEM/ODM)
Leading factories must provide 24-hour CAD shop drawing turnarounds, custom frame dimensions, flush-mount concealed hinges, drop-down smoke seals, and architectural wood-grain anodized finishes.
3. Hardware Integration & Security
Fire doors require rated access hardware: heavy-duty door closers, magnetic hold-open locks linked to building fire alarms, and panic exit push bars tested to 500,000 operational cycles.
4. Export Packaging & Logistics
Glass fire assemblies are prone to transport damage. Look for factories offering reinforced IPX5 waterproof wooden crate packaging, steel frame corner guards, and complete export customs clearance support.
Industry Foresight & Innovation
Next-Generation Trends in Internal Aluminium Fire Fenestration
The global interior fire door industry is rapidly transforming driven by smart building automation, ultra-narrow sightlines, and aggressive carbon reduction mandates.
Minimalist Ultra-Slim Frame Profiles
Architects are demanding minimal visible aluminum sightlines (<30mm visible frame thickness) without sacrificing structural fire integrity. Advances in high-strength 6063-T6 alloy extrusion technology allow slimmer profiles to hold heavy multi-layer intumescent fire glass panels seamlessly in interior hotel corridors and corporate headquarters.
Smart IoT & Building Alarm Integration
Future-ready fire doors are equipped with hidden electric strike locks, status sensors, and automated drop seals that interface directly with centralized Building Management Systems (BMS). Upon smoke detector activation, doors automatically release from hold-open magnets and seal instantly to restrict smoke migration.
Zero-Carbon Recycled Aluminum & EPD Certification
Global architectural specifications now prioritize products backed by Environmental Product Declarations (EPD). Leading manufacturers are transitioning to low-carbon primary aluminum billet produced via hydroelectric power, achieving up to 70% lower lifecycle carbon emissions for LEED and BREEAM certified projects.
Direct Manufacturer Capabilities
Why Partner with Changsha Wincraft Aluminum Tech Co., Ltd.
As a leading integrated fenestration manufacturer based in China, Changsha Wincraft Aluminum Window Tech Co., Ltd. specializes in custom aluminum doors, windows, sunrooms, and fire-rated door systems for global B2B procurement buyers.
With a modern production base exceeding 20,000 square meters and over 20 years of manufacturing excellence, Wincraft combines cutting-edge CNC machining centers, automated assembly lines, and rigorous quality control protocols to serve clients across 80+ countries.
- 24-Hour Renderings: Rapid engineering CAD shop drawings and design proposals.
- 4-Week Production Cycle: Reliable standard order lead time with batch scheduling for major projects.
- Comprehensive OEM/ODM Support: Private labeling, custom hardware matching, and bespoke profile extrusions.
Frequently Asked Questions
B2B Fire Door Procurement FAQ
Direct technical answers to help contractors, architects, and procurement officers streamline project execution.
What is the key difference between E Rating and EI Rating in fire-rated aluminum doors?
E Rating (Integrity) indicates the door leaf and frame's ability to remain physically intact and prevent flame or hot gas pass-through during a fire. EI Rating (Integrity + Insulation) means the door also restricts thermal conduction, preventing the unexposed door surface from heating up (typically kept below a 140°C average rise). Commercial internal escape routes almost always require full EI certified door assemblies.
Do you accept OEM and ODM customized orders for specific project architectural drawings?
Yes. We support full OEM and ODM cooperation models. Our engineering department can review your project's BIM or CAD specifications, produce shop drawings within 24 hours, and customize profile anodizing colors, glazing thickness, hardware cutouts, and specialized structural frames accordingly.
What is the standard production lead time for customized bulk orders?
Standard customized fire door orders are typically produced and quality-checked within approximately 4 weeks following final shop drawing approval. Large-scale multi-building developments can be scheduled in staged batch deliveries according to your site installation timeline.
How do automatic drop-down bottom seals work on acoustic and fire doors?
Automatic drop-down bottom seals are concealed inside the bottom aluminum rail. When the door closes, a plunger pin contacts the frame hinge side, triggering an internal spring mechanism that drops a heavy-duty silicone seal flush against the floor threshold. This seals out smoke, drafts, and sound up to STC 42dB without requiring a raised floor step.
Can aluminum glass fire doors meet local building codes in Europe and North America?
Yes. Simply share your local building energy codes, wind load parameters, and required fire certification standard (such as UL 10C, BS 476, or EN 1634-1). Our engineering team will match the exact profile alloy grade, intumescent core composite, hardware rating, and glass build-up to ensure 100% code compliance prior to manufacturing.
Ready to Source High-Performance Aluminium Fire Doors Direct from Factory?
Connect directly with our engineering team to request detailed technical datasheets, full product catalogs, CAD shop drawings, and competitive project quotes.
