Engineered for commercial façades, residential patios, and coastal villas. Fully customizable extrusions meeting AS2047, NFRC, and CE benchmarks.

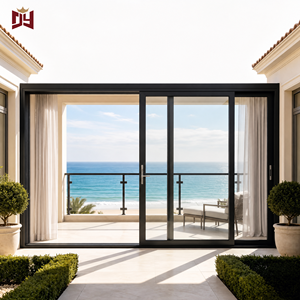

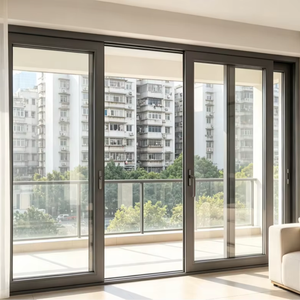

Heavy-duty lift and slide system designed for villa courtyards and high-load commercial openings. Features EPDM compression sealing.
Certified stacker doors engineered for expansive openings with integrated stainless steel insect security mesh.

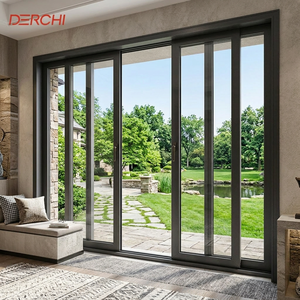

Multi-panel impact-resistant sliding door structure certified for high-velocity hurricane zones and extreme weather.
Precision-engineered architectural sliding systems offering thermal insulation, seamless threshold transitions, and smooth operation.

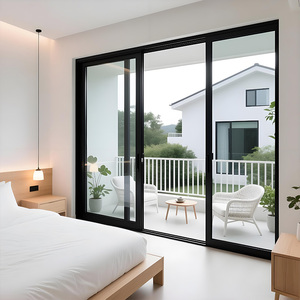

Versatile energy-saving double sliding glass doors configured for apartments, supermarkets, and modern residential balconies.

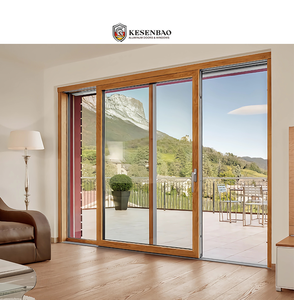

Combines natural wood aesthetics with durable structural aluminium extrusions and thermal insulation technology.

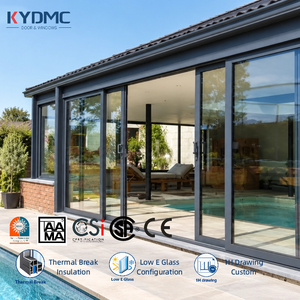

High-clarity double glass entry doors built to deliver acoustic dampening and weather-tight courtyard enclosures.

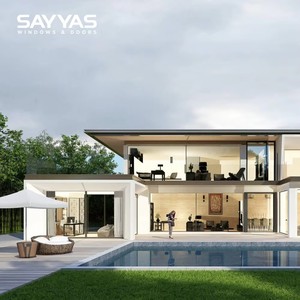

Slim-frame minimalist aesthetic engineered with high-strength extrusions for unobstructed residential and commercial views.
Evaluating supplier capability requires hard production metrics. Here is how modern Chinese fenestration leaders back up global supply contracts.
A comprehensive evaluation of structural metallurgy, thermal-break mechanics, water-tightness engineering, and supplier audit criteria for B2B buyers.
When evaluating a China aluminium double sliding doors factory, structural integrity begins with the raw aluminium billet composition. Premium Chinese manufacturers utilize primary 6063-T6 architectural aluminium alloy extrusions rather than remelted secondary scrap. 6063-T6 offers superior ultimate tensile strength (minimum 205 MPa) and yield strength (minimum 170 MPa), ensuring that large sliding panels do not suffer structural deflection under intense wind loads.
For high-rise developments or hurricane-prone coastal regions, profile wall thickness must comply with international architectural standards. While standard residential sliding doors utilize profile wall thicknesses between 1.4mm and 1.6mm, heavy-duty lift-and-slide or high-wind double sliding doors require structural extrusions ranging from 2.0mm to 3.0mm. This structural heft permits larger glass lites, supporting panel weights up to 400 kg without hardware degradation or track deformation.
Top-tier Chinese factories utilize structural PA66-GF25 (Polyamide 66 reinforced with 25% glass fiber) thermal barrier strips inserted between inner and outer extruded aluminium profiles. PA66-GF25 closely mirrors the thermal expansion coefficient of aluminium ($2.3 \times 10^{-5}/\text{K}$), preventing thermal shearing and seal separation across extreme outdoor-to-indoor temperature differentials ($\Delta T \ge 40^\circ\text{C}$).
Double sliding doors represent large thermal envelopes within residential and commercial structures. Minimizing conductive and radiative heat loss requires a holistic system design combining thermal-break profiles with multi-layer Insulated Glass Units (IGUs).
| System Configuration | Thermal Break Strip | IGU Build-up | Overall $U_{\text{factor}}$ (W/m²K) | Acoustic Rating (STC) |
|---|---|---|---|---|
| Standard Double Sliding | 14.8mm PA66 GF25 | 6mm Tempered + 12Ar + 6mm Low-E | 2.0 - 2.2 | 32 - 34 dB |
| Thermal Break Lift & Slide | 24mm - 34mm PA66 GF25 | 6mm Low-E + 16Ar + 6mm Tempered | 1.4 - 1.6 | 36 - 38 dB |
| Triple-Glazed Passive System | 39mm Multi-Cavity PA66 | 5mm Low-E + 12Ar + 5mm + 12Ar + 5mm | 1.0 - 1.2 | 40 - 42 dB |
| Hurricane-Impact Stacker | 20mm Reinforced PA66 | 6mm Low-E + 12Ar + 6mm + 1.52PVB + 6mm | 1.7 - 1.9 | 42 - 45 dB |
A common failure point in low-grade double sliding doors is water penetration through the bottom sill during driven rain. Leading China factories solve this issue by engineering stepped sub-sill drainage tracks with one-way anti-backflow gravity valves.
By isolating the inner track at a higher elevation than the exterior drainage channel, water pressure differentials are neutralized. EPDM synthetic rubber gaskets—chosen for superior ozone and UV resistance over cheap PVC seals—are co-extruded onto interlock joints to create continuous air and water barriers tested up to 600 Pa of water pressure (equivalent to severe storm conditions).
Key technological shifts shaping global B2B procurement over the next decade. Buyers adopting these innovations gain decisive market differentiation.
Demand is shifting rapidly toward ultra-narrow vertical interlocks ($16\text{mm} - 22\text{mm}$) with outer frames fully concealed within wall reveals. These minimalist systems maximize natural daylight while maintaining high moment-of-inertia values via steel-reinforced internal mullions.
Automated sliding doors with concealed heavy-duty linear actuators, pinch-protection optical sensors, and KNX / Zigbee smart home connectivity are becoming standard in modern luxury residences and hospitality suites.
Integration of semi-transparent solar photovoltaic glass into fixed transoms and non-active sliding panels allow sliding door envelopes to generate green electricity, aiding net-zero carbon building certifications (LEED / BREEAM).
Global buyers increasingly require Environmental Product Declarations (EPDs). Top Chinese manufacturers are transitioning to hydro-powered primary aluminium smelters and recycled content billet sourcing to minimize embodied carbon.
Adoption of fluorocarbon (PVDF) 3-coat finishes meeting AAMA 2605 specifications guarantees color retention and salt-spray resistance (> 4,000 hours) for coastal deployments in tropical and desert coastal microclimates.
How international contractors, importers, and architects evaluate prospective Chinese OEM suppliers to mitigate project risk.
Changsha Wincraft Aluminum Window Tech Co., Ltd. serves as an integrated building-materials manufacturer specializing in OEM/ODM customized aluminium doors, windows, sunrooms, and pavilions for B2B buyers across 80+ countries.
Direct answers to commercial, technical, and logistics queries encountered when sourcing double sliding doors from China.
Connect directly with our engineering team for technical drawing reviews, architectural consultations, factory audit reports, and direct FOB/DDP wholesale quotes within 24 hours.
