Fire & Security
Aluminum Entrance Door Fire Rated Security Door Exterior Front Door
- Fire-rated high thermal break frame
- Multi-point anti-pry stainless locking
- Commercial building exterior grade
Factory Direct Catalog
High-Performance Aluminum Doors & Windows Solutions
Engineered for Commercial, High-End Residential, and Extreme Weather Architectural Applications
Storefront

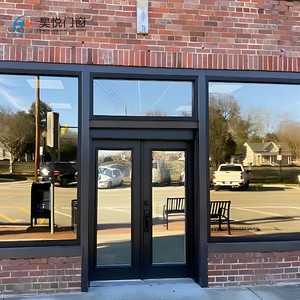

Custom Design Glass Commercial Entry Door Store Front Tempered Glass Door
- Continuous heavy-duty aluminum hinges
- Clear double tempered insulated glass
- Custom anodized/powder coated finish
Hurricane Proof

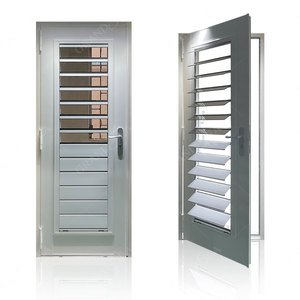

Half Aluminum Half Glass Hurricane Proof Stained Glass Louver Swing Door
- Impact-resistant structural reinforcement
- Integrated ventilation louver system
- Engineered for Caribbean & Coastal zones
Soundproof
Soundproof Frameless Double Glass Aluminum Interior & Exterior French Door
- STC rating up to 42dB acoustic damping
- Double layer tempered acoustic glass
- Slim profile modern architectural aesthetic
Residential
ZEKIN Aluminum Casement Windows Double Glazed Glass for House Projects
- Low-E insulated argon-filled glass unit
- German EPDM multi-seal weatherstripping
- Integrated stainless security mesh screen
Bi-Folding
Modern Exterior Vertical Bi-Folding Aluminum Alloy Thermal Break Window
- Heavy-duty concealed stainless track rollers
- High thermal performance powder coating
- Space-saving vertical folding design
Solid Wood Hybrid
Australian Design Log Color Termite Resistant Solid Wood Exterior Main Door
- Termite-resistant treated timber core
- Aluminum reinforced protective frame
- Natural log color UV protective coating
NFRC Certified
Commercial Storefront NFRC Soundproof Waterproof Aluminum Glass Swing Door
- NFRC thermal certification compliant
- Severe wind-driven rain water barrier
- Heavy commercial traffic design
20+
Years Manufacturing Mastery
20,000㎡
Digital Extrusion Plant
80+
Export Destination Markets
24 Hours
CAD/BIM Drawing Turnaround
Engineering White Paper
Architectural Sourcing & Material Analysis: China Aluminium Mesh Main Doors
An authoritative technical evaluation of structural extrusions, security mesh metallurgy, anti-corrosion chemistry, and hardware engineering for international B2B buyers.
In modern architectural design and residential security engineering, the entrance door serves as the primary defense barrier against forced entry, environmental intrusion, and thermal loss. Over the past decade, Aluminium Mesh Doors for Main Doors engineered in China have evolved from simple insect barriers into sophisticated structural security apparatuses. Integrating heavy-duty 6063-T5/T6 structural aluminum profile frames with high-tensile AISI 304 or 316 marine-grade stainless steel woven wire mesh, these systems offer an unprecedented combination of high-impact physical protection, natural ventilation, optical transparency, and solar heat control.
1. Metallurgical & Structural Profile Selection: 6063-T5 vs. Stainless Steel Mesh Matrix
The structural integrity of a main entrance security door depends on the interaction between its surrounding aluminum profile chassis and the internal mesh matrix. Leading Chinese manufacturers utilize precision-extruded aluminum alloys subjected to strict artificial aging (T5 or T6 temper designations).
| Component / Parameter | Standard Commercial Specification | Heavy-Duty Architectural Security Grade | Engineering Benefit |
|---|---|---|---|
| Profile Alloy & Temper | 6063-T5 Aluminum Extrusion | 6063-T6 / High-Toughness Thermal Break | Optimized tensile yield strength (>210 MPa) preventing frame deformation under forced leverage. |
| Wall Thickness | 1.4mm – 1.8mm | 2.0mm – 3.0mm Reinforced Cavity | Supports heavy multi-lock hardware and resists high wind-load deflection in coastal regions. |
| Security Mesh Wire Alloy | AISI 201 / 304 Stainless Steel | AISI 316 Marine-Grade Stainless Steel | Extreme corrosion resistance in salt-spray environments; high shear resistance against knives/cutters. |
| Mesh Wire Diameter & Weave | 0.6mm Wire / 14 Mesh Count | 0.8mm – 1.0mm Wire / 11–12 Mesh Plain Weave | Passes international knife shear tests (AS5041) and dynamic impact tests (AS5039). |
| Powder Coating Standard | Standard Decorative Powder (60µm) | AkzoNobel / Interpon AAMA 2604/2605 Fluorocarbon | Resists color fading, chalking, and salt corrosion for 15+ years under severe UV exposure. |
2. Advanced Security Mechanisms & Hardware System Integration
A primary main door security mesh system is only as strong as its locking points and frame anchorages. Advanced Chinese manufacturers incorporate German-engineered hardware or heavy-duty proprietary multi-point gearboxes. Unlike traditional deadbolts that secure a door at a single point, multi-point locking systems engage the door leaf into the outer jamb at 3, 5, or 7 independent locking nodes simultaneously via top, side, and bottom shoot-bolts.
Furthermore, the fixation of the stainless steel security mesh inside the aluminum extrusion uses pneumatic wedge clamping tech combined with anti-pry aluminum retention beads. This ensures that even under severe sledgehammer impact or hydraulic jacking attempts, the screen cannot be dislodged or kicked out of its frame tracks.
3. Thermal Insulation, Acoustic Damping, and Ventilation Optimization
Modern building codes (such as Australia's NCC, North America's IECC, and EU Energy Directives) demand strict compliance with thermal transmittance standards (U-values). By combining Thermal Break Aluminum Frames featuring Polyamide (PA66 GF25) insulation strips with double-glazed glass units and integrated mesh panels, high-end Chinese security doors achieve structural sound reduction (STC up to 42 dB) while maintaining controlled passive cooling via high air-permeability ratios.
Knife-Shear & Impact Resistance
High-tensile 0.8mm-1.0mm 316 stainless steel wire mesh resists manual knife shear tests (AS5041) and heavy mechanical impact, ensuring your main entrance remains impervious to intruders.
Corrosion & UV Endurance
Treated with thermosetting fluorocarbon coatings conforming to AAMA 2605 standards, surviving 3,000+ hours of continuous salt-spray chamber testing without oxidation.
High Optical Clarity & Airflow
Engineered wire pitch maintains over 65% clear visual aperture, granting unobstructed exterior views while providing continuous natural air movement through interior spaces.
Strategic Sourcing Guide
How to Audit & Select Top China Aluminium Mesh Door Suppliers
Essential Criteria for Sourcing Directors, Wholesale Distributors, and Commercial Construction Buyers
Evaluating OEM/ODM partners in China requires looking beyond base factory price quotes. To guarantee long-term performance and minimize warranty liabilities, structural buyers must benchmark suppliers across five critical operational metrics:
1. Extrusion & Anodizing Infrastructure
Verify whether the factory operates internal extrusion presses and vertical electrostatic powder coating lines, or outsources to third-party processors. In-house extrusion guarantees precise alloy control (6063-T5) and dimensional tolerance consistency across large batch orders.
2. Testing & Compliance Certification
Ensure the manufacturer maintains certified test reports from international laboratories (Intertek, SGS, NFRC, TUV). Key test standards include wind pressure (ASTM E330), water penetration (ASTM E331), acoustic insulation (ISO 10140), and Australian security screen standards (AS5039/AS5041).
Changsha Wincraft Manufacturing Authority
ISO 9001 Certified
OEM/ODM Specialist
Why Global Buyers Choose Changsha Wincraft Aluminum Window Tech
As an integrated building materials manufacturer with over 20 years of technical expertise and a 20,000㎡ digital manufacturing facility, Changsha Wincraft delivers custom aluminum doors, windows, sunrooms, and security mesh systems to buyers in over 80 countries. By controlling the complete manufacturing value chain—from structural profile design and shop drawing engineering to automatic precision cutting, hardware machining, and final export packing—Wincraft eliminates middleman margins and guarantees project-level compliance.
Send an Inquiry
⚡ 24-Hour Design Renderings & 4-Week Lead Time Guaranteed
Industry Horizon
Future Sourcing & Technology Trends in Aluminium Mesh Doors
Anticipating Market Shift toward Smart Access, Invisible Frames, and Sustainable Extrusions
Smart Home Biometric Integration
Future main doors seamlessly embed biometric 3D facial recognition, hidden fingerprint sensors, and encrypted smart locks into aluminum stiles, allowing keyless entry while maintaining structural mesh security.
Minimalist Ultra-Narrow Sightlines
Architectural demand is shifting toward ultra-slim profile sightlines (under 18mm visible frame). High-strength 6063-T6 extrusions allow maximal glass and mesh area without compromising door stability.
Recyclability & Low-Carbon Aluminum
Global developers favor suppliers utilizing certified low-carbon recycled aluminum billets smelted using renewable hydropower, significantly lowering the embodied carbon footprint of building envelopes.
Expert Procurement FAQ
Frequently Asked Questions by International Buyers
Clear, Engineering-Grounded Answers to Help You Plan Your OEM/ODM Sourcing Orders
What is the difference between 304 and 316 stainless steel security mesh for main doors?
Grade 304 stainless steel contains 18% chromium and 8% nickel, providing robust protection for inland and urban environments. Grade 316 stainless steel includes an addition of 2-3% molybdenum, which drastically improves resistance to chloride pitting and marine salt spray. For coastal projects within 5 km of the ocean, 316 grade mesh paired with fluorocarbon-coated aluminum frames is strongly recommended.
Do you support full OEM/ODM private labeling and custom drawing development?
Yes. We provide complete OEM and ODM customization. Our engineering team can develop custom extrusions, profile molds, hardware integration, and packaging according to your technical CAD/BIM specifications. Detailed shop drawings and 3D architectural renderings are provided within 24 hours of project review.
What is the standard production lead time for customized door and window orders?
Standard customized production typically requires approximately 4 weeks following final shop drawing sign-off and color sample approval. For large commercial or multi-unit residential projects, phased container delivery schedules can be arranged in alignment with your site installation timeline.
How do aluminum mesh doors handle high wind loads and severe storms?
Our heavy-duty aluminum mesh door systems are structurally reinforced with wall thicknesses up to 3.0mm and incorporate corner-crimped mechanical joints with steel corner cleats. Engineered for wind load pressures exceeding 3,000 Pa (equivalent to Category 4 hurricanes), they are widely deployed across tropical and storm-prone coastal regions.
How are product quality and surface finish protected during export transit?
All door leaves and frames undergo a 4-layer export protective packing process: 1) Protective anti-scratch film on aluminum profiles, 2) Shock-absorbing EPE foam wrapping, 3) Heavy-duty corrugated cardboard corner protectors, and 4) Fully enclosed fumigated plywood crates or steel-framed pallets for safe container loading and unloading.
Can your door and window systems satisfy local building energy codes in my country?
Yes. Share your regional energy requirements (U-factor, SHGC, STC ratings) and local building codes with our technical team. We will configure thermal-break extrusion depth, glass build-ups (such as Low-E argon-filled units), and weatherstripping configurations to ensure full compliance before production starts.
Ready to Request a Custom Technical Quotation or Sample Pack?
Connect directly with our senior fenestration engineers to discuss your CAD drawings, profile specifications, hardware options, and project delivery schedules.
