Architectural Grade Aluminum Sliding Doors & Windows Manufacturing Excellence
In modern commercial and high-end residential architecture, selecting the right aluminum sliding doors and windows manufacturer is paramount to balancing structural integrity, thermal efficiency, acoustic isolation, and long-term weather resistance. As global building energy codes tighten—such as IECC 2024, EU EPBD, and Australia NCC 2022—procurement teams, architects, and real estate developers require verifiable engineering precision, certified alloy standards (6063-T5/T6), and advanced thermal break technology.
Engineered Fenestration Showcase
Explore our top certified aluminum windows, sliding door profiles, louver protection systems, and heavy-duty entry solutions engineered for international building compliance.
Super Insulation Custom Soundproof Passive House Windows Double Glazed Aluminum Casement Windows
Ultra-low U-value thermal break system designed with multi-chamber PA66-GF25 polyamides, sound-dampening EPDM seals, and triple/double glazed Low-E Argon units for extreme soundproofing and climate control.
Aluminum Alloy Horizontal Louver Windows Modern Design Outdoor Air Ventilation & Shutter Protection
Heavy-duty exterior architectural aerofoil louver systems. Features adjustable blade angles (0°–90°), weather-proof PVDF powder coating, and optional motorized actuator integration for exterior sunshading.
Made To Order Insect Protection Powder Coated Finish 6063 Aluminum Custom Mosquito Mesh Door Profile
High-strength 0.8mm 304 stainless steel security mesh combined with heavy-gauge 6063-T5 aluminum framing. Provides anti-theft insect protection without obscuring outdoor architectural sightlines.
Modern Design Sliding Patio Door System Exterior Flush Aluminum Alloy Double Glazing Tempered Glass Door
Flush-threshold barrier-free architectural sliding patio door. Engineered with multi-channel concealed drainage tracks, double tempered safety glass, and heavy-load dual stainless steel roller bearings.

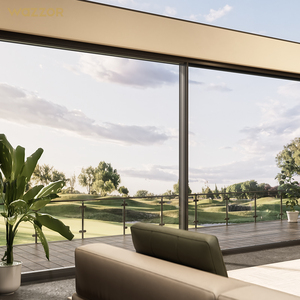

Wazzor NFRC Heavy Duty Large Double Tempered Glass Noiseless Sliding Door Balcony Patio Glass Door
NFRC-certified heavy-duty sliding glass door system capable of sash weights up to 400kg. Engineered with ultra-slim interlocks (20mm sightline) and whisper-quiet polymer dampened roller carriages.
ZEKIN Australia Project AS2047 Certified Hurricane Impact Proof Front Entry Door Glass Aluminum Sliding Door
Rigorously tested to Australian Standard AS2047 and AS1170 wind load requirements. Utilizes SGP laminated structural impact glass designed to resist severe cyclone pressures and debris impacts.

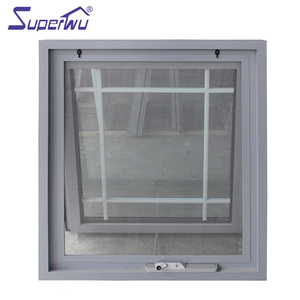

Superhouse Modern Design Grill Awning Aluminium Vertical Bathroom Outward Opening Windows AS2047
Compact outward-opening awning window system optimized for wet area ventilation and rain defence. Includes heavy-duty stainless steel friction stays, frosted privacy glass, and integrated security grills.

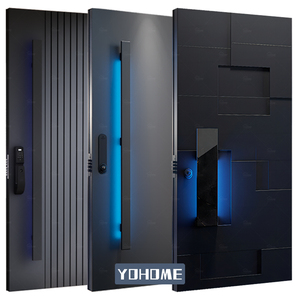

American Latest Design Custom Modern Aluminum Entrance Door Front Entry Door Pivot Door with LED Light
Grand architectural pivot entry door with heavy-duty hydraulic floor spring hinge, integrated biometric/smart keyless lock access, and ambient warm LED light strips concealed within the vertical stiles.
Future Procurement Trends in Architectural Aluminum Fenestration (2025–2030)
As commercial real estate markets prioritize decarbonization, net-zero operational targets, and resilience against severe climate events, B2B buyers must navigate evolving material specifications. Below is an engineering breakdown of the key macro trends dictating aluminum sliding door and window procurement.
1. Multi-Cavity PA66-GF25 Thermal Barriers
Legacy non-thermal aluminum frames are being phased out globally. Modern engineering mandates polyamide glass-fiber reinforced insulation strips (PA66-GF25) inserted between interior and exterior aluminum profiles. Multi-cavity barriers filled with rigid polyolefin insulation foams reduce frame U-values down to ≤ 1.0 W/m²·K, preventing thermal bridging and surface condensation in extreme environments.
2. Ultra-Slim Sightlines with 6063-T6 Alloys
Architectural design heavily favors panoramic glass expanses with minimal structural obstruction. Achieving interlock sightlines as narrow as 18mm to 25mm requires transitioning from standard T5 temper aluminum to high-tensile 6063-T6 or 6061-T6 alloys. These high-yield extrusions support heavy triple-glazed panels weighing up to 400kg without deflection.
3. Advanced Surface Coatings & Fluorocarbon (PVDF)
For coastal resorts and high-humidity urban centers, surface finish longevity is a key procurement metric. Leading exporters utilize three-coat PVDF (Polyvinylidene Fluoride) fluorocarbon spray coatings and Qualicoat Class 2 / Class 3 certified architectural powder coatings that endure over 3,000 hours of accelerated salt spray testing (ASTM B117) without chalking or peeling.
System Performance & Engineering Typology Matrix
Comparing structural performance, thermal ratings, air/water resistance, and ideal building applications across primary aluminum door and window systems.
| System Typology | Thermal U-Value (W/m²·K) | Sound Isolation (Rw) | Air Tightness (EN 12207) | Water Resistance (Pa) | Max Panel Height | Primary Application |
|---|---|---|---|---|---|---|
| Thermal Break Lift & Slide Door | 1.2 – 1.6 | 38 – 42 dB | Class 4 (600 Pa) | Class 9A (600 Pa) | up to 3,500 mm | Luxury Villas, Penthouse Balconies |
| Minimalist Slimline Sliding Door | 1.4 – 1.8 | 35 – 40 dB | Class 3 (300 Pa) | Class 7A (300 Pa) | up to 4,200 mm | Panoramic Living Rooms, Commercial Entrances |
| Passive House Tilt & Turn Window | 0.79 – 1.1 | 42 – 48 dB | Class 4 (600 Pa) | Class E1050 (1050 Pa) | up to 2,400 mm | Energy-Efficient Residential & Passive Buildings |
| Heavy Duty Pivot Entry Door | 1.6 – 2.0 | 32 – 36 dB | Class 3 (300 Pa) | Class 5A (200 Pa) | up to 3,800 mm | Grand Entryways, Luxury Facades |
| Architectural Aerofoil Louver | N/A (Solar Control) | 15 – 20 dB | Unrated Ventilation | Deflection Shield | up to 4,000 mm | Exterior Facade Sunshading & Plant Rooms |
Changsha Wincraft Aluminum Window Tech Co., Ltd.
As a leading Chinese manufacturer and direct global exporter, Wincraft operates a modernized 20,000+ square meter production base equipped with automated CNC double-head cutting saws, four-corner crimping machinery, automated structural silicone bonding lines, and rigorous internal QC testing bays.
We specialize in complete OEM and ODM fenestration solutions for importers, distributors, general contractors, and architectural firms across 80+ countries. By maintaining strict control over extrusion alloy selection, surface anodizing/powder coating thickness, double-sealed insulating glass assembly, and hardware integration (CMECH, Hoppe, Siegenia, Roto), we ensure every unit delivered matches exact project shop drawings.
24h CAD & Rendering
Fast-track 3D renderings, shop drawings, wind load calculations, and section proposals within one business day.
4-Week Production Lead
Standard custom orders produced within ~4 weeks. Staggered batch delivery for major commercial projects.
Strict Certification
Compliance engineering for AS2047 (Australia), NFRC/AAMA (USA), CE/EN 14351-1 (Europe), and ISO 9001.
Full Export Logistics
Custom fumigated wooden crate packing, moisture seals, customs clearance support, and door-to-door delivery options.
Frequently Asked Procurement Questions
Essential technical and operational insights for B2B buyers sourcing custom aluminum doors and windows directly from China manufacturers.
Ready to Elevate Your Next Project with Factory-Direct Fenestration?
Send your architectural drawings, bill of quantities (BOQ), or OEM profile specifications directly to our engineering team for immediate technical review and competitive factory pricing.
