Featured Aluminum Openable Windows & Doors Collection
Explore our factory-direct product range engineered for European building codes, featuring certified thermal break profiles, multi-point security locking, double/triple insulated glazing, and weather-resistant surface finishes.
20+
Years Manufacturing Experience
20,000 m²
Modernized Factory Base
80+
Global Countries Exported
24h / 4W
Design Turnaround / Lead Time
1. Executive Technical Whitepaper: Direct Sourcing of China-Manufactured Aluminum Openable Windows for the German Fenestration Market
Germany's architectural landscape is defined by stringent thermal regulations, precise engineering benchmarks, and a uncompromising demand for durable building envelopes. As the German government accelerates its decarbonization targets under the updated Gebäudeenergiegesetz (GEG 2024/2026), commercial developers, B2B window distributors, and general contractors (Bauträger) face mounting pressure to source energy-efficient fenestration systems that deliver low overall heat transfer coefficients ($U_w$) without inflating overall construction budgets.
Historically, German procurement managers relied heavily on regional European extruders. However, global supply chain optimization and advanced CNC manufacturing automated lines in China have created a high-value alternative: direct factory sourcing from specialized OEM/ODM manufacturers like Changsha Wincraft Aluminum Window Tech Co., Ltd. (Wincraft). By pairing German-engineered polyamide thermal break strip technology (such as PA66 GF25) with precision Chinese aluminum extrusion (6063-T6 alloy), Wincraft delivers openable window systems that meet or exceed European standard DIN EN 14351-1 at up to 35% reduced capital expenditure.
Thermal Insulation ($U_w \le 0.8 \text{ W/m}^2\text{K}$)
Multi-chamber thermal barrier extrusion with 34mm multi-cavity polyamide insulation strips engineered specifically to eliminate thermal bridging in severe cold climates.
Acoustic Shielding (SSK 4 / SSK 5)
Triple-sealed continuous EPDM gasketing coupled with acoustic laminated glass build-ups achieving sound reduction indices up to $R_w = 45\text{ dB}$ for dense urban centers.
Structural Wind Pressure (Klasse C5)
High-tensile structural profiles engineered to withstand design wind pressures up to 3000 Pa, compliant with DIN EN 12210 structural integrity tests.
2. Technical Standard Benchmarking: Wincraft German-Spec vs. Standard International Export Windows
For German architects and facade engineers, fenestration specification is driven by exact quantitative parameters rather than generic claims. Below is a comparative engineering breakdown illustrating how Wincraft openable aluminum tilt-and-turn windows fulfill rigorous German building standards:
| Performance Characteristic | Standard Export Aluminum Window | Wincraft German-Spec Openable System | Relevant European / DIN Standard |
|---|---|---|---|
| Thermal Transmittance ($U_w$) | $1.8 - 2.4 \text{ W/m}^2\text{K}$ (Non-break / Single break) | $0.79 - 1.1 \text{ W/m}^2\text{K}$ (Passive House / GEG Ready) | EN ISO 10077-1 / GEG 2024 |
| Thermal Strip Alloy & Cavity | 14mm - 20mm Solid PVC / Standard Nylon | 34mm Multi-Chamber PA66 GF25 + Foam Insulation | DIN 4108-4 Thermal Performance |
| Airtightness (Luftdurchlässigkeit) | Klasse 2 - Klasse 3 (300 Pa) | Klasse 4 (600 Pa High Compression Gasket) | DIN EN 12207 |
| Watertightness (Schlagregendichtheit) | Klasse 5A - 7A (300 Pa - 450 Pa) | Klasse 9A / E1050 (Unsheltered Exposure 1050 Pa) | DIN EN 12208 |
| Wind Load Resistance (Widerstandsfähigkeit) | Klasse B3 - C3 (1600 Pa) | Klasse C5 / P3 (3000 Pa Reinforced Mullions) | DIN EN 12210 |
| Hardware & Opening Mechanism | Standard Friction Hinges / Side-hung | German SIEGENIA / ROTO Tilt-and-Turn (Dreh-Kipp) | RAL-GZ 607/3 Hardware Spec |
| Glazing Pocket Depth | 24mm - 28mm Double Glazed | 44mm - 52mm Triple Glazed + Warm-Edge Spacer | DIN EN 1279 Gas-Filled IGU |
3. Localized Application Scenarios in German Urban & Regional Architecture
Different regions in Germany demand specific architectural features and structural setups due to microclimate variations, urban density noise, and local architectural heritage guidelines. Wincraft engineers work directly with German contractors to tailor openable window systems for these localized deployment scenarios:
A. Passivhaus & Low-Energy Residential Construction (Bavaria & Baden-Württemberg)

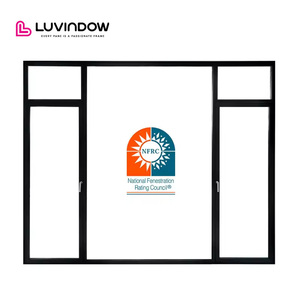

In Southern Germany, where alpine winter conditions require minimum heat loss, our triple-glazed tilt-and-turn (Dreh-Kipp) openable windows feature multi-layer Low-E coatings, argon gas injection, and warm-edge spacers (Warme Kante). The 34mm thermal break prevents frost formation and interior condensation even when exterior temperatures drop to -20°C.
B. Multi-Family Urban Infill & Apartment Retrofits (Berlin, Hamburg, Frankfurt)
Urban high-density projects require elevated acoustic insulation to protect residents from heavy street traffic and rail sound. Wincraft openable aluminum windows utilize asymmetric laminated safety glass (6mm Toughened + 1.52mm PVB + 4mm + 16Ar + 6mm Low-E) combined with concealed heavy-duty hinges, achieving noise reduction up to SSK Class 5 (45 dB).
C. Commercial Facades & Office Complexes (North Rhine-Westphalia - NRW)

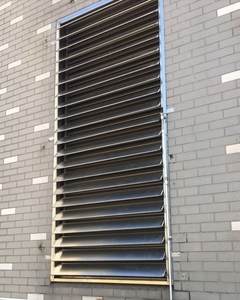

Commercial administrative buildings require motorized openable windows integrated into Building Management Systems (BMS) for natural automated night purge cooling. Wincraft supplies motorized louvered windows and integrated chain-actuator tilt casements tested to 50,000 opening cycles, engineered for corporate headquarters across Düsseldorf and Cologne.
D. Coastal & Marine Architecture (North Sea & Baltic Coast Regions)
Resort buildings on islands like Sylt or coastal cities like Rostock face relentless salt-spray exposure and severe wind loading. Wincraft applies Qualicoat Class 2 / Class 3 fluorocarbon powder coating (minimum 60-80 microns) and 316 stainless-steel hardware components, ensuring zero oxidation or pitting over decades of coastal exposure.
4. Localized Market Trends & Regulatory Drivers in Germany (2025–2030)
Navigating the German window market requires a clear understanding of shifting regulatory framework conditions and architectural preferences. B2B buyers must align their product sourcing with these macro trends to maintain a competitive advantage:
1. GEG Energy Law Tightening
The German government’s target of net-zero building emissions by 2045 has elevated maximum allowable $U$-values for renovated and new structures. Double-glazed windows are rapidly being phased out in favor of standardized 48mm triple-glazed tilt-and-turn units with warm-edge spacers.
2. Shift from U-PVC to Aluminium
While U-PVC historically dominated German residential fenestration due to low cost, modern architectural aesthetics favor ultra-slim aluminum sightlines, higher structural load capacity for floor-to-ceiling glass, and superior resistance to thermal warping under dark exterior powder coatings.
3. Circular Economy & Recyclability
German DGNB and LEED green building standards prioritize materials with low embodied carbon. Wincraft uses 100% recyclable 6063-T6 aluminum alloys and non-toxic EPDM gaskets, facilitating smooth green building certification audits for European projects.
5. Frequently Asked Questions by German Importers, Bauträger & Architects
Direct answers to crucial commercial, technical, and logistical questions concerning the importing of Chinese aluminum openable windows into the German market:
How do Wincraft openable aluminum windows satisfy German GEG (Gebäudeenergiegesetz) energy standards?
Wincraft openable window systems incorporate high-density multi-chamber PA66 GF25 polyamide thermal break bars combined with triple-pane Low-E insulated glass units (argon gas filled, warm-edge spacers). This build-up achieves certified total window thermal transmittance ($U_w$) values as low as $0.79 \text{ W/m}^2\text{K}$, well within the maximum GEG threshold of $0.95 \text{ W/m}^2\text{K}$ for major retrofits and standard new builds.
What CE documentation and test reports are provided for German customs clearance?
Every shipment exported to Germany includes complete Factory Production Control (FPC) documentation, Declaration of Performance (DoP), CE marking pursuant to EN 14351-1, and accredited laboratory test reports covering thermal transmittance (EN ISO 10077-1), air permeability (EN 12207 Class 4), watertightness (EN 12208 Class 9A), and wind load resistance (EN 12210 Class C5).
What are the mechanical structural advantages of German Dreh-Kipp (Tilt and Turn) hardware over standard casements?
The German Dreh-Kipp mechanism allows dual operation: tilting inward from the top for secure, draft-free background ventilation, or swinging inward 90° like a regular door for effortless cleaning of exterior glass surfaces. Wincraft integrates premium SIEGENIA or ROTO multi-point hardware with perimeter mushroom head locking bolts, ensuring airtight sealing and RC2 / RC3 burglar resistance.
How is sea freight shipping and customs clearance managed for container deliveries to Hamburg or Bremerhaven?
Wincraft provides flexible Incoterms including FOB China, CIF Hamburg/Bremerhaven, and full DDP (Delivered Duty Paid) to your warehouse or construction site. We utilize custom heavy-duty steel-framed wooden crates, corner protection, anti-moisture desiccant packs, and shrink-wrap film protection to guarantee zero transit damage across 30+ days at sea.
Does Wincraft accept custom OEM extrusion profile designs and private labeling for German distributors?
Yes. We specialize in OEM/ODM collaboration. Our in-house engineering team can develop custom aluminum profile dies based on your CAD drawings, print customized protective film with your corporate branding, and provide specialized hardware configurations tailored to your local market niche.
What is the standard production turnaround time for a customized container order?
Once architectural CAD shop drawings and color samples are finalized and signed off by your engineering team, standard production is completed within 4 weeks. For large multi-phase development projects, we establish batch manufacturing schedules aligned directly with your site installation timeline.
How does Wincraft ensure anti-condensation performance under severe winter freeze-thaw cycles?
Condensation occurs when the interior frame surface temperature drops below the dew point. Wincraft solves this by utilizing deep cavity thermal break profiles, insulating foam inserts inside the aluminum chambers, and warm-edge composite glass spacers instead of traditional conductive aluminum spacers, maintaining warm inner frame surface temperatures even during harsh German winters.
6. Enterprise Advantage: Why Leading Global Buyers Trust Changsha Wincraft
Changsha Wincraft Aluminum Window Tech Co., Ltd. operates an integrated modern building materials manufacturing base specializing in high-performance aluminum openable windows, doors, sunrooms, and outdoor architectural pavilions. Built on a foundation of precision engineering and rigorous quality management, Wincraft bridges the gap between cost-effective Chinese manufacturing and strict international performance standards.
20,000 m² Advanced Production Facility
Equipped with automated multi-axis CNC machining centers, precision double-head corner crimping machines, and digital glass assembly lines that maintain dimensional tolerances within $\pm 0.5\text{mm}$.
24-Hour Design & CAD Drawing Turnaround
Our dedicated facade engineering department communicates directly with architects and project managers, issuing detailed shop drawings, BIM models, and structural wind calculations within 24 hours.
Four-Stage Quality Assurance System
Every product undergoes raw profile aluminum hardness testing, thermal break strip adhesion testing, 100% water tightness spray chamber inspection, and hardware operation testing before export packaging.
End-to-End Export Logistics
From customs documentation, export compliance paperwork, real-time container GPS tracking, to final jobsite offloading support, Wincraft ensures a smooth procurement experience for European buyers.
Ready to Source High-Performance Aluminum Openable Windows for Your German Project?
Contact our senior facade engineering team today for technical CAD reviews, custom profile consultations, or instant factory-direct B2B quotations.
