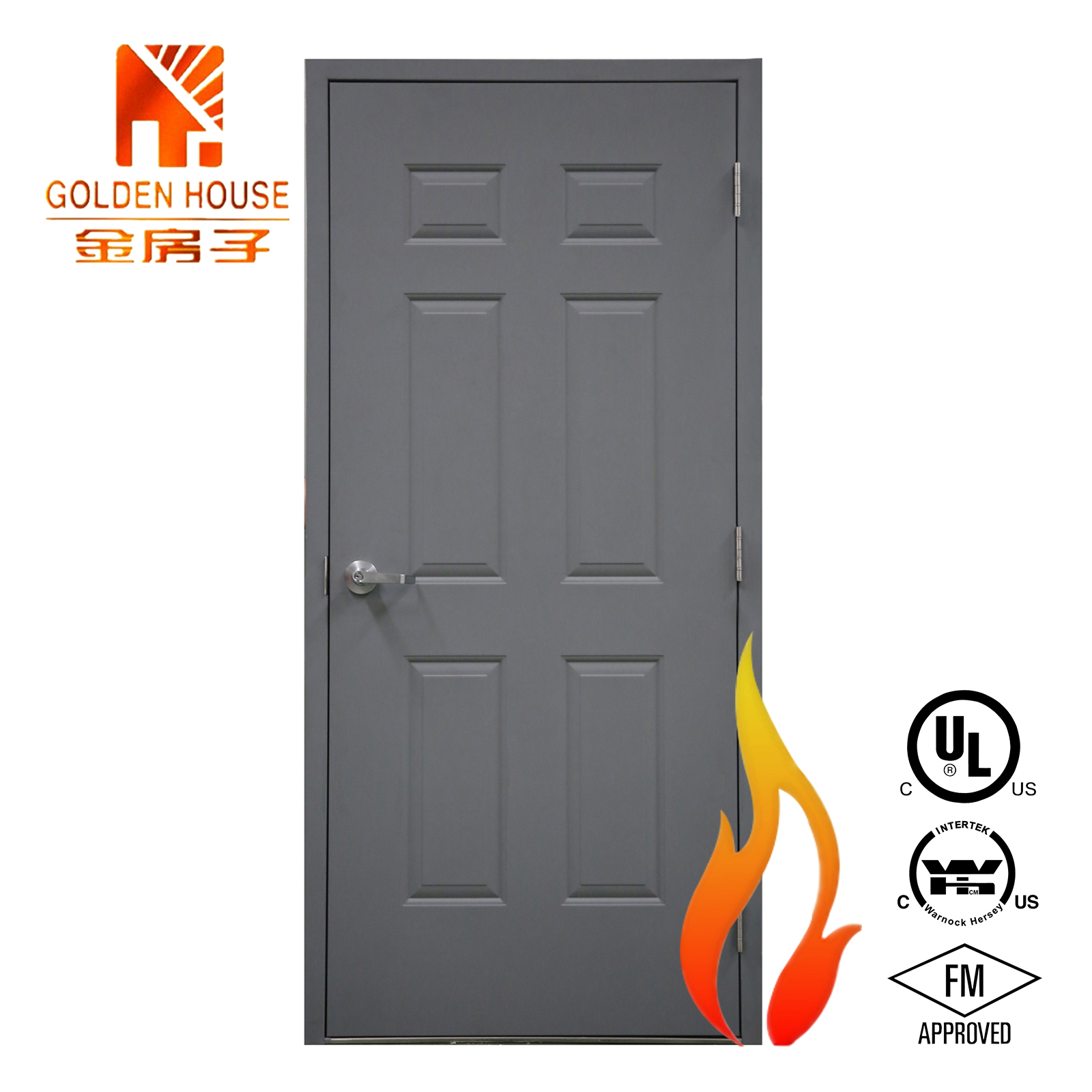

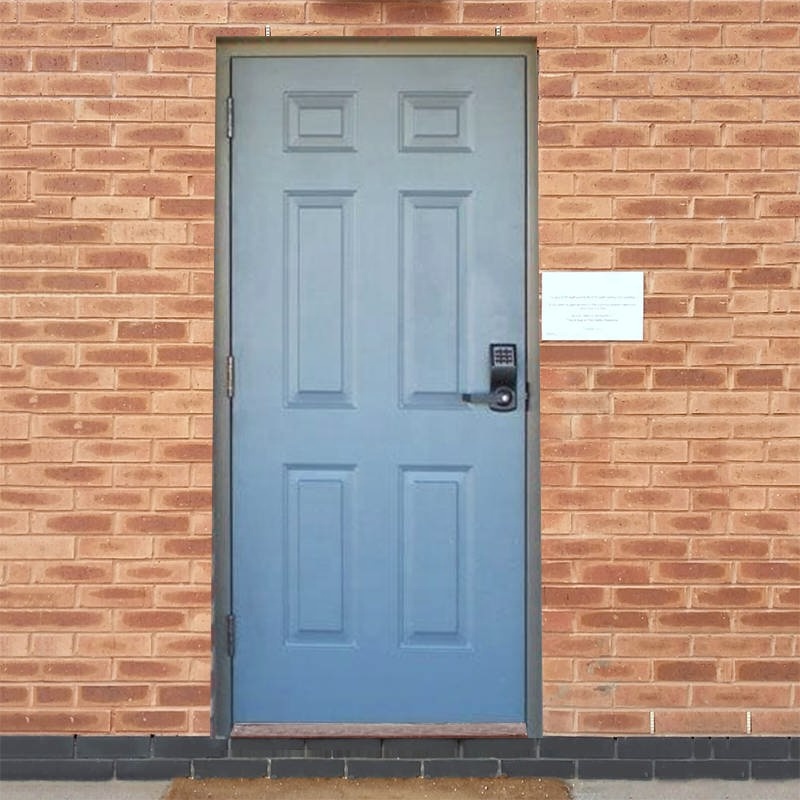

Wh Intertek 90 Mins Fireproof Steel and Glass Door 6 Panel Embossed Hollow Metal Fire Rated Commercial Hospital Modern Finished
Product Description
PRODUCT HIGHLIGHTS
- Commercial Hollow Metal Doors-Narrow vision lite-Fire Rated Commercial hollow metal doors with lite kits and glass (or narrow windows) not only provide light to a room, but can ensure more safety, too. Doors with glass window lites, provide safety for well traveled corridors hallway, allowing to see whether others are entering the room.
- Including Pre-Installed Vision Lite w/ Glass window
- Ideal for Interior and Exterior building Applications
- Fire-Rated UL wire glass Options Available
- Feature: Including self-attaching metal frame lite kits mounted with glass
- Glass types wire glass or other fire safety glass
- Lite kit order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
- 1-3/4"(44.5mm) Thickness, non-handed design with reversible hinge plates
- Factory-applied gray primer or finished painting
- Fire-rated time up to 1.5 hours with UL/WHI/FM label
SPECIFICATION DESCRIPTION
| Door material | A40 Galvanized steel or galvanealed. Heavy Duty, SDI Level 2-(1.1 mm) 18-Gauge Steel Face Sheets for doors, (1.4 mm) 16 gauge for frame-(16 Ga. 20 Ga. Available) |
| Door core | Honeycomb Core or Polystyrene Core mineral fireboard / rock wool |
| Door thickness | 1-3/4 inch (44.5 millimeters) AS standard |
| Handing | Non-Handed Design; Reversible Hinge Plates |
| Door size | Standard Widths up to 4'0" (1220 mm), Heights to 8'0" (2440 mm) for single, double will be 8'0" by 8'0" (2400 × 2400 mm), other sizes customized available |
| Edges | Square Hinge and Lock Edges (Beveled Edges Available) -Full Height, Epoxy Filled Mechanical Interlock Edges |
| Reinforcements | Heavy Gauge steel for Door Closer and Hinge, Lock Reinforcements |
| Channels | 16-Gauge Inverted Top and Bottom Channels, Optional Flush Top Cap |
| Door Finish | Gray Primer /Finish Paint/powder coating/wood grain finished |
| Standard Preps | 161 (cylindrical lock), 86 Edge (mortise lock), Deadbolt, RPD (blank edge, panic reinforced) |
| Optional Preps | Continuous Hinge Application (Undersized Width), Exit Device Trim, Louver Cutouts |
| Door Fire-Rating | Optional (with fire glass)-FM/WHI/UL up to 1.5 Fire-Rating, Positive Pressure and "S" Smoke included |
| Vision Lite Frame Construction | 18-Gauge Steel |
| Vision Lite Frame Fire-Rating | 1.5 Hour-Tested and Listed for UL |
| Vision Size | 5"× 20" regularly, or customized |
| Glass Types | 6.8 mm Fire-Rated Wire glass |

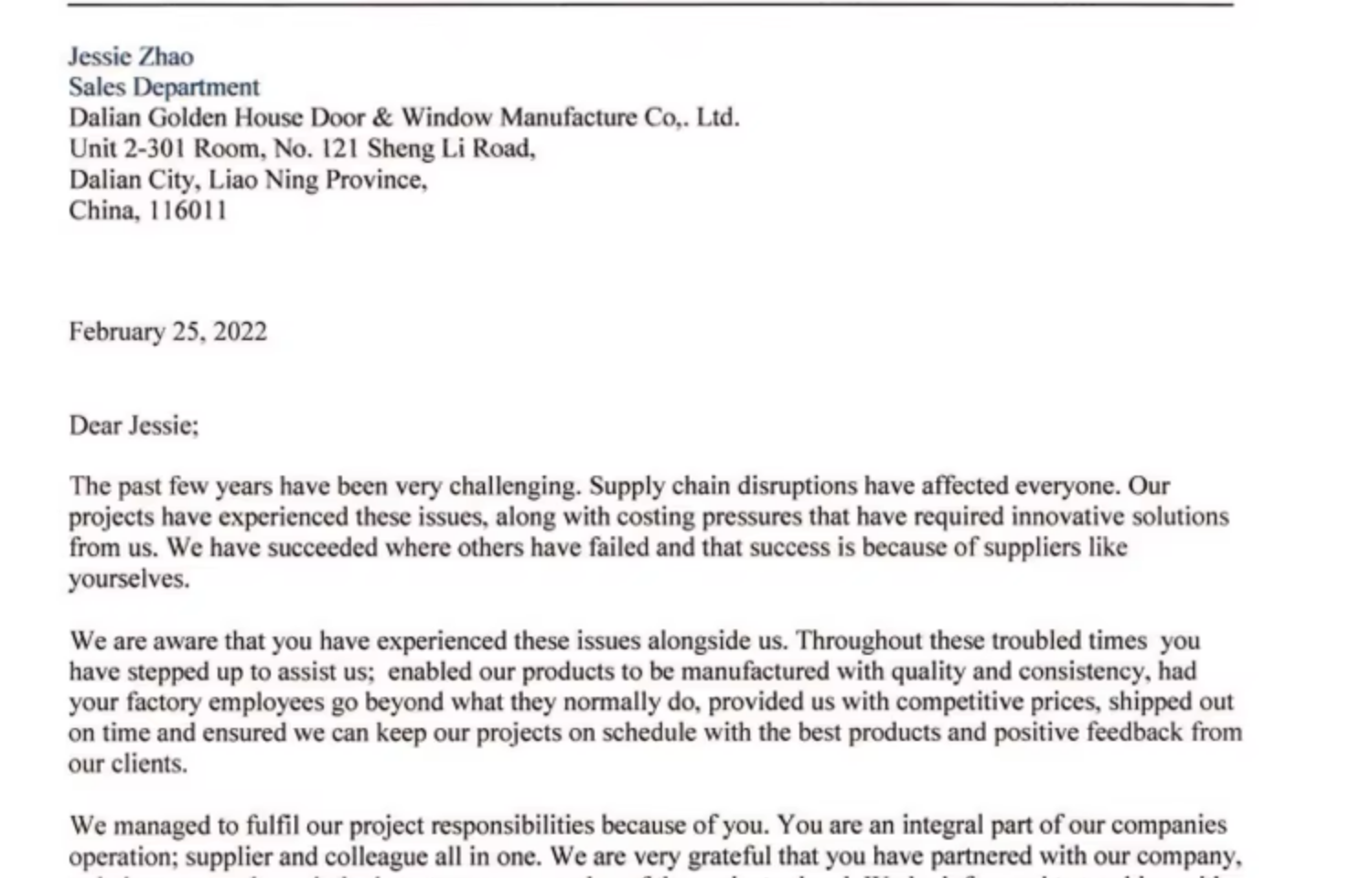

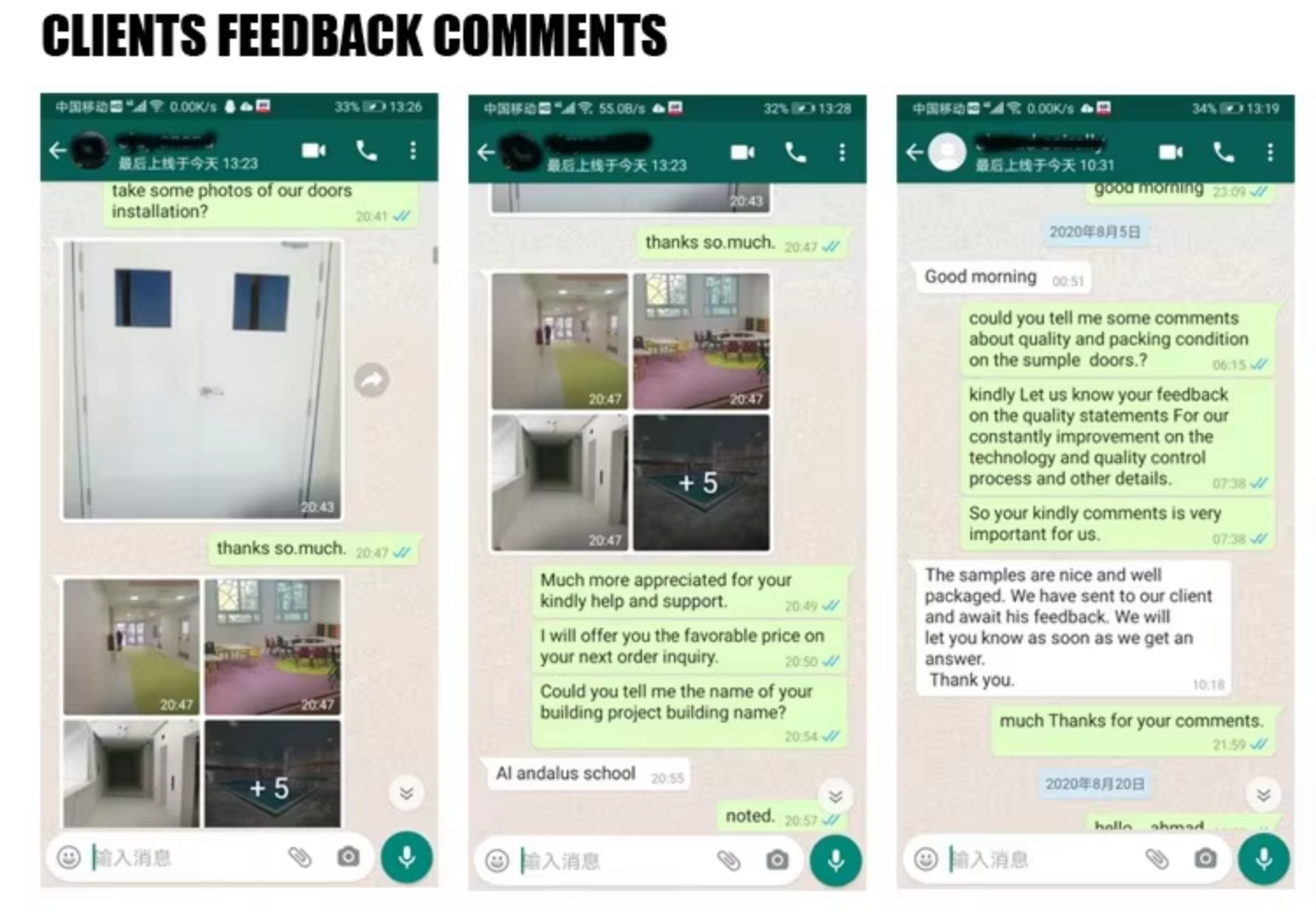

CLIENTS FEEDBACK COMMENTS

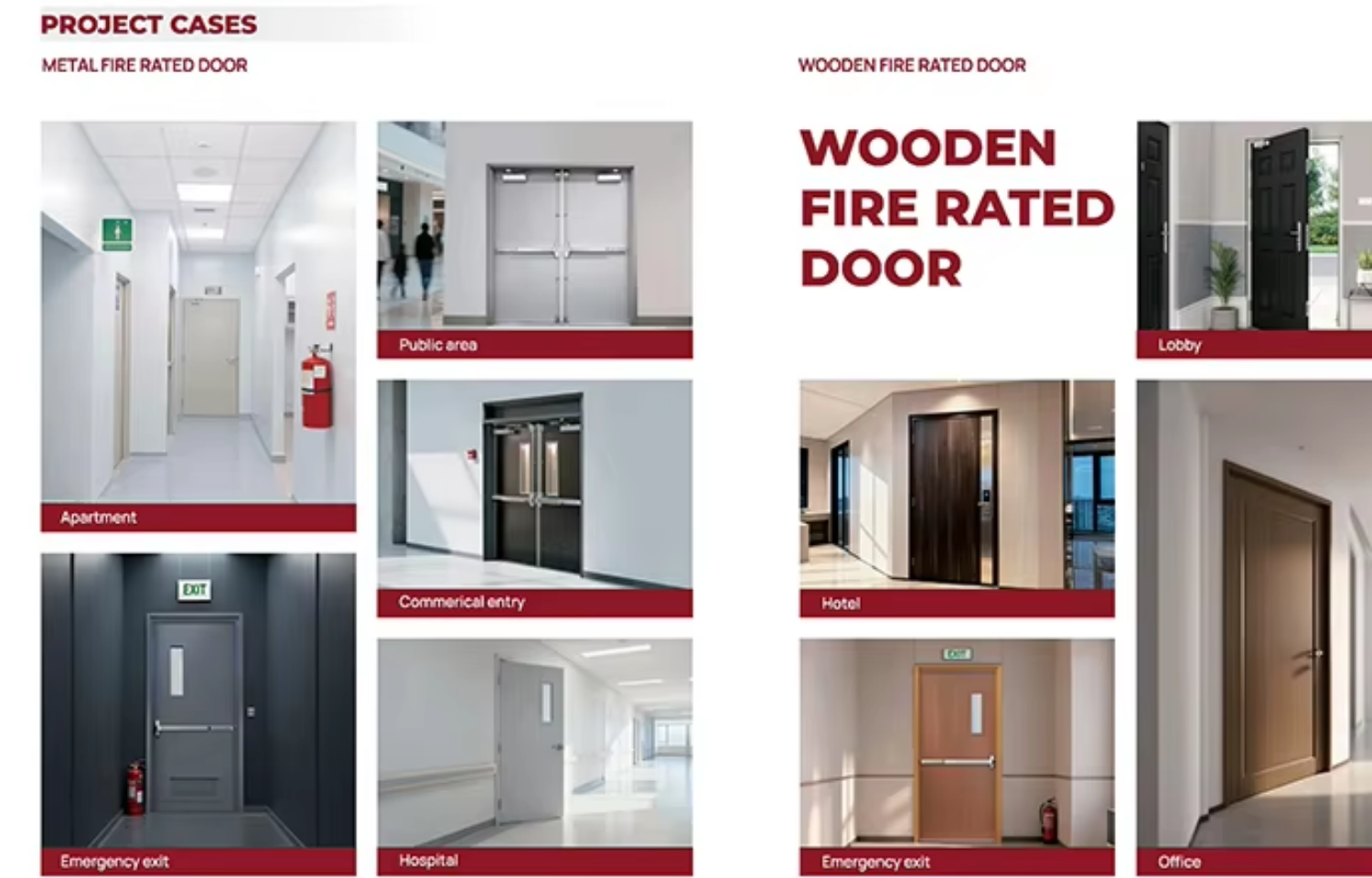

PROJECT CASES
CERTIFICATE
ABOUT THE SUPPLIER
Dalian Golden House Door & Window Mfg Co., Ltd. is a leading manufacturer established in 1992, specializing in steel fire doors and wooden fire door. With 1.296 million sq ft facilities, it produces 1 million doors annually, exporting to North America. UL/WHI/FM/ISO 9001 certified, it offers USA NFPA standard compliance, fire time From 20mins to 3 hours resistance, and customized sizes. Strong R&D and advanced equipment ensure quality and flexibility. We had set up two selling branch distribution center in Los Angeles and Vancouver.

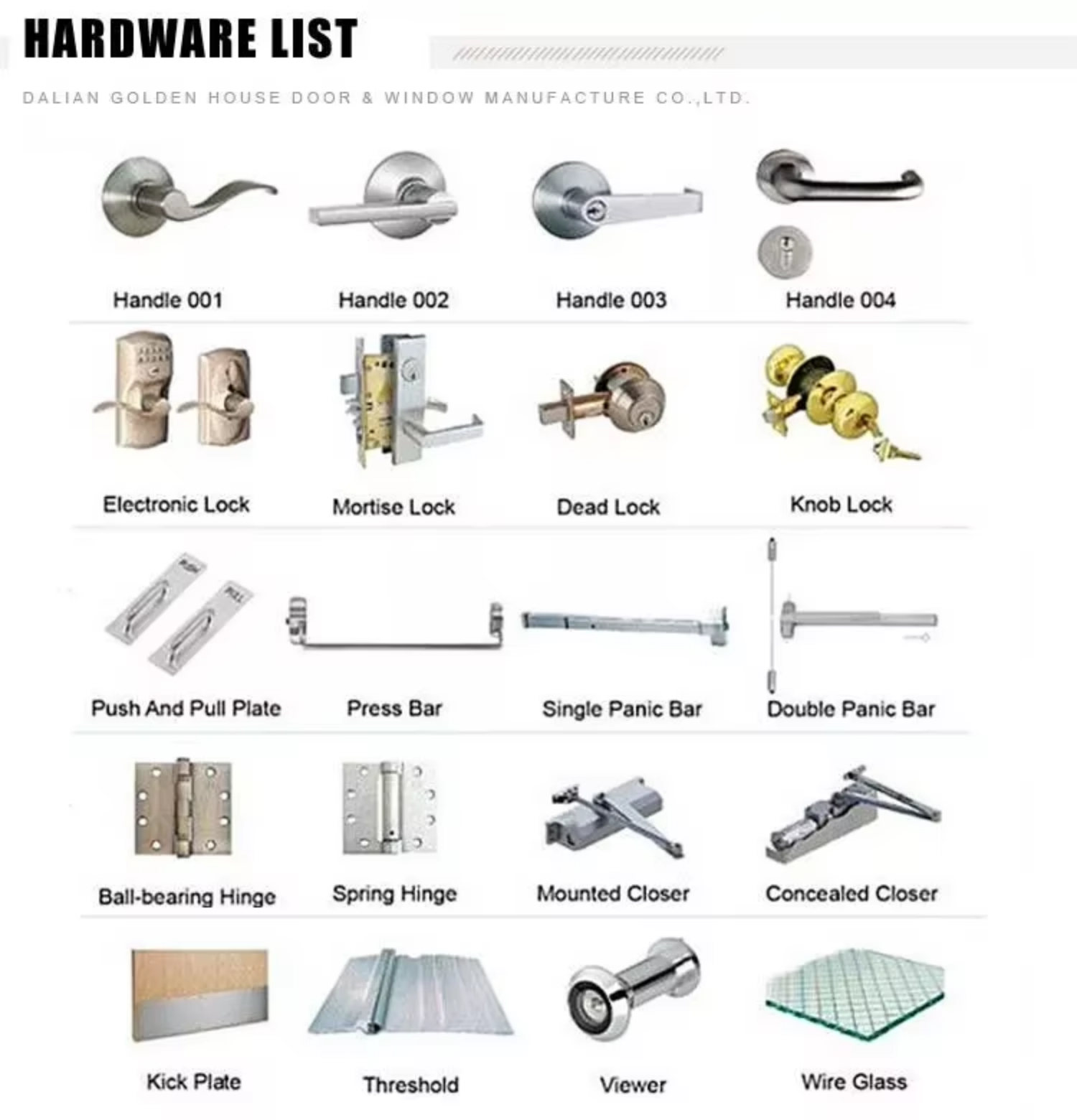

HARDWARE

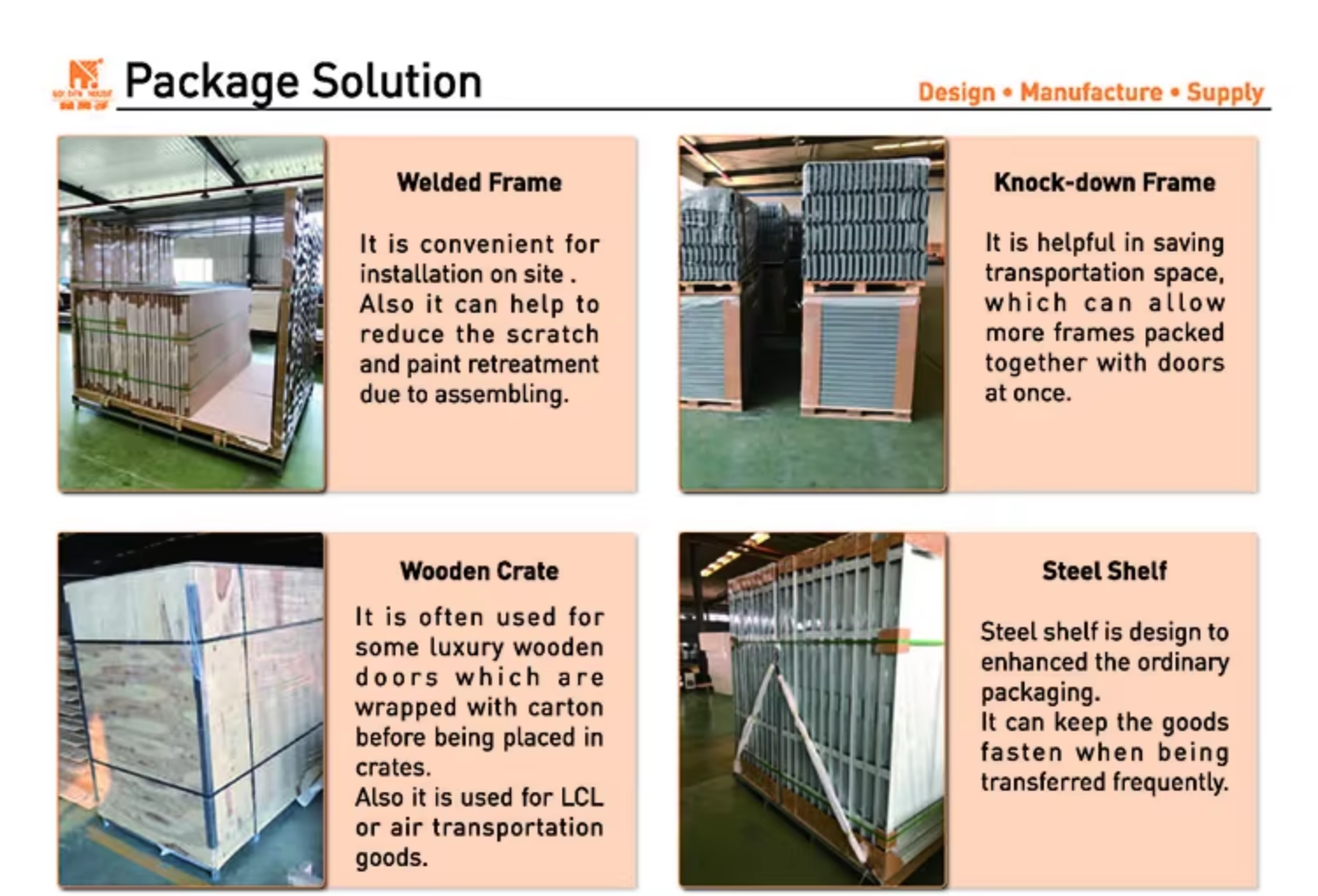

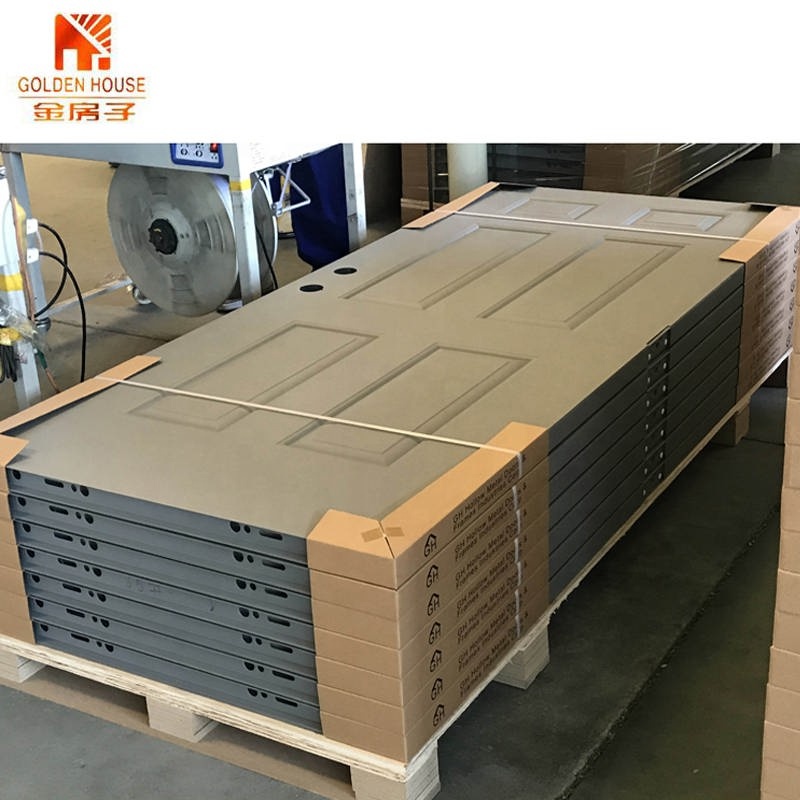

PACKAGING & SHIPPING SPECIFICATIONS
FREQUENTLY ASKED QUESTIONS (FAQS)
Can different colors and models be mixed together in one order?
Surely yes. Mixed colors and models are acceptable in One 20GP or in one 40HQ container. We suggest mixing 3-6 models per container.
Can you manufacture the door according to custom drawings?
Yes, we can. Customers should send their technical drawings for initial checking, after which we will issue an exact production drawing for your approval.
What is your policy regarding door samples?
For small samples, we can offer them for free. For complete doors, we charge a nominal fee based on the actual situation. However, sample charges will be fully refunded when you place a bulk order next time.
What special overseas services do you provide?
We offer overseas installation support and guidance for commercial projects.
What is the ordering process and delivery time?

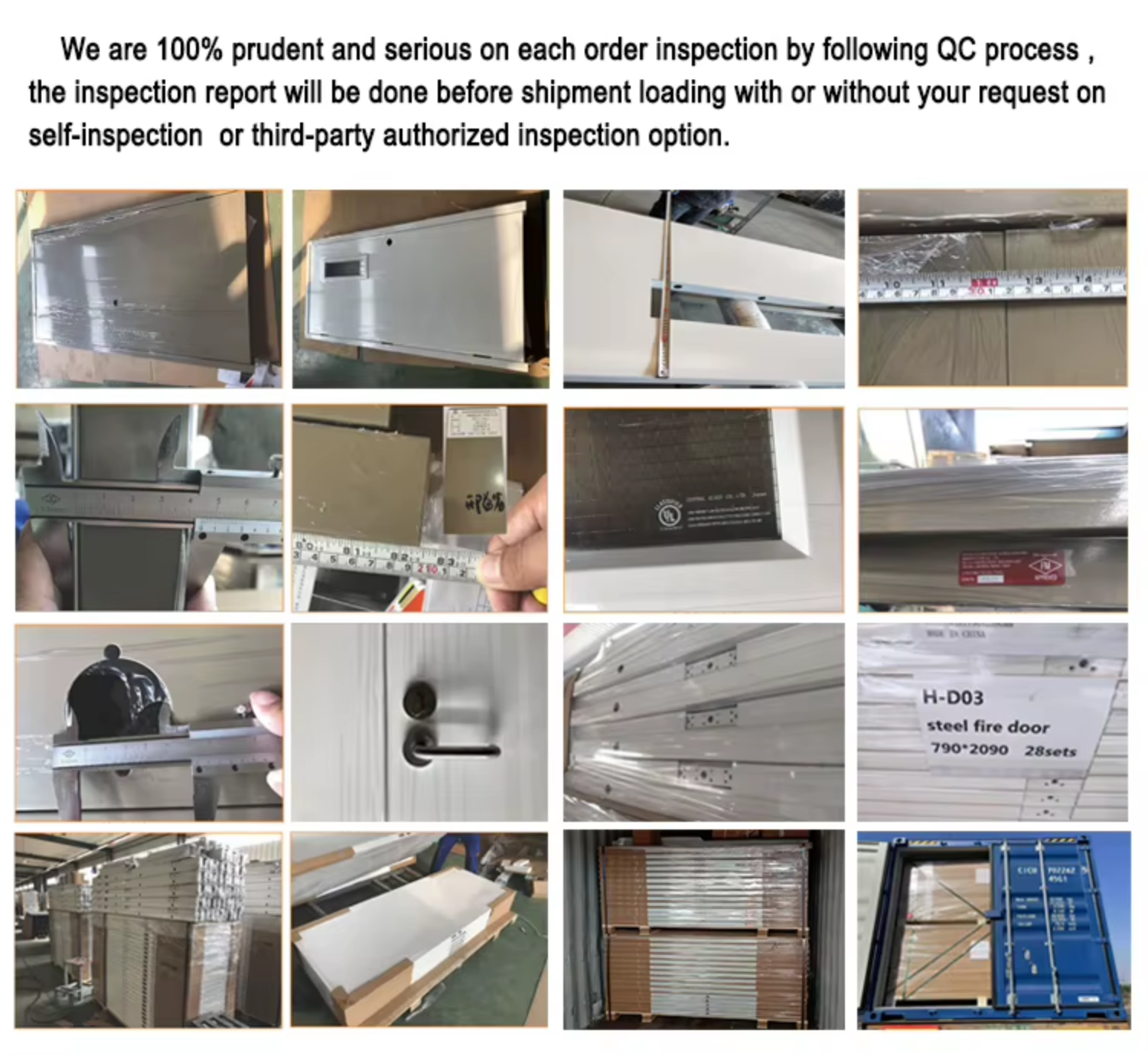

Delivery time is about 20-35 days. First, we confirm your specific door specifications and issue technical drawings with proforma invoice. Upon drawing approval and 50% deposit receipt, production begins. Once finished, photos/videos or third-party inspections are arranged prior to balance collection and shipping.
Do you keep standard doors in stock?
We stock standard American hollow metal doors and frames in our factory. For specialized project orders, we manufacture according to custom sizes, colors, lock preps, and materials. We cater to both wholesale stock buyers and customized end-user projects.
