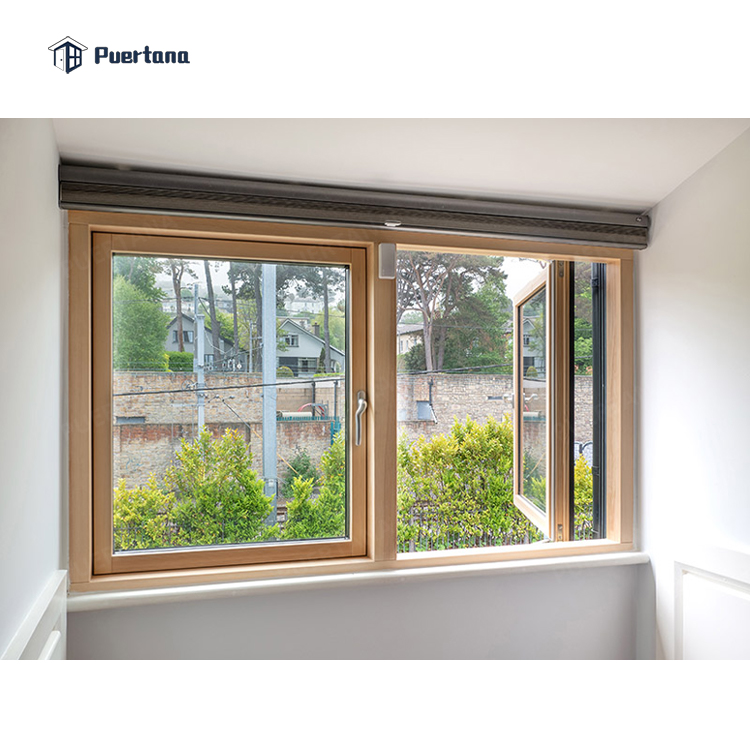

America Style Aluminum Clad Wood Casement Window With Double Toughened Glass for Villa House
Product Description

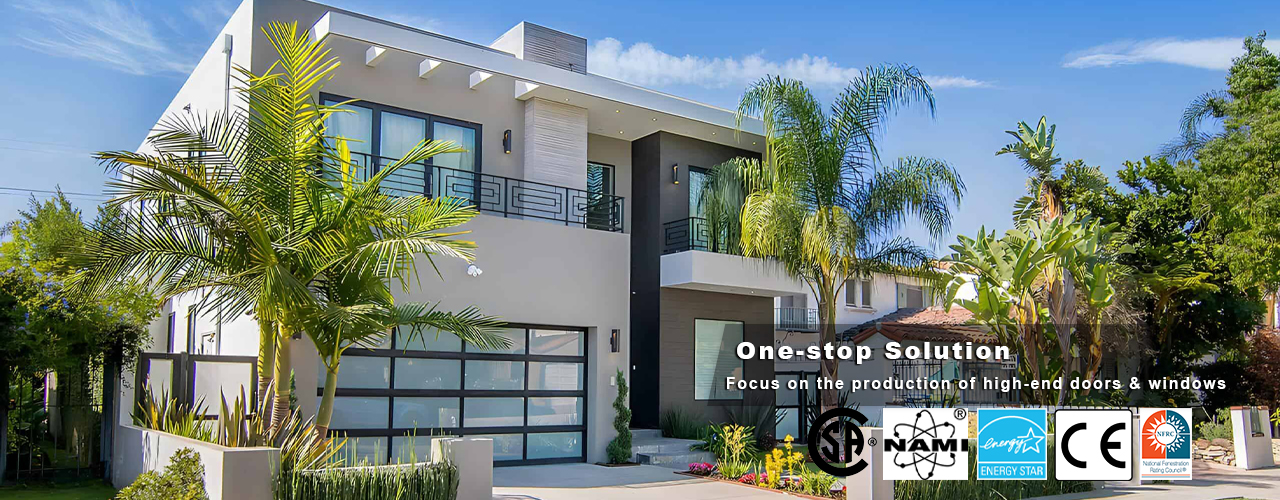

Looking for new windows for your home? Explore PUERTANA's wide variety of home windows styles and shapes and find the perfect complement to your home. Select a style below to view the product lines and learn more about the types of doors PUERTANA offers.
Product Description
| Glass Standard | Comply with AS2208 / IGCC / CE / ISO |
| Standard/Certificate | Comply with NFRC / CE / ISO |
| Thermal Insulation | U value from 0.8 to 2.0 W/M2k |
| Profile thickness | 2.0mm-4.0mm |
| Wood material | Oak wood / rose wood / teak wood / pine wood |
| Maximum dimensions/sash | Width up to 1200mm ;Height up to 3000mm. |
| Sample lead time | 7 days |
| Feature | Waterproof / heat and sound insulation |
| Application | Residential / Commercial / Villa |
| Main market | America, EU, Australia, and Middle East. |
| Hardware | German / China top brand handle and lock system with 10 year warranty |
| Packing | Wooden or Carton Box with Bubble Bag, Clear film,Foam inside. |
| Delivery | 15-35 Days after order confirmed |
| General specifications | Double glazed glass / Possibility of dual color / Color powder coating / Stainless steel wire mesh / Possibility of multiple Rails |
| Options | Multiple glazing packages and finish options / Dual-sealed warm edge spacer / argon gas infill |
| Mesh/Fly Screens | Stainless Steel Security Mesh / Aluminium Security Mesh / Fiberglass Flyscreen / Retractable Flyscreen |

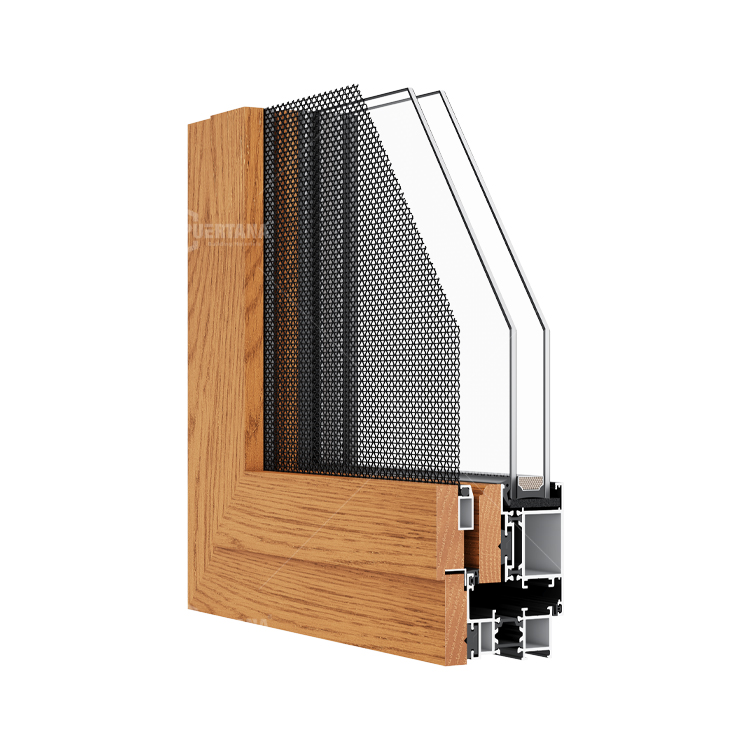

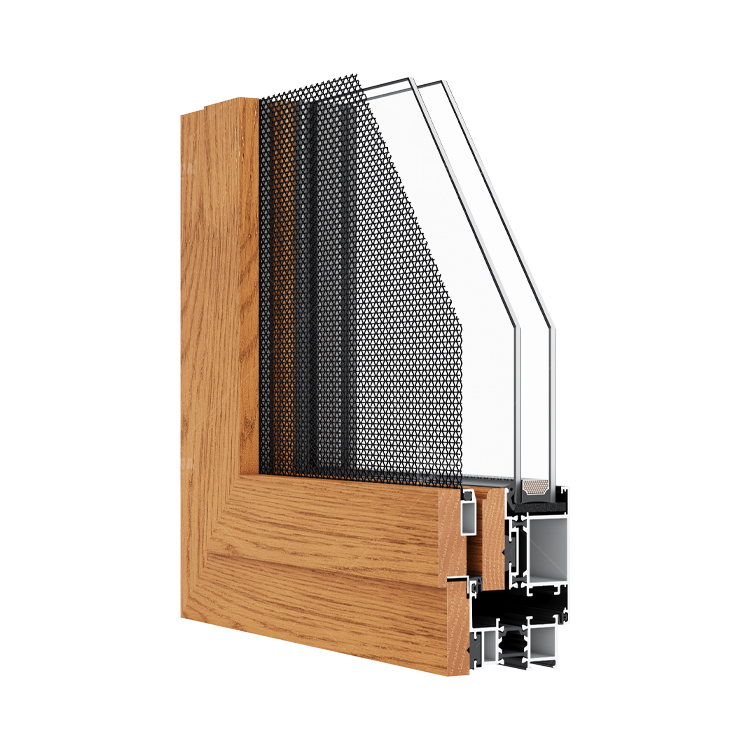

PT75 Aluminum Clad Wood Series

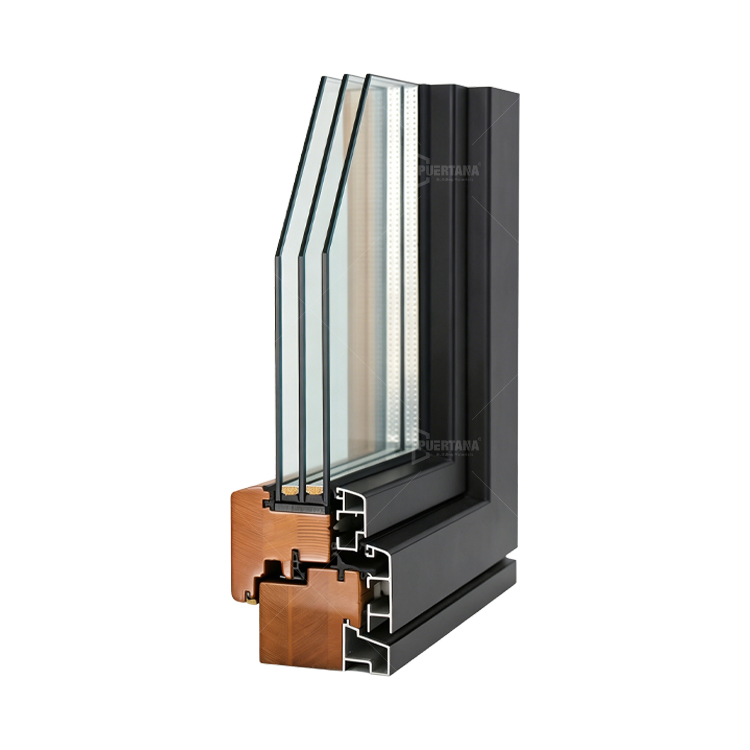

PT80 Wood Clad Aluminum Series

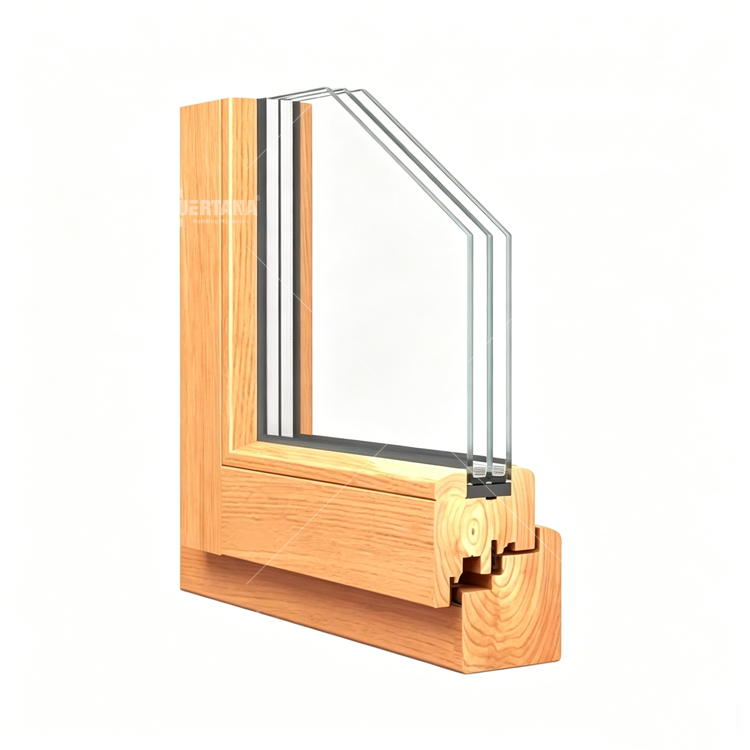

PT70 Solid Wood Series
Product Performance Comparison
| Product performance | PT75 Aluminum Clad Wood Series | PT80 Wood Clad Aluminum Series | PT70 Solid Wood Series |
|---|---|---|---|
| European U-Value (Metric/SI) | 1.59 W/(m²K) | 1.2 W/(m²K) | 0.91 W/(m²K) |
| American U factor (U.S./I-P) | 0.28 | 0.21 | 0.16 |
| Rw (dB) | 35 | 38 | 45 |
| Wind load resistance (Pa) | ≥ 900 Pa | ≥ 900 Pa | ≥ 900 Pa |
| Water tightness (Pa) | ≥ 250 Pa | ≥ 250 Pa | ≥ 250 Pa |
Customized Options

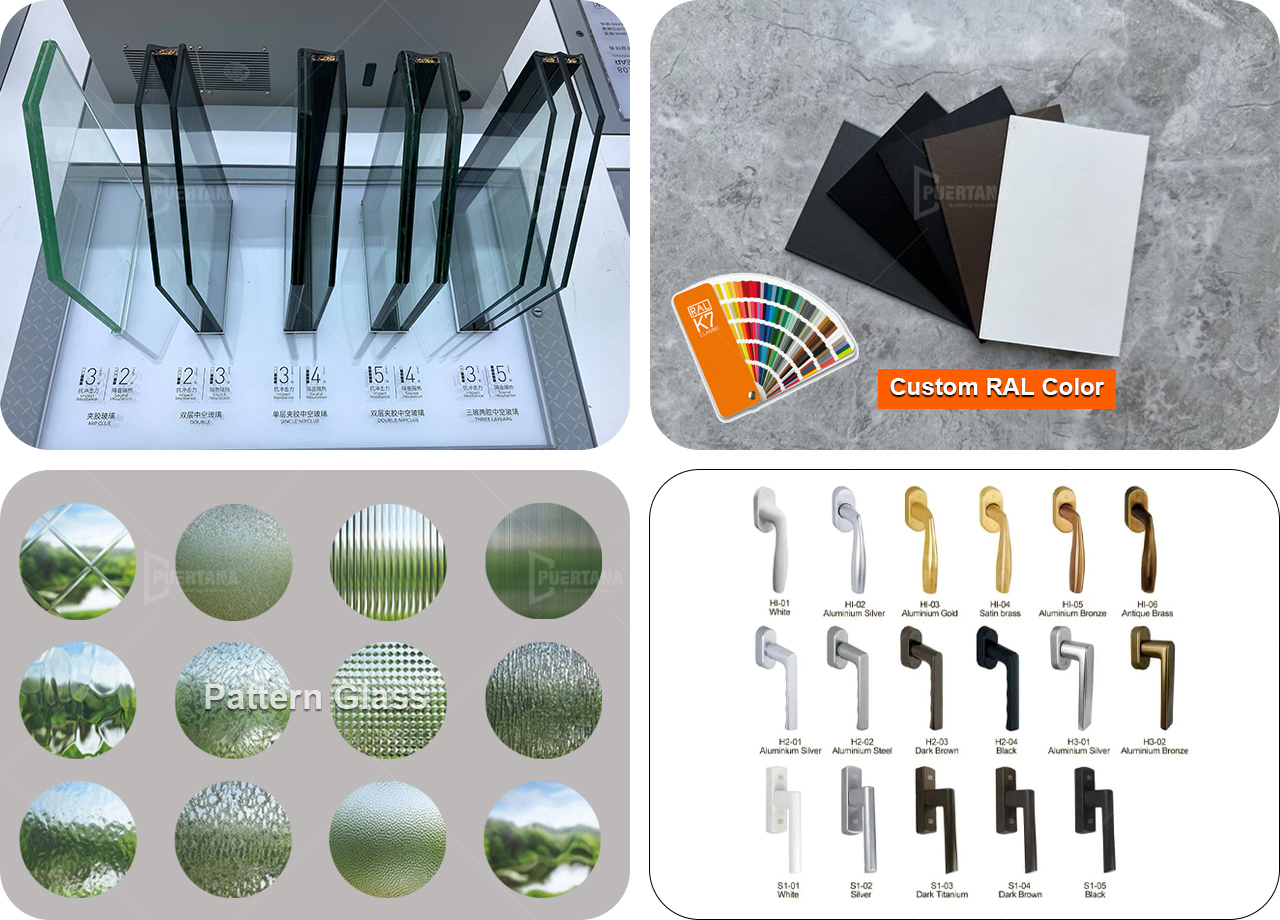

Glass options
- Single Glass(5mm, 6mm, 8mm, 10mm….)
- Laminated Glass(5mm+0.76pvb+5mm)
- Double Toughened Glass(5mm+12air+5mm)
- Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
- Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
- Thickness of single glass: 5-20mm
- Glass types: Frosted glass, Toughened glass, Low-e coated glass
- Special performance glass: Fireproof glass, Bulletproof glass
- Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof.
Glass Pattern Texture
- V-Groove • Obscure • Reeded • Flemish • Glue Chip • Austral
- Narrow Reeded • Aquatex • Florex • Rain • Hamered • Renova

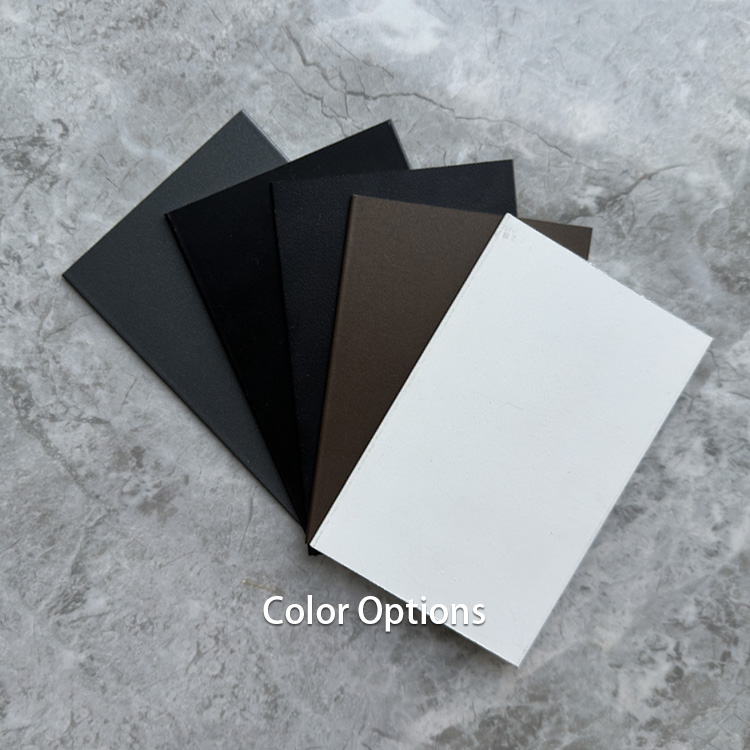

Color & Coating options
- Puertana Commen Color: Frosted Black, White Powder Coating
- Silver grey powder coating, Silver anodising with INTERPON powder
- Woodland grey(Satin), Ironstone(Stain), Shale Grey(Satin)
- Ultra Silver(Gloss), Dune(Sain), Paperbark(Satin), Primrose(Gloss)
- White Birch(Gloss), Surfmist(Matt), Architectural White(Satin)
- Pearl White(Gloss), Silver Pearl Kinetic(Satin), Black(Satin)
- Monument(Matt), Clear, Residential Bronze
- Cedar, Mahogany, Honey Gum, Snow Gum
- Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.
*Online color swatches are only digital reproductions of actual standards and will vary in appearance due to differences in monitor and video card output. These digital representations should not be used to finalize color selection(s). Actual physical representation may vary slightly in color.

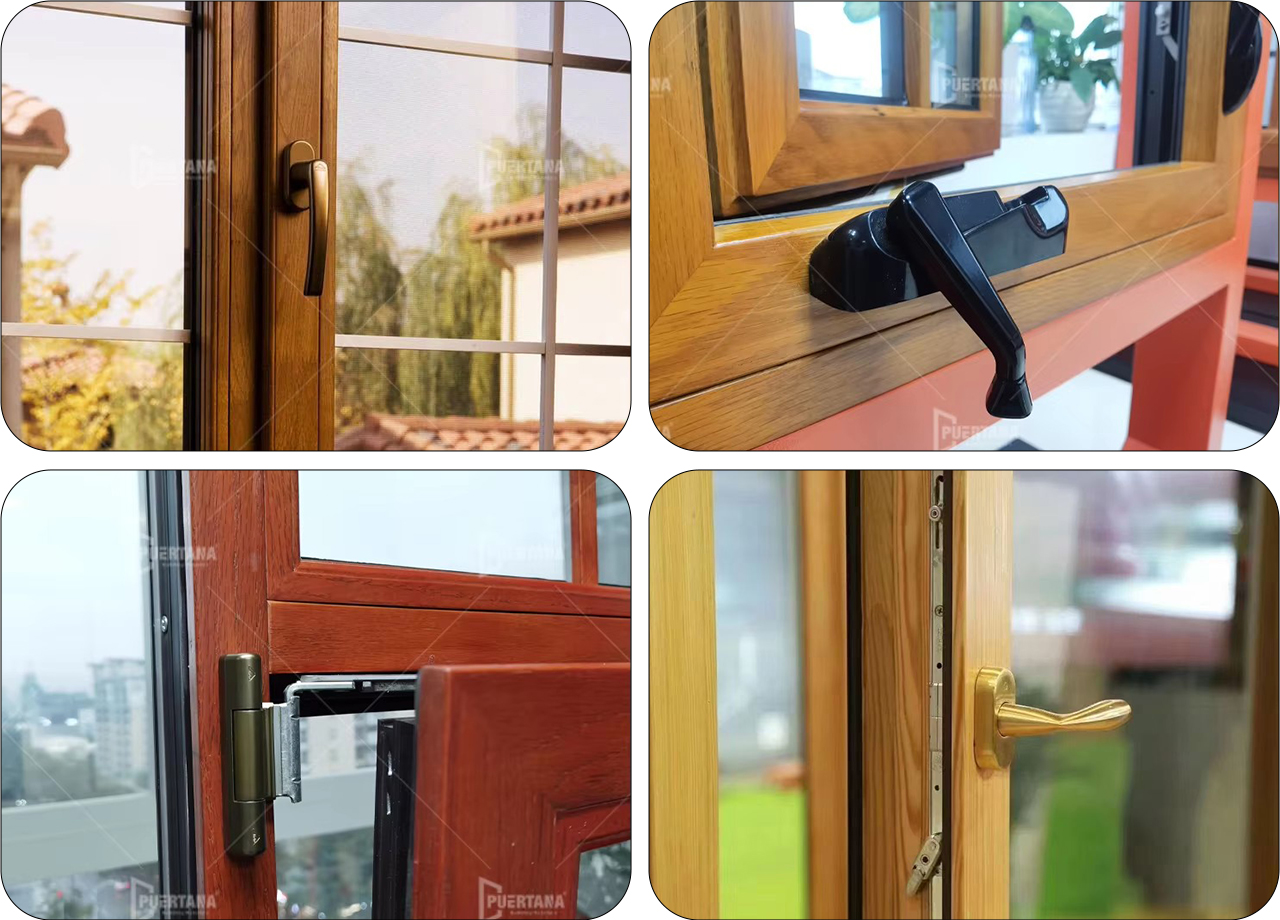

Hardware options
- Australia Doric hardware
- German Hoppe hardware
- German SIEGENIA hardware
- China top KINLONG hardware
- German ROTO hardware
- German OAOSM hardware
- Puertana always choose seriously hardwares&accessories for customers with 10 years warranty
Wood
Offering a rich, warm look, many customization options, and design versatility, wood is a premium choice. Wood can be used on both the interior and exterior of a window or door. As a lower maintenance option, wood can also be used on only the interior with an extruded aluminum cladding exterior. Puertana offers both options, leading the industry in sourcing, processing, and utilizing high quality wood.
Extruded Aluminum
Extruded aluminum is used on window and door exteriors to provide additional protection and minimize maintenance compared to an all-wood window. Aluminum can either be extruded or roll-formed, and the difference in strength can be compared to an industrial chair versus an inexpensive lawn chair. Extruded aluminum is used for cladding because of its strength and weather resistance. It’s important to remember that clad windows and doors are different from products that have all-aluminum frames, which are typically less energy-efficient than the alternatives.
Peace of mind - Unrivalled craftsmanship and performance guarantees

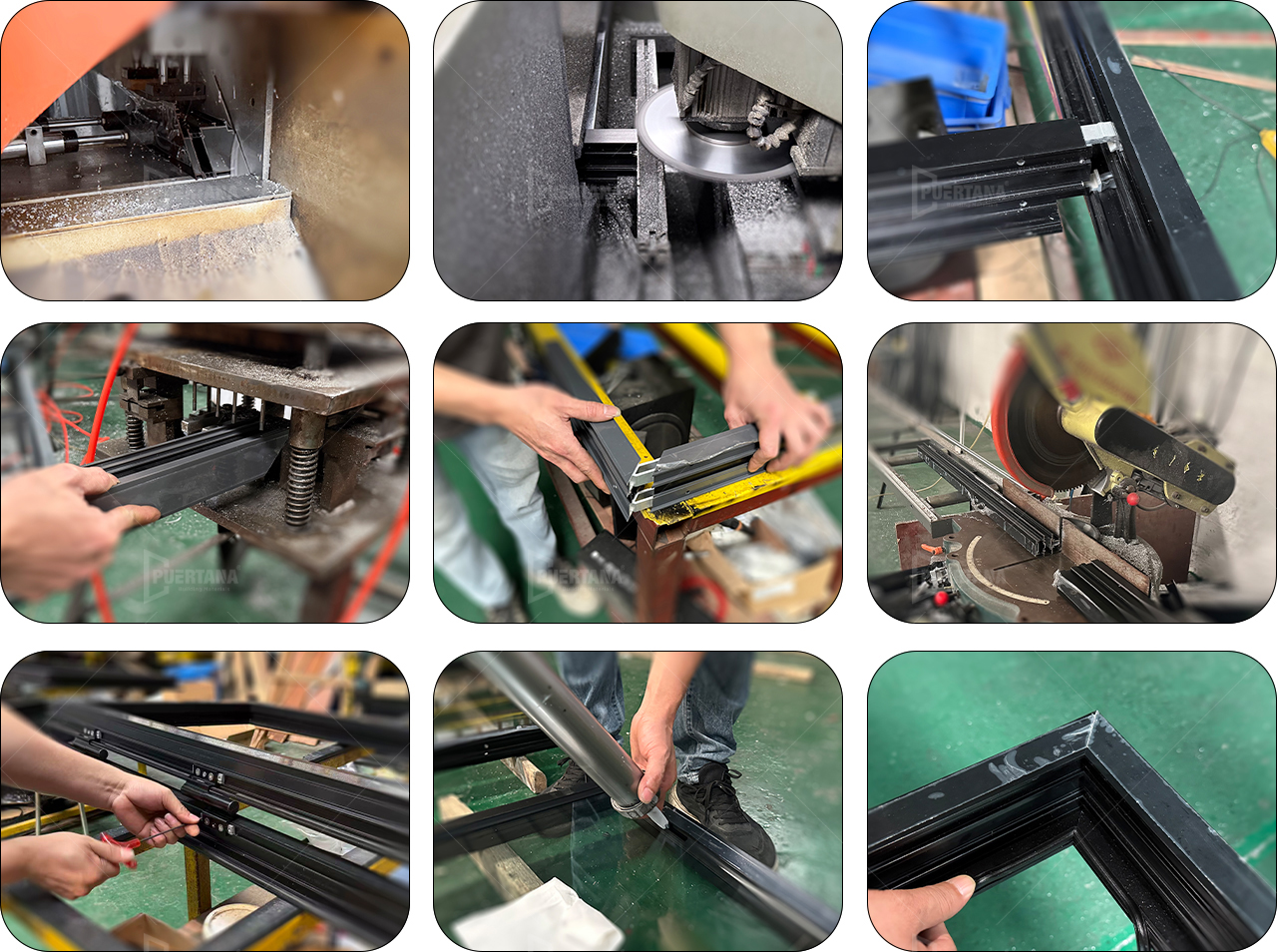

We pride ourselves in the premium quality that our doors deliver. Every stage of the manufacturing process takes place in-house so that we can ensure the highest quality and an exceptional standard to each of our products. Combining skilled craftsmen with high quality components allows us to offer a ten year warranty.
Customization
Our aluminum-clad wood windows offer the timeless beauty of wood windows with an easy-to-maintain aluminum clad exterior.
They're available in a variety of styles including:
- Casement Window
- Awning Window
- Picture Window
- Geometric Window
- Bay or Bow Window
The natural, clear wood interior can be stained or painted to complement your home's unique design. We also offer white, off-white and black prefinished wood interiors. For the aluminum exterior, choose from 46 colors ranging from natural and vibrant shades to dramatic dark colors for eye-catching curb appeal. Accentuate your home's design with architecturally inspired grille profiles and patterns.
Design Flexibility
Customize your aluminum clad wood windows to complement your home. Choose from a variety of window styles to find the best fit. Create a stunning arrangement by combining multiple window styles. Further customize the look of your window with a variety of paint and stain options.
Durability
Aluminum-clad windows offer the traditional look of wood with the strength of extruded aluminum. They provide excellent structural integrity for a lifetime of dependable performance. The extruded aluminum frame protects the wood window from harsh weather and damage from insects and decay. It's also dent-resistant.
Energy Efficiency
Our aluminum-clad wood windows offer great thermal efficiency and interior comfort. Wood is a non-conductive material which helps keep the cold/heat out and maintain a consistent temperature within the home. Our aluminum-clad windows come standard with Low- E glass and can be ordered to meet ENERGY STAR® requirements for your area.
Improved Home Value
By choosing aluminum-clad wood windows for your new construction home, you can ultimately increase the resale potential. They add value with their durability and aesthetic appeal.
Home Offices
The timeless beauty of a wood window with an easy-to-maintain aluminum clad exterior. Durable aluminum protects the wood window from harsh weather conditions and damage from insects and decay. Natural, stain-grade clear wood interior can be customized to complement your home's décor. Aluminum exteriors available in dark bold colors to vibrant metallic hues resist fading for long-lasting curb appeal. Extruded aluminum provides excellent structural integrity for a lifetime of dependable performance.

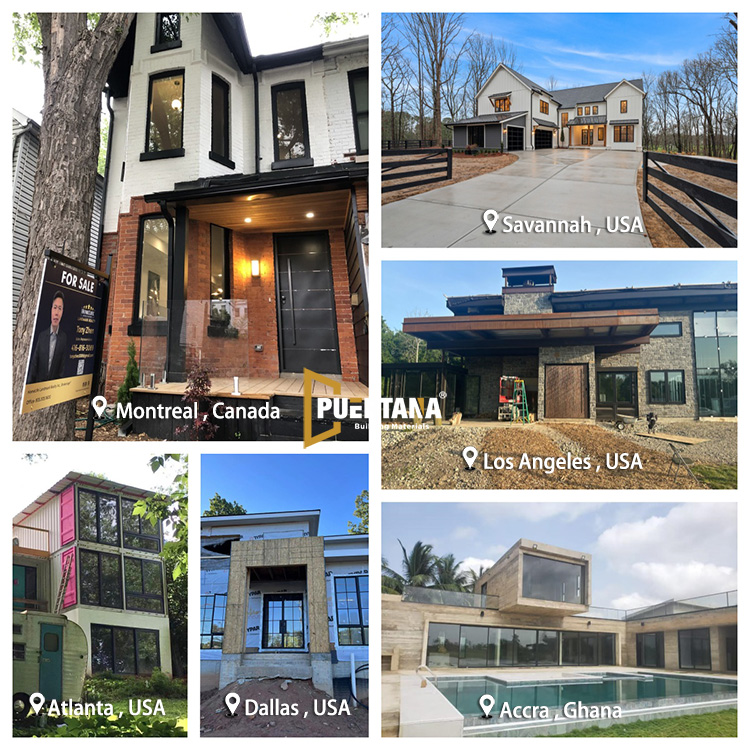

Project Gallery
We have customized designs for 10K+ clients
16 years of experience in the production, research and development and sales of windows and doors, project types include residential, commercial, industrial, hotels, hospitals, schools
Company Profile
Foshan Puertana Building Materials Co., Ltd. is a professional manufacturer and supplier of aluminum-based building products in China, focusing on the R&D, production, and sales of high-quality building accessories. With years of experience in the building materials industry, we have established a complete production system and strict quality control standards, committed to providing customers with reliable, durable and cost-effective products for both commercial and residential projects. Our main products include a full range of aluminum-based building products, covering aluminum alloy doors and windows, aluminum-wood doors and windows, aluminum entrance doors, aluminum main gates, aluminum guardrails, aluminum railings, aluminum pergolas, aluminum sunrooms, and aluminum curtain walls. All our core products are manufactured with high-quality aluminum materials, combined with advanced production technology and exquisite craftsmanship, ensuring excellent performance in insulation, structural strength, weatherproofing, sound insulation and condensation resistance.
In addition to our core manufacturing business, we also provide supporting sales services for a variety of complementary building products to meet the one-stop purchasing needs of our customers. The supporting products we supply include garage doors, glass railings, metal stairs, wooden doors, wrought iron doors, cabinets and floors. We carefully select high-quality supporting products from trusted partners, ensuring that all products provided to customers meet the same high standards of quality and performance.
With a factory area of 8,000 square meters and an annual production capacity of 50,000 square meters, we have the scale advantage to ensure timely delivery. Our industry-leading customization service can meet even the most stringent requirements of customers, and we can flexibly adjust the manufacturing lead time to as short as 18 days according to order needs. All our products are strictly manufactured in accordance with CE/CSA/NFRC standards and have obtained relevant certification, which is widely recognized in the global market.
We are dedicated to the pursuit of energy-efficient, eco-friendly and cost-effective products, and have made great strides in product performance through continuous research and development. Our unique philosophy is centered on creating the most reliable and durable products for each performance class, mitigating the inconvenience and cost of product failure, reducing the total cost of ownership for customers, and maximizing the value we bring to our clients. We take no shortcuts and pledge not to compromise on product quality.
Our products have been exported to countries and regions around the world, including North America, South America, Australia and other markets, winning wide praise from customers with high-quality products and thoughtful services. Welcome to cooperate with Puertana, and experience the next level of service, support, quality and performance.
Our Advantages
Pre-sales service
- 24 Hours Online Consultant.
- Sample Support.
- Free Pick-up At Hotel / Airport To Visit Factory.
- Quick & Professional Response To Quotation Request And Technical Question.
Production period service
- Shop Drawing Submitted To Double Check Details.
- Quality Inspection Report Submitted.
- Logistics Service Support.
- Installation Solution Provided.
After-sales service
- Providing The Installation Guide And Solution.
- 10 Years Quality Guarantee.
- Any Quality Problem Replace Freely.

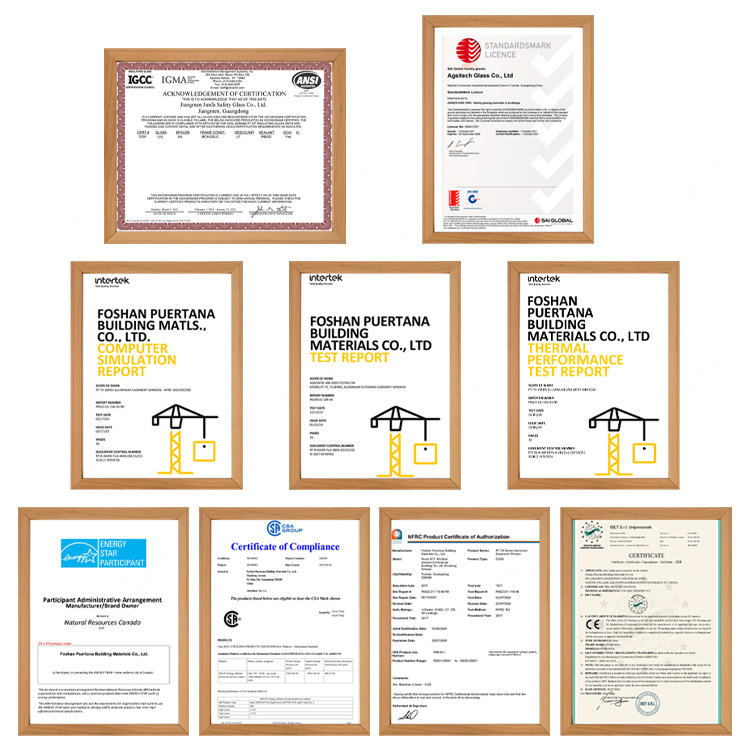

Certifications
Product packaging
Frequently Asked Questions
QAre you a factory?
Yes. We are factory.
QWhat's your payment term?
T/T 30% deposit, full balance against delivery
QCan you help with delivery?
Yes, we can do FOB, CFR, CIF, DDU.
QWhat's your period of production time?
Normally it's 25-30 days. It's negotiable.
QWill you check the products' quality before delivery?
Yes, we have QC department so we can make products 100% good for you.
QWhat color can you do for the products?
We have standard colors for every product. But we can customize it for you.
