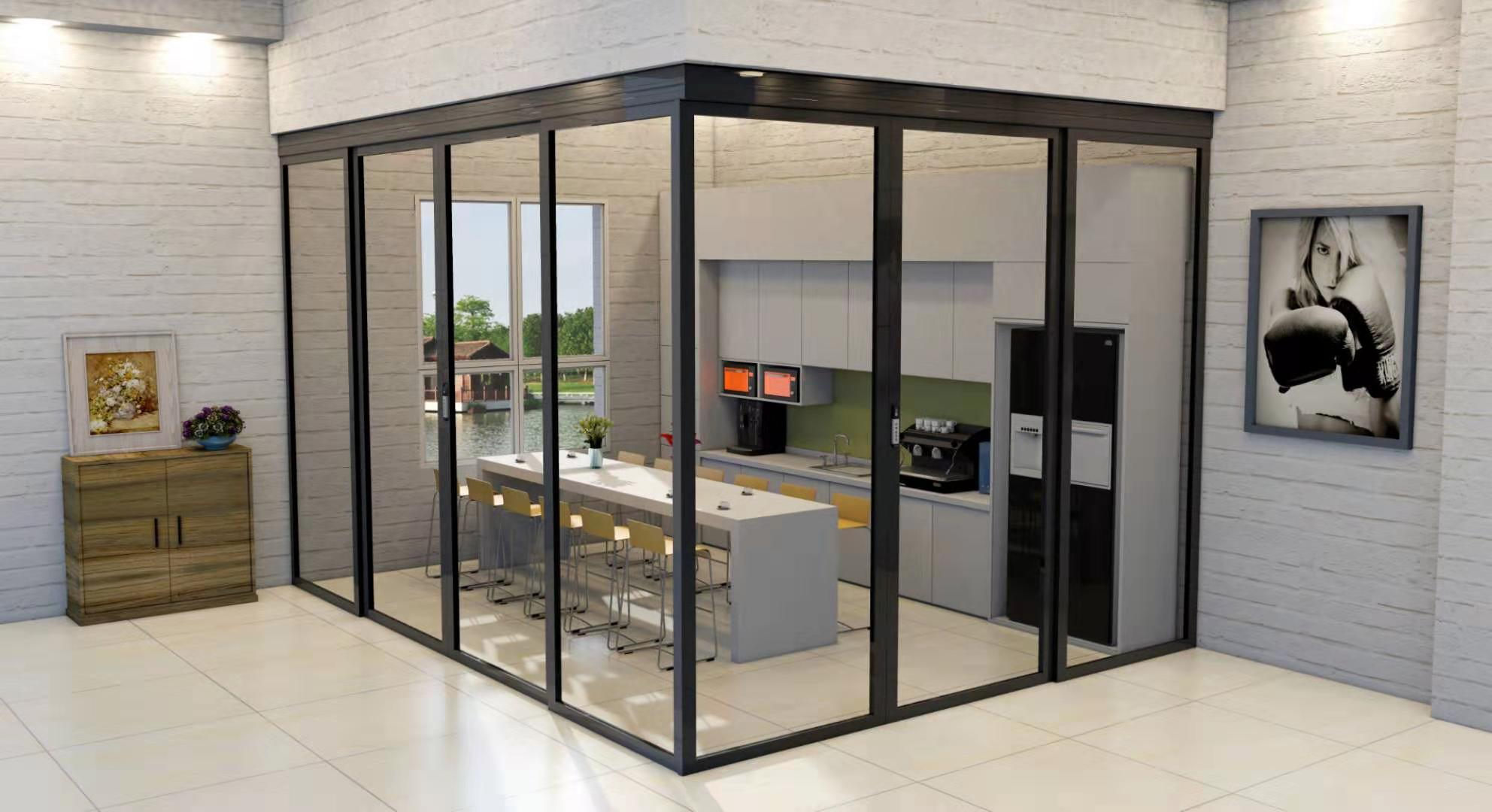

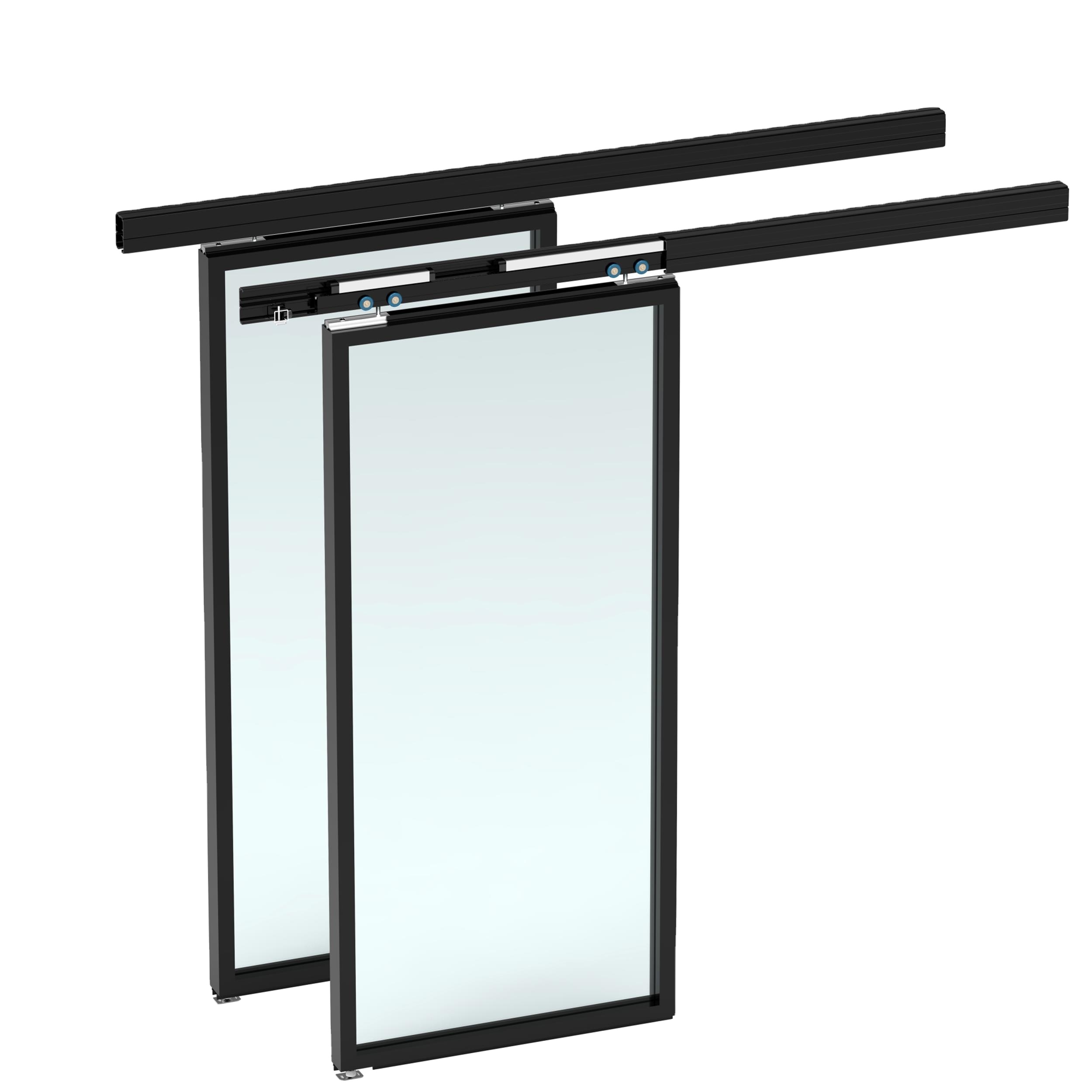

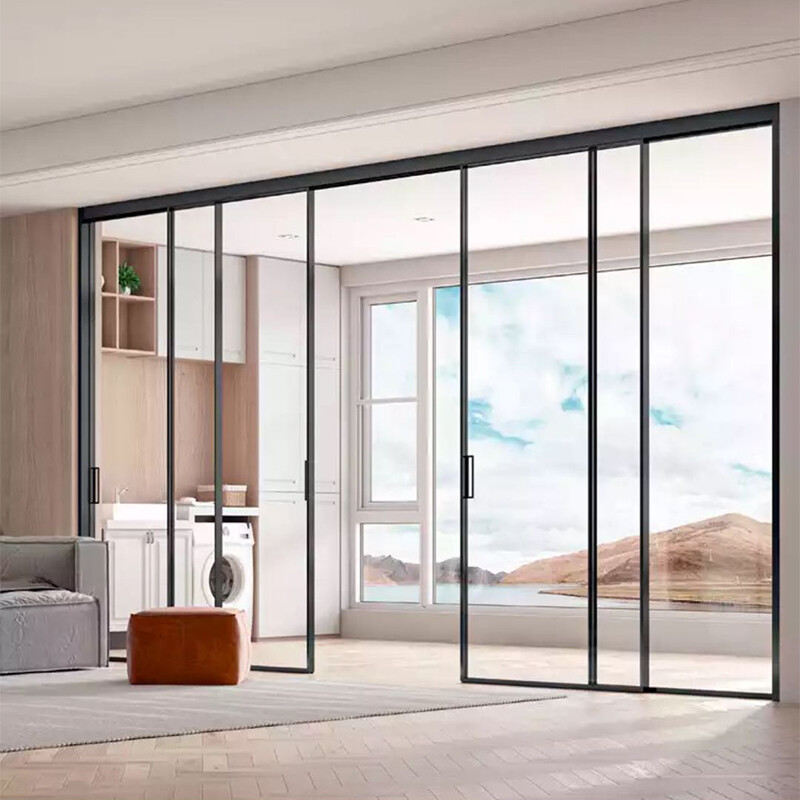

2023 New Automatic Maglev Magnetic Levitation Sliding Doors 3 Panel Slimline Doors Aluminium Narrow Slim Frame Sliding Door
Product Description
Products Description

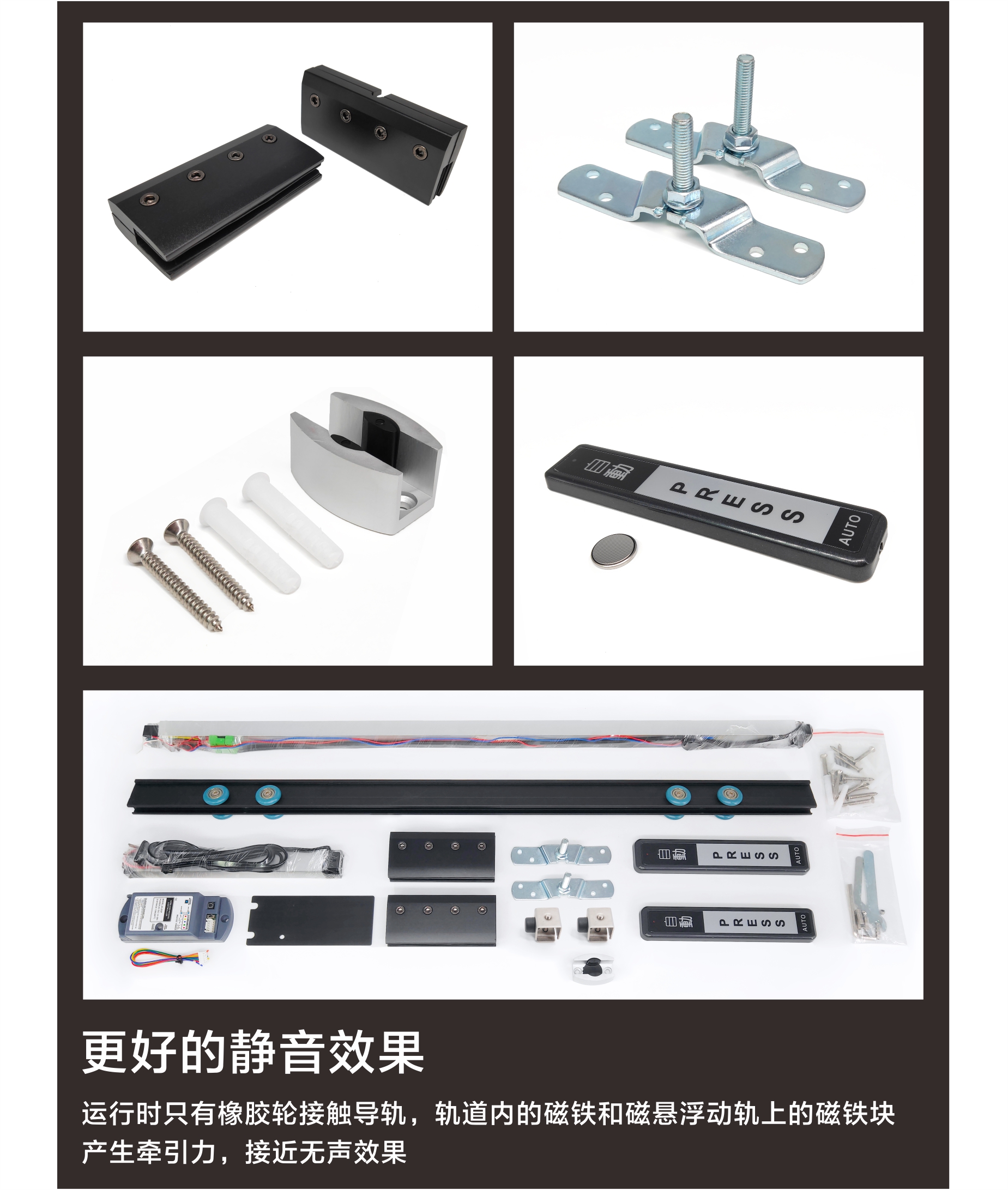

Item Name: HL-ML08-3 DOORS linkage synchronize Magnetic Levitation Sliding Door System
Key Features:
- 1Small Size: Smaller than traditional electric doors.
- 2Intelligent: Program editing, smarter and more user-friendly.
- 3High Safety: Won't clip people, anti-pinch design.
- 4Super Silent: Sliding smoothly with no friction.
- 5Power Off Mode: Functions as normal sliding door; all fittings are standard sliding door configurations.
- 6Long Life: 1 million cycles usage testing.
- 7Low Power Consumption: More environmentally friendly.
Advantages:
The best solution for sliding doors: easy to maintain, the door will open automatically when the power is cut off, highly cost-effective.
Certifications & Benefits:
CE, FCC, LVD certified with official patents. Compatible with various switches; APP settings supported. OEM/ODM options available to help build your brand.
Basic Technical Parameters (Tested for 1 Million Cycles)
| Noise: | < 40dB | Resistance-Rebound: | ≤ 10 N |
| Standby Power Consumption: | ≤ 5 W | Voltage (DC/AC): | 220V or 110V (Full Voltage Adaptability) |
| Operational Power Consumption: | ≤ 100 W | Suitable For: | 3 Linkage Doors, Synchronized |
Product Parameters

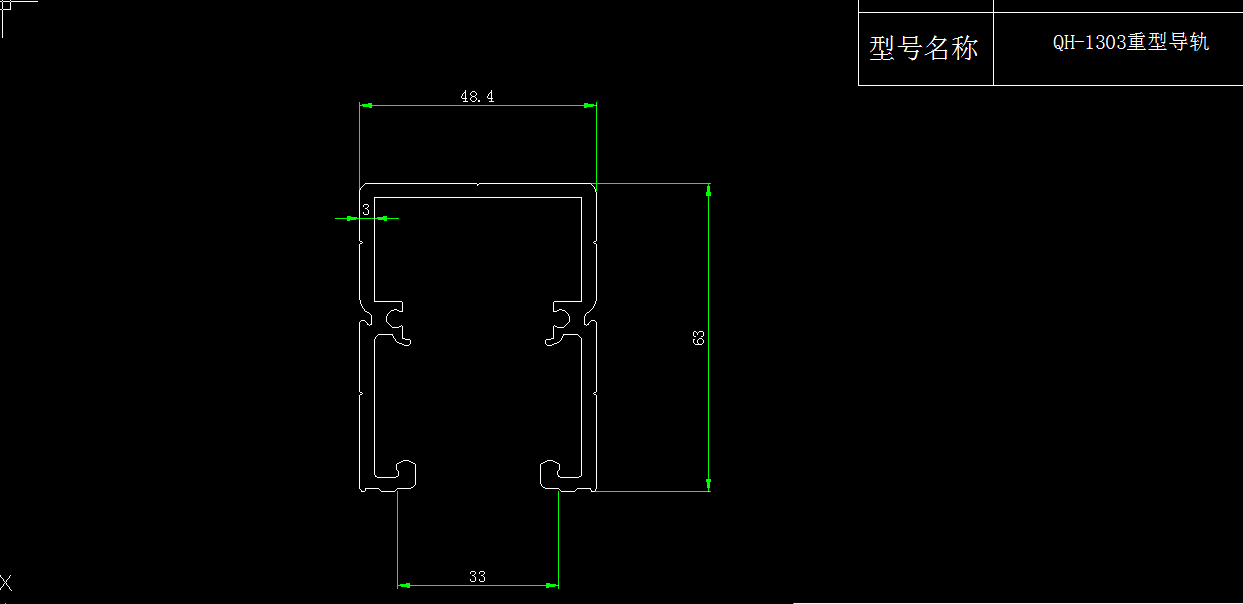

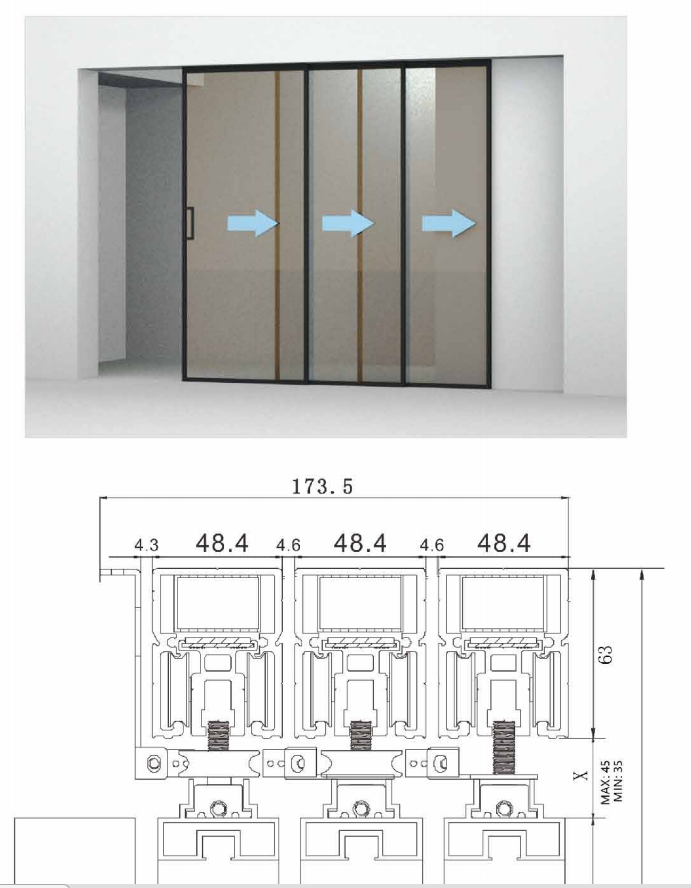

DOOR HEIGHT FORMULA = H - 63 (Track Height) - X (Adjustable Height) - 10 (Bottom Height)

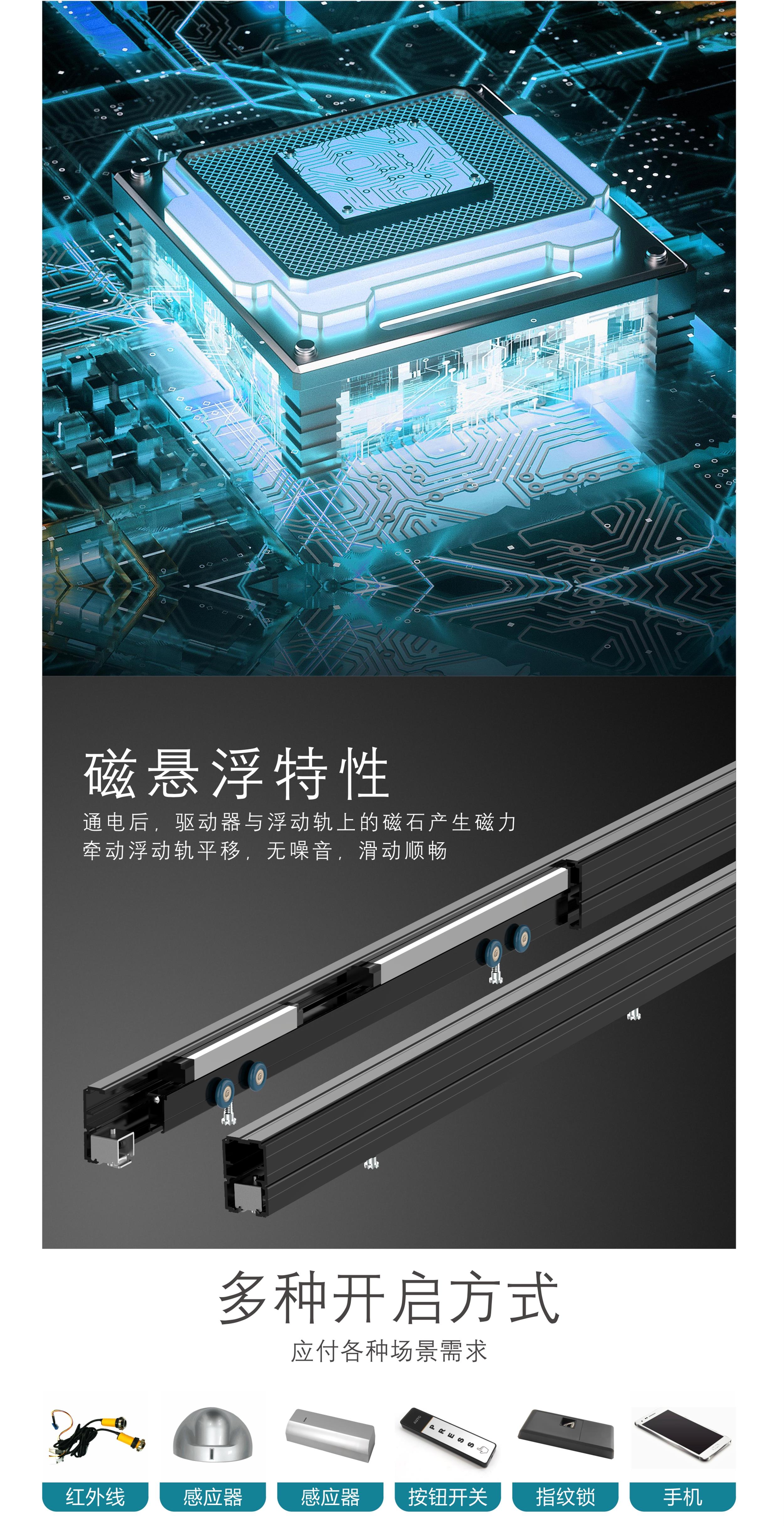

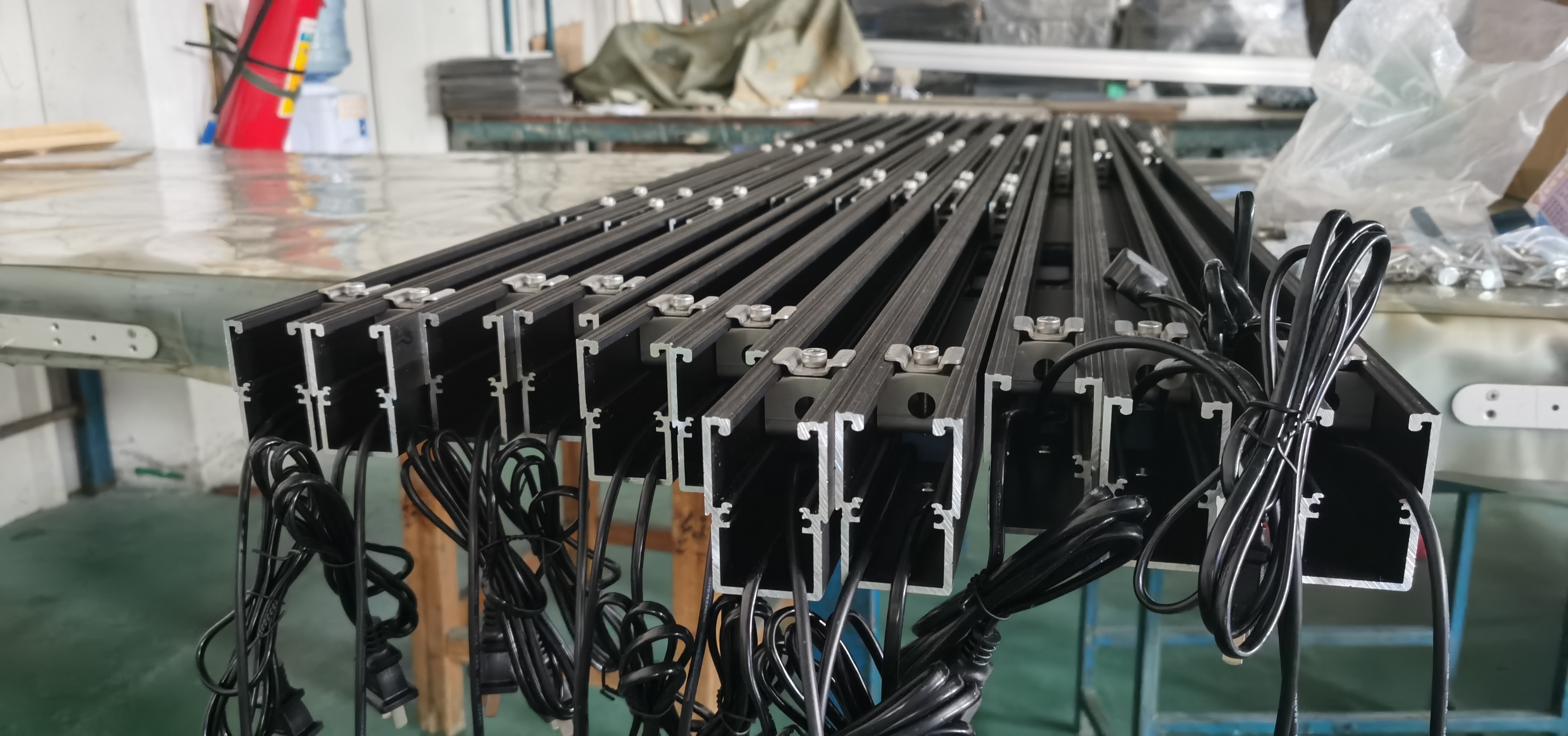

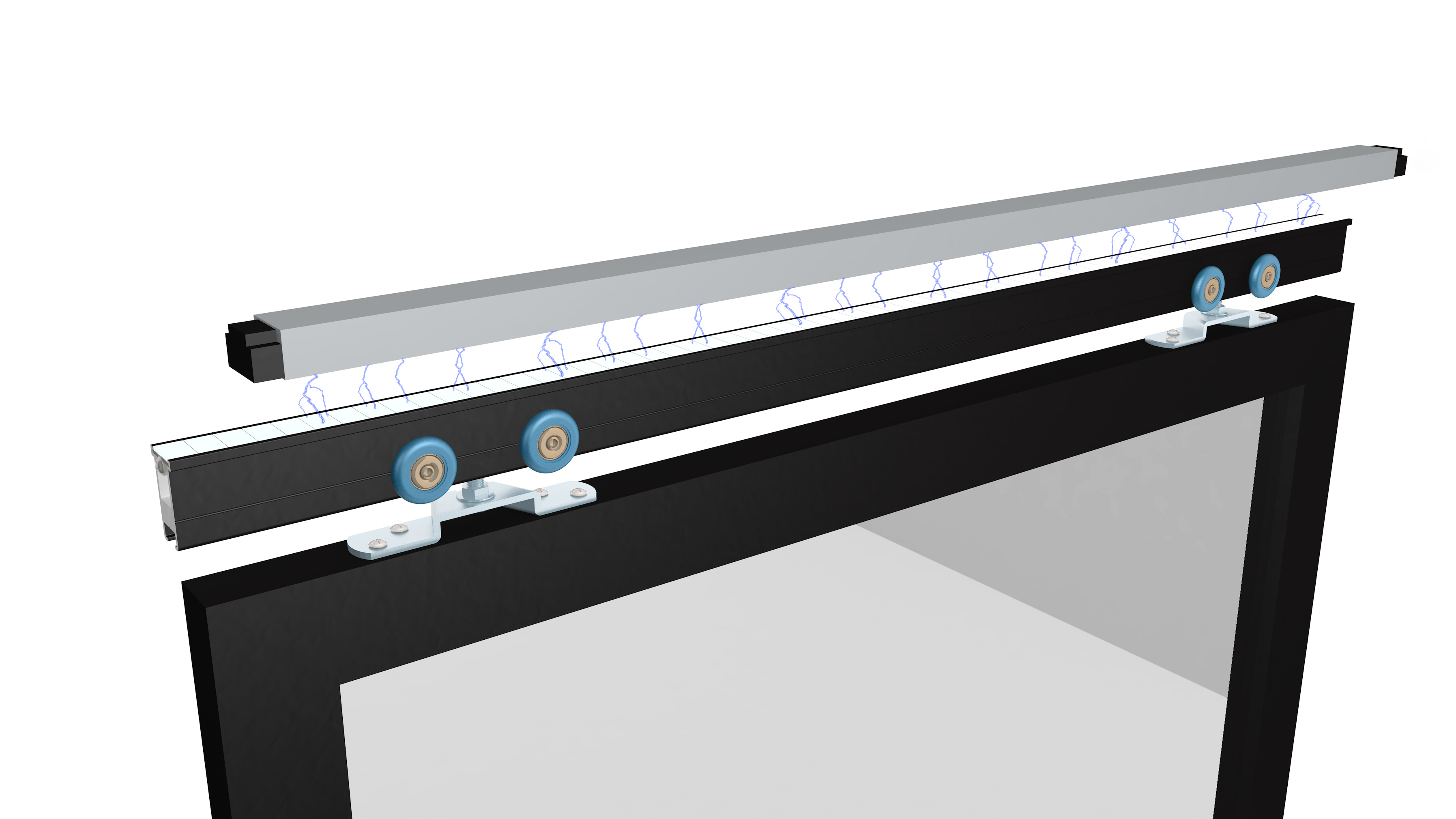

Details Images

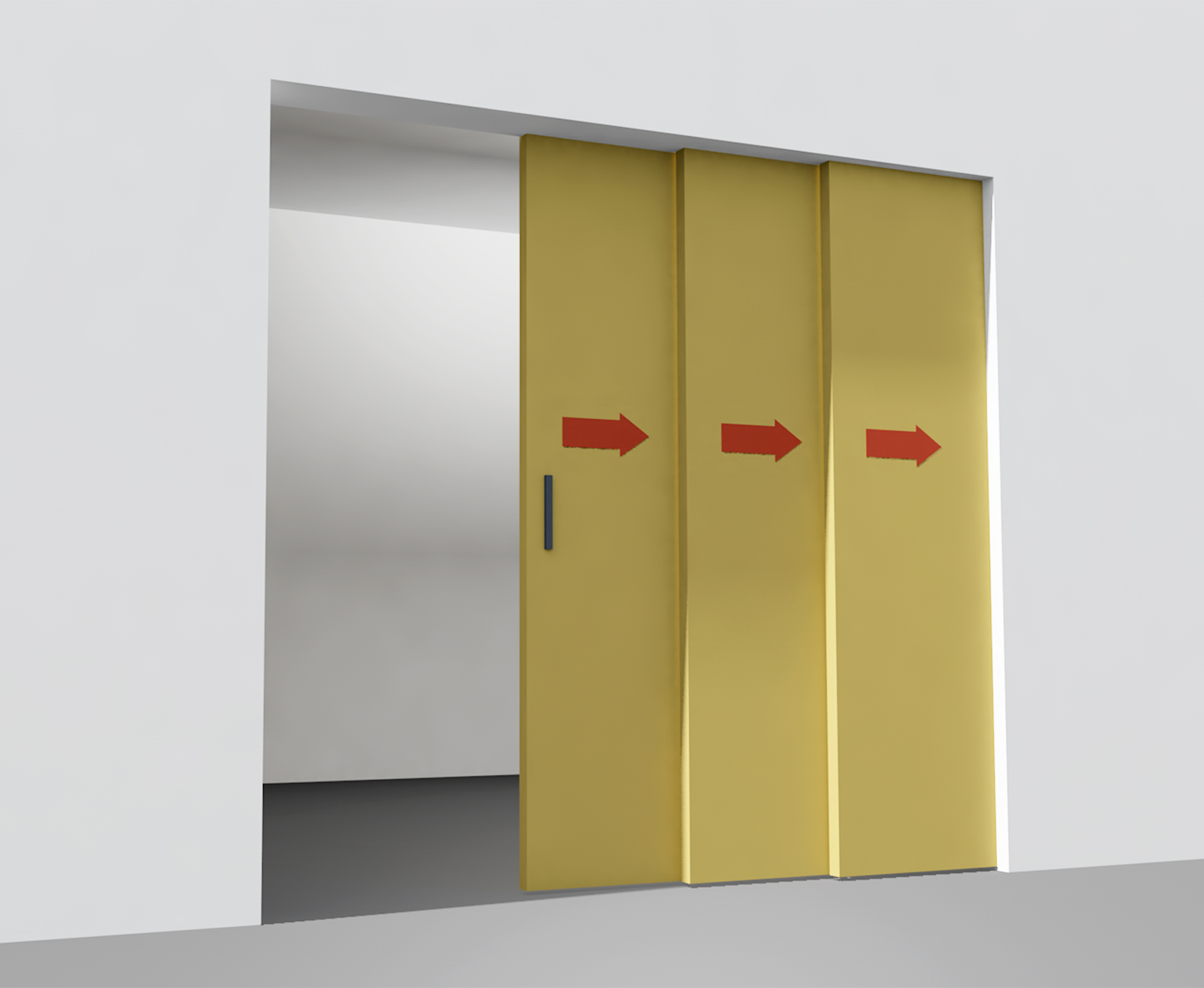

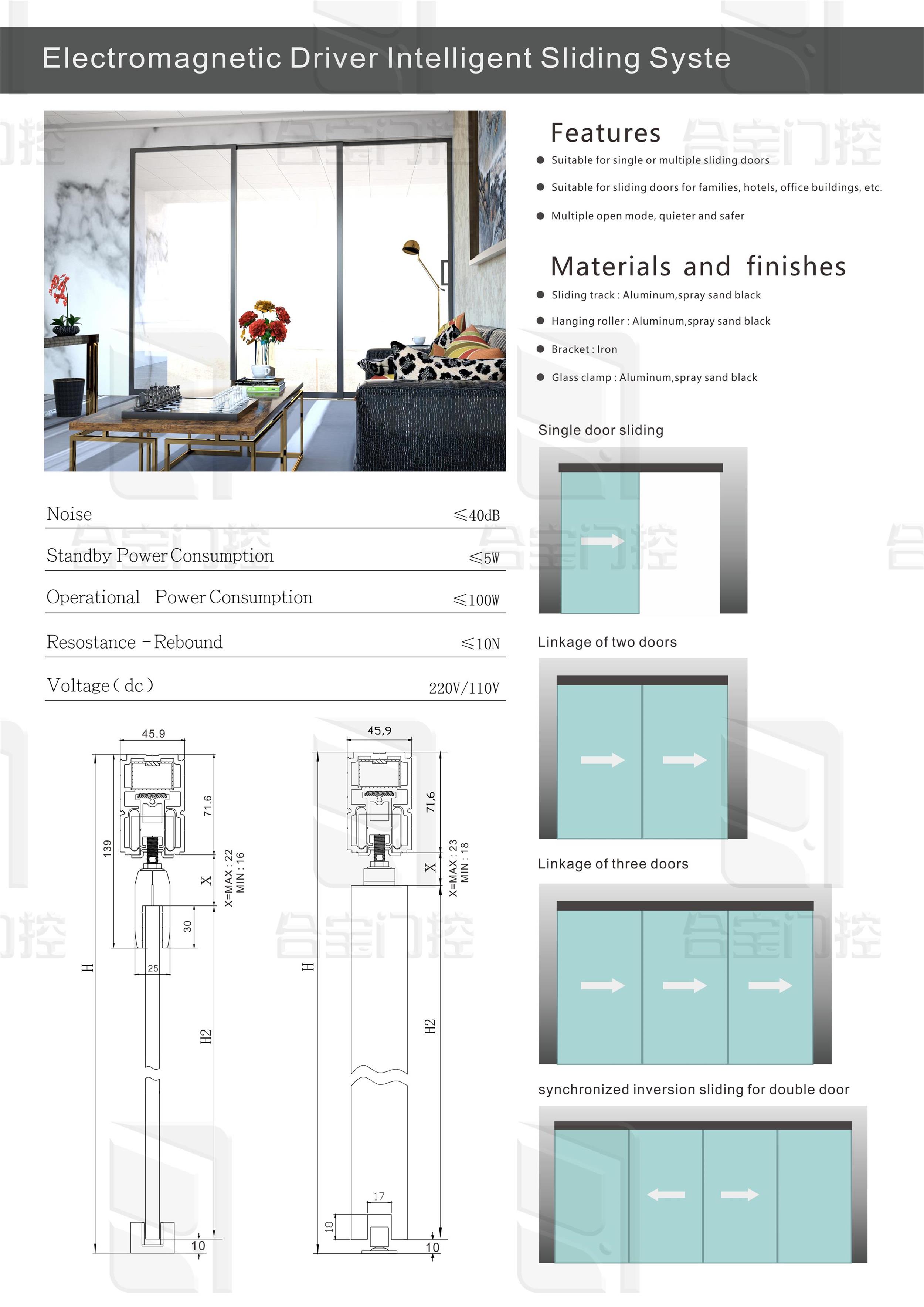

Flexible System Combinations & Upgraded Functions
Different door system combinations have customized pricing. Our system can be adapted into various door combinations.
- 1Door width is narrower than standard models.
- 2Maximum door width is theoretically unlimited within load-bearing capacity; motor adjusts speed dynamically.
- 3Anti-Block Protection: If resistance occurs during closing, the door bounces back. After 3 repeated resistances or 20s blockage, it remains open until manually reset.
- 4Door closing engagement procedure ensures seamless closing with no gap.
- 5Suitable for installation in shower rooms.
- 6Supports mobile APP for custom moving speed adjustments.
Open Point Mode: Press button to open and remain open; press again to close and remain closed.
Installation Instructions

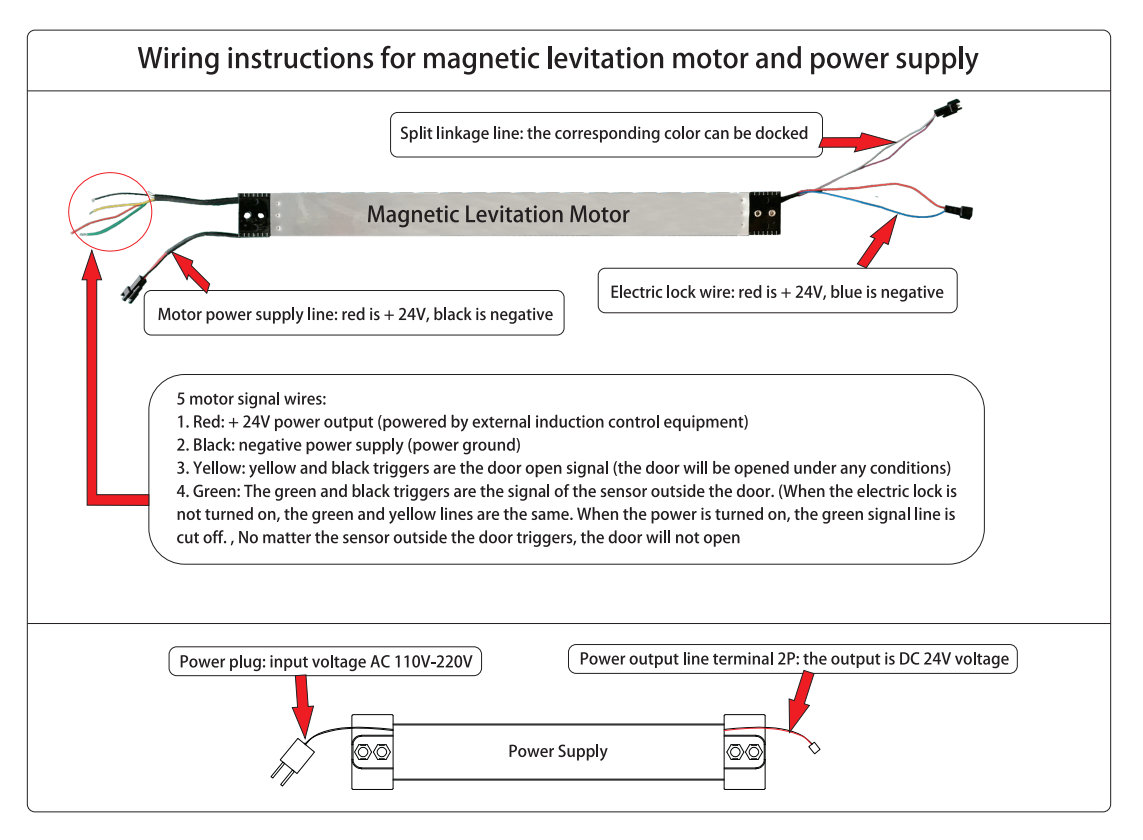

About Switch Installation

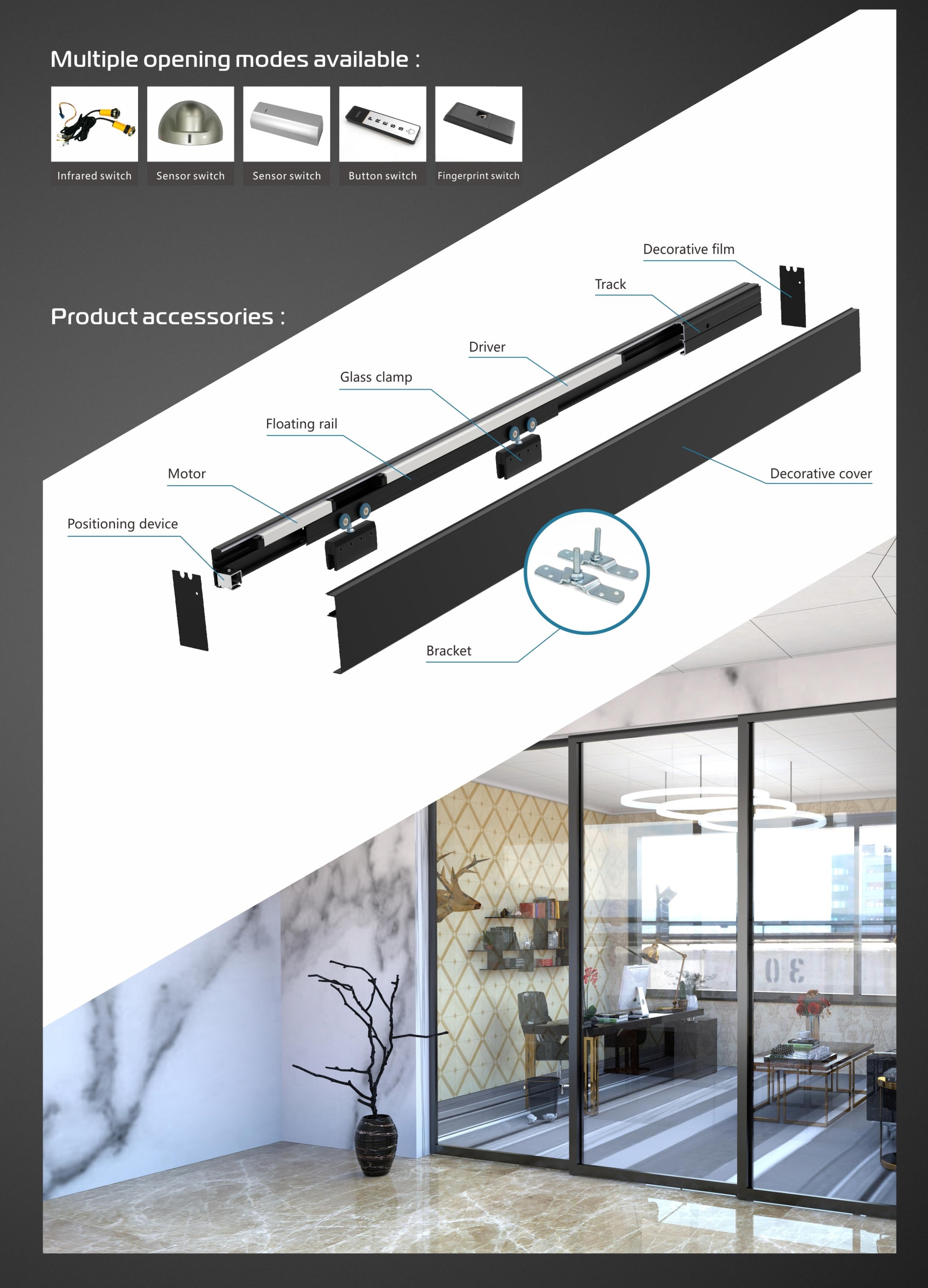

The product is pre-assembled in the factory. To connect external switches—such as sensor switches, voice control modules, remote controls, MAGIC SWITCH, face recognition, password/fingerprint access—simply connect the signal wires. Connection is easy using the color-coded principle: connect same color to same color wire.

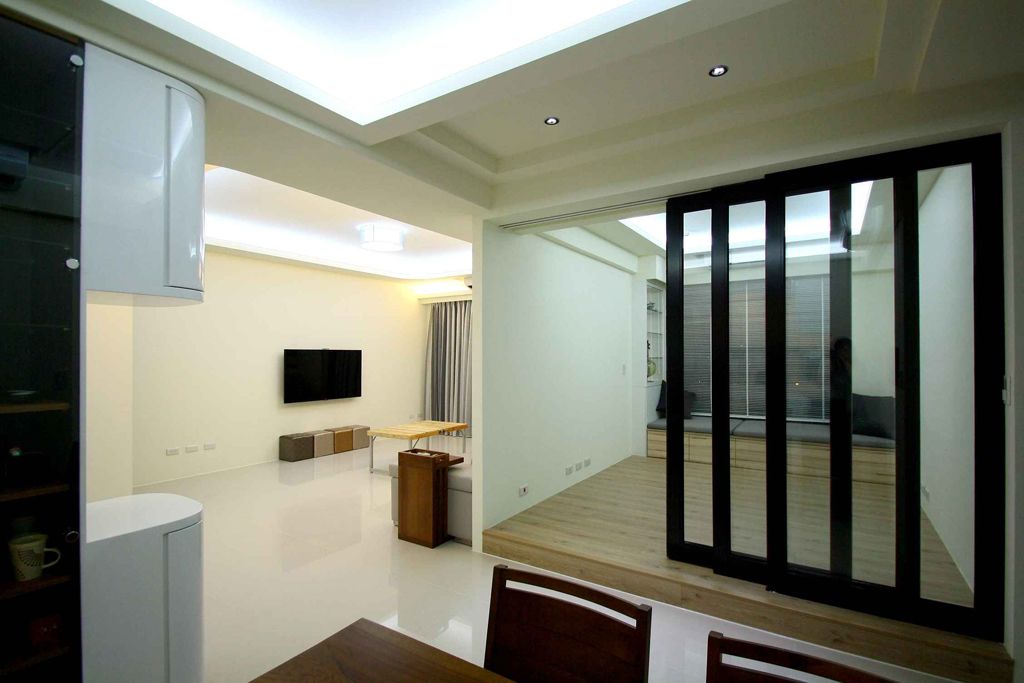

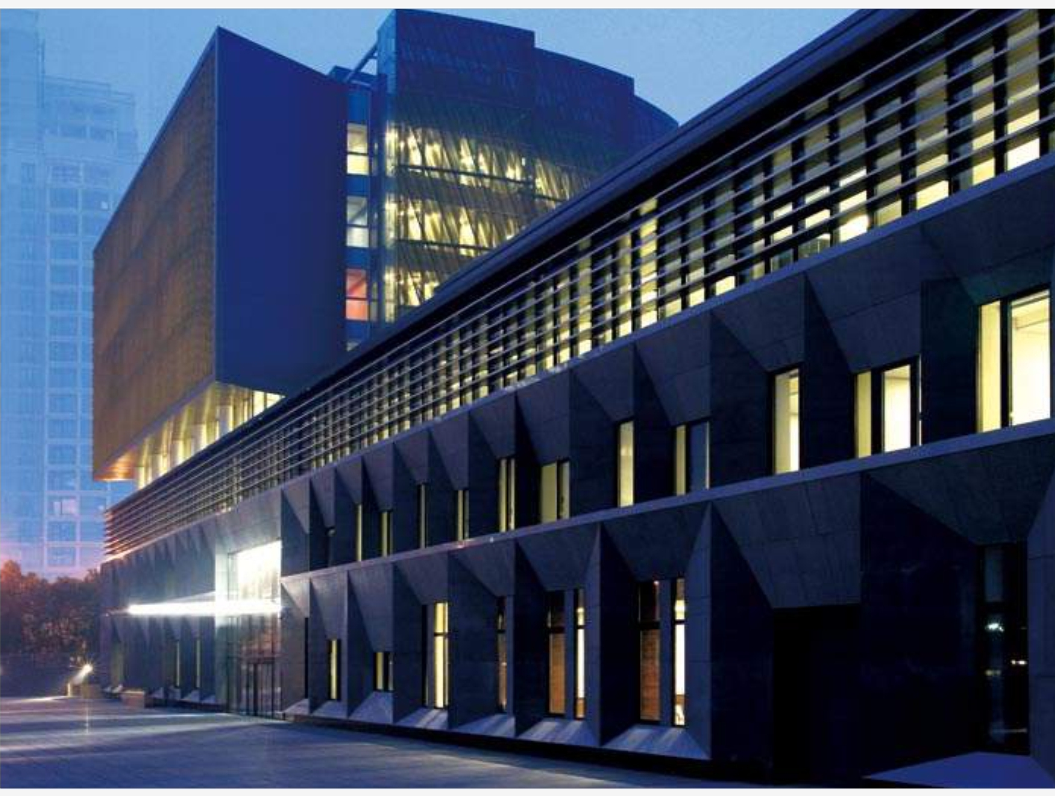

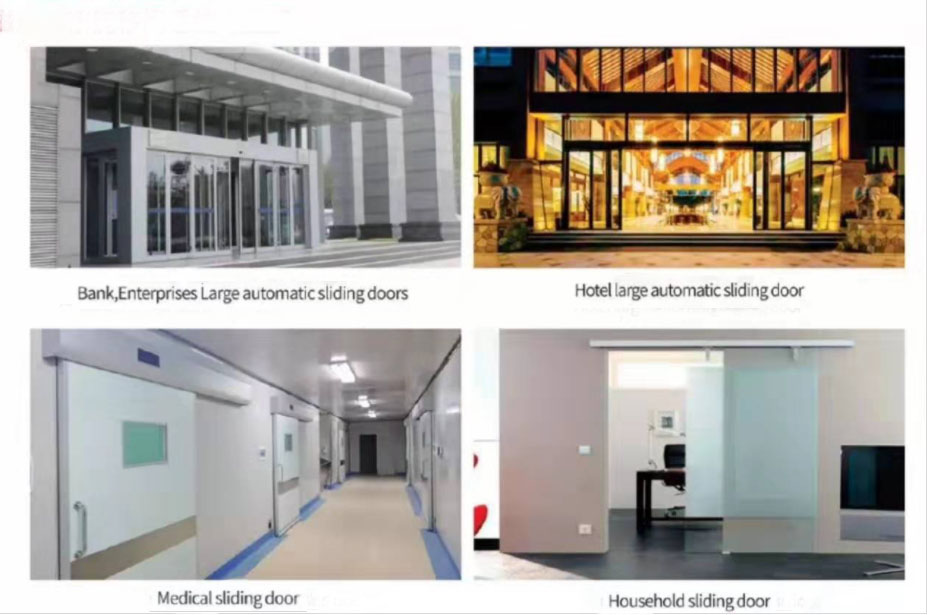

Application Effect

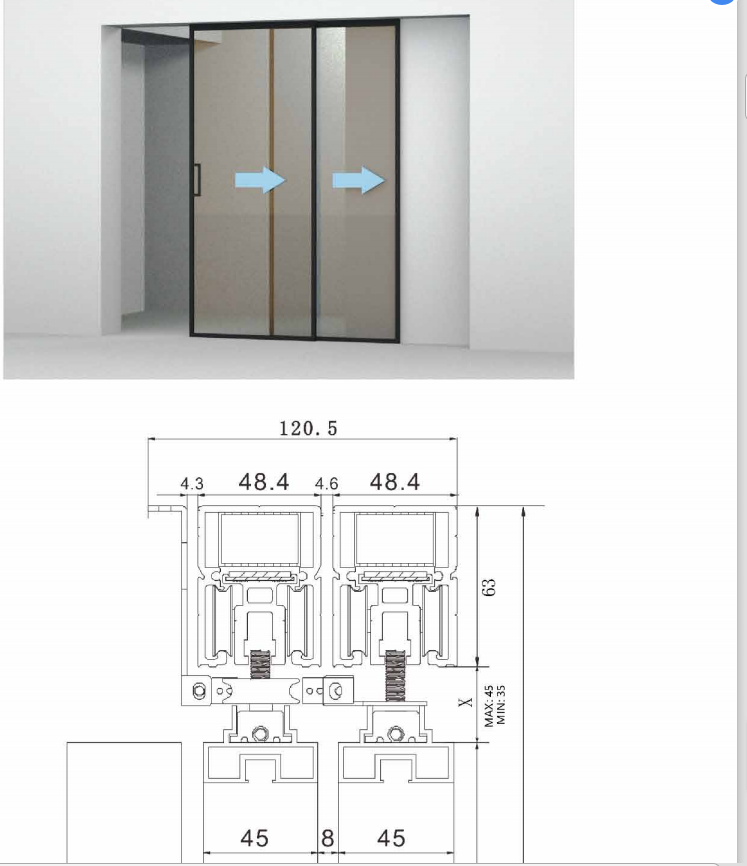

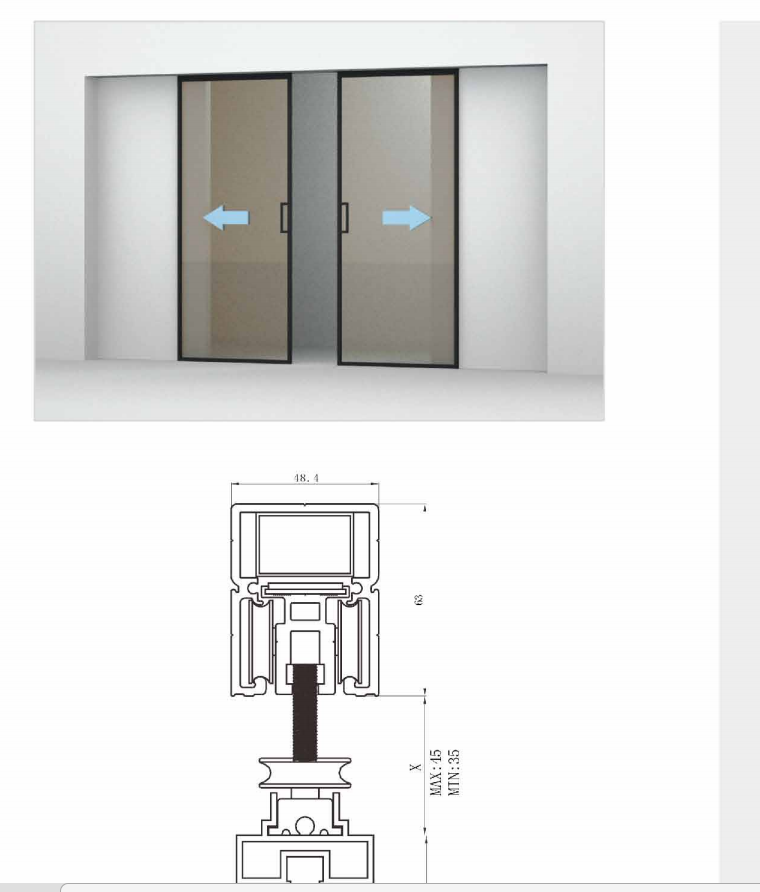

Recommend Products
Company Profile
Frequently Asked Questions
What is the expected lifespan of this magnetic levitation door system?
The magnetic levitation door system is tested for extreme durability, with a service life reaching up to 1 million operational cycles.
How quiet is the door during operation?
The system features a super silent operation with a noise level under 40dB (<40dB), ensuring smooth sliding with zero friction noise.
What safety features are included to prevent pinching?
It is equipped with an anti-pinch safety mechanism (resistance-rebound force ≤10 N). If obstacle resistance occurs 3 times during closing, the door remains open for safety.
How does the door function when the power is turned off?
In the event of a power outage, the door automatically opens and functions smoothly like a standard manual sliding door without added resistance.
What types of control switches can be connected to the system?
You can easily connect sensor switches, voice control systems, remote controls, magic switches, face recognition, password/fingerprint sensors, and mobile APP control using simple color-matched signal wiring.
