SAYYAS Aluminum Clad Wood Window Minimalist Slim Frame Panorama View Casement Window Manufacturer China
Product Description
Product Highlights
Aluminum Wood Composite Windows
The W-SL110-IWS is Sayyas' Qianmu 110 aluminum-clad wood inward-opening window, a composite system combining premium imported pine interior with AkzoNobel-coated aluminum exterior. The 110mm frame depth delivers structural rigidity with refined proportions.
Aluminum Clad Wood Windows
The W-SL110-IWS aluminum clad wood construction unites the natural warmth of imported pine with the industrial protection of an aluminum shell. The interior timber, finished with European water-based paint, provides authentic beauty and insulation. The aluminum exterior, coated with AkzoNobel powder with a 10-year warranty, delivers weather resistance and low maintenance.
Timber Windows
The W-SL110-IWS timber window construction features imported pine finger-jointed laminated timber, kiln-dried for stability. The finger-jointing eliminates natural defects for uniform strength, while the premium coating preserves the natural grain. The timber interior provides natural insulation and a warm, tactile surface.
Solid Wood Windows
The W-SL110-IWS solid wood construction provides natural insulation and structural stability through its premium timber interior. The imported pine core, finished with European water-based paint, delivers warmth and durability. The solid timber frame maintains its precise dimensions and beauty for decades.
Wood Window System
The W-SL110-IWS wood window system integrates timber interior, aluminum exterior, and high-performance glazing into a complete engineered solution. Every component is designed to work in harmony for optimal performance. The system approach ensures consistent quality and reliability. For a complete premium window solution, W-SL110-IWS delivers system excellence.

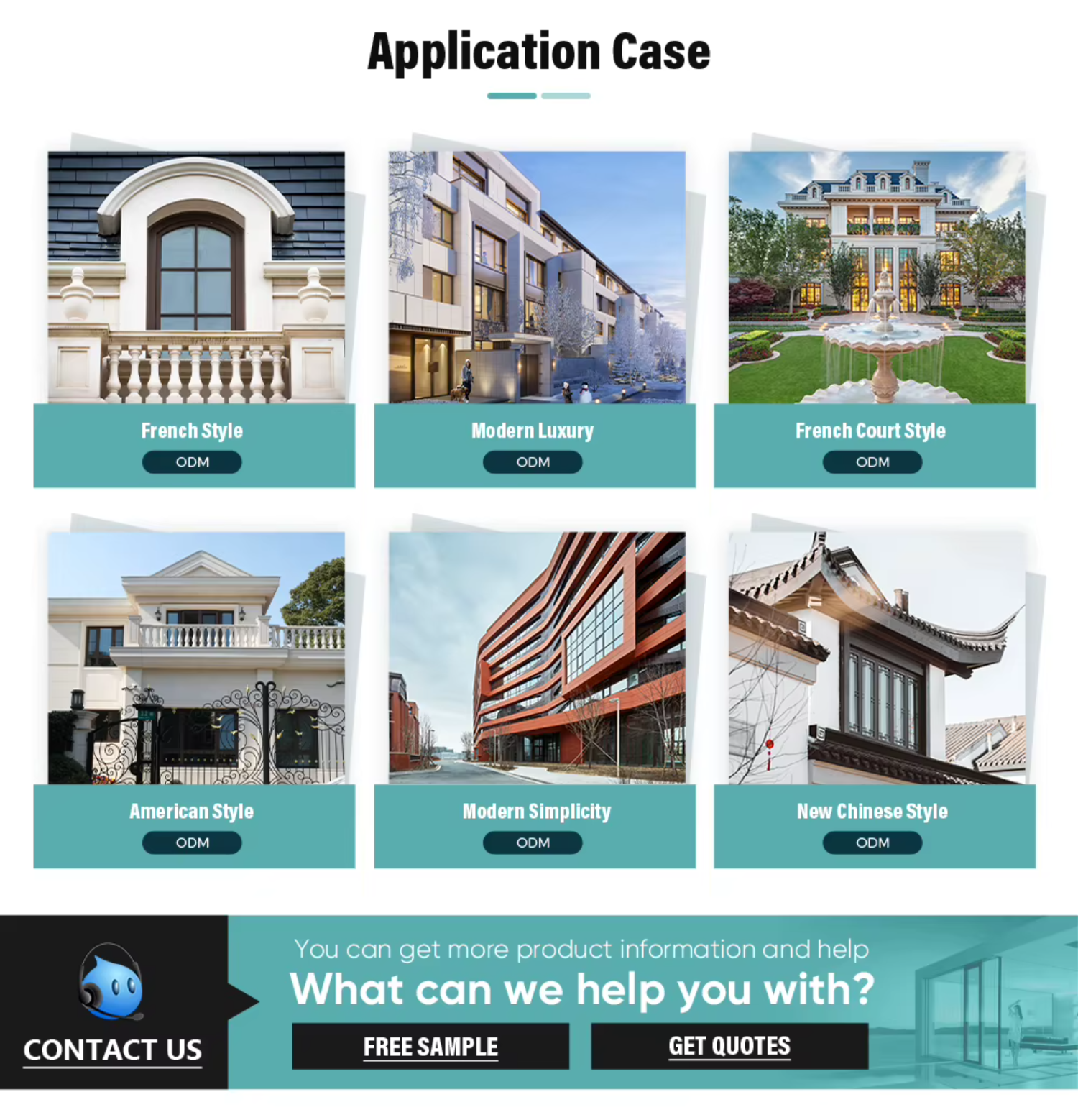

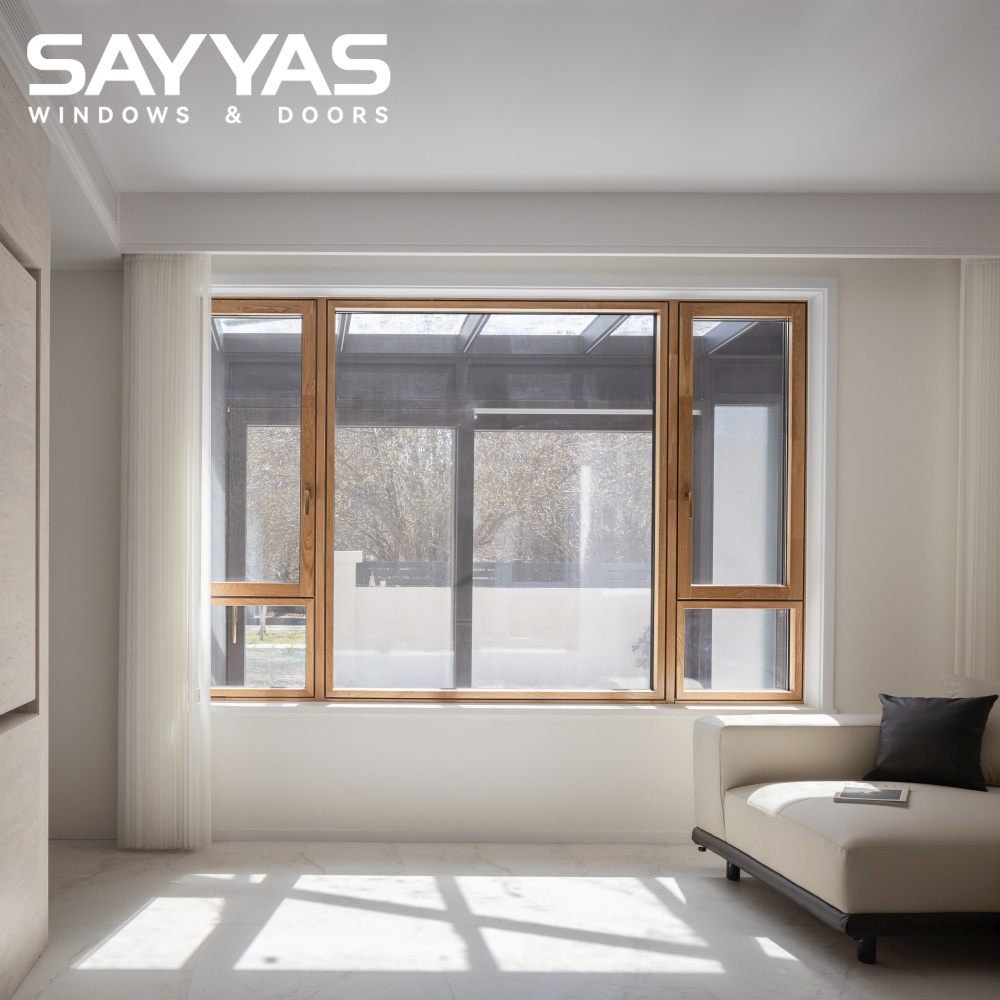

Scene Images

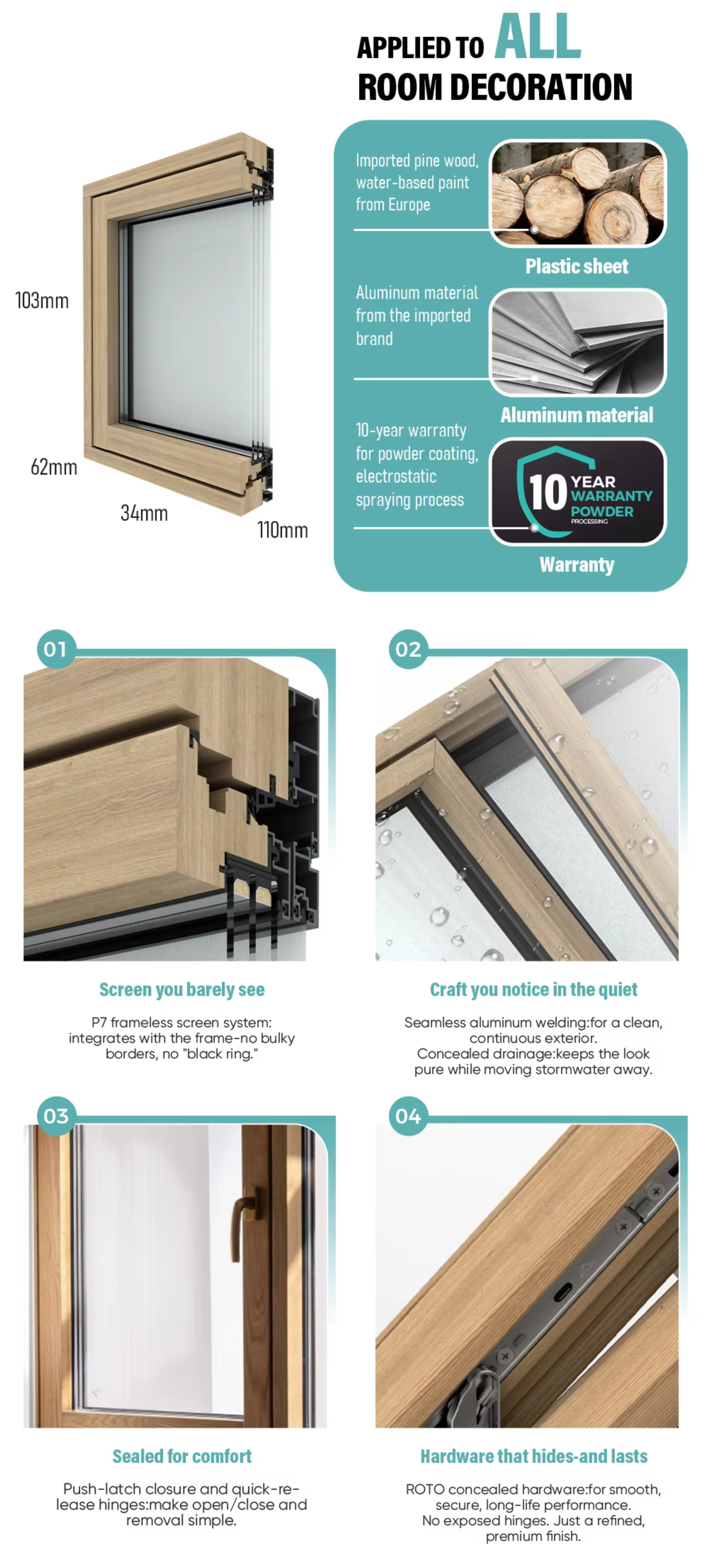

Detail Shot

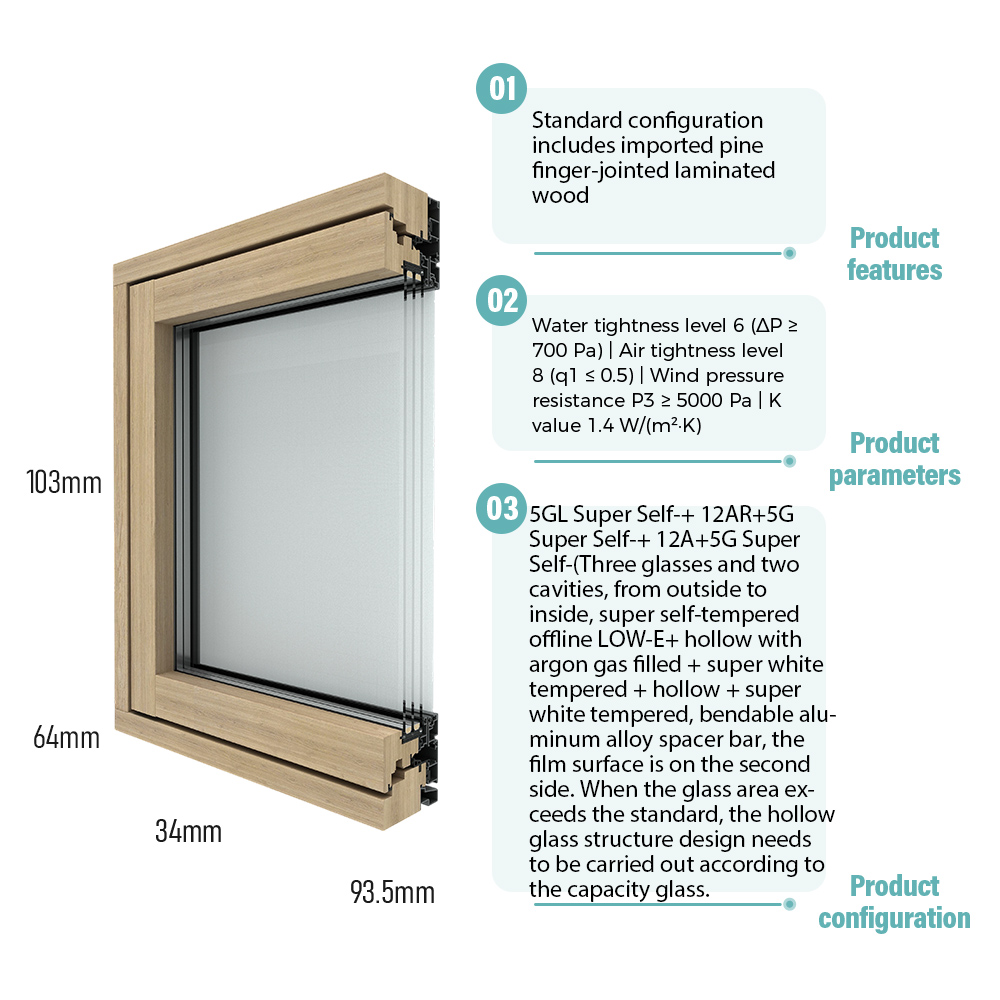

Technical Specifications
| Item | Description |
|---|---|
| Inner Wood Material | Standard: Imported pine finger-jointed laminated timber. Upgrade options refer to the customized package price in the Price Manual. |
| Wood Finishing | European imported water-based paint. |
| Aluminum Surface Treatment | Imported AkzoNobel powder coating with 10-year warranty, electrostatic spraying process. |
| Standard Colors |
Inner pine standard colors: Amber Gold, Sunset Glaze, Maple Red, Dusk Deep, Wheat Gold, Shadow Wood, Dark Olive. Outer aluminum standard colors: Satin Gray, Wild Goose Brown, Night Black, Mist Blue, Strong Tea Brown, Cloud White. |
| Glass | Standard configuration: 5GL ultra clear +12AR+5G ultra clear +12A+5G ultra clear (triple pane two cavities, outside to inside, offline LOW-E + argon filled insulated glass + tempered ultra clear glass + insulated glass + tempered ultra clear glass, bendable aluminum spacer, coating on the 2nd side. For oversized glass area, insulated glass structure design shall follow glass capacity. Glass upgrade available with extra cost as per Price Manual. Fixed glass ≥8G must have movable glass noted on drawings. No extra charge for movable glass). |
| Hardware | Standard: Germany Roto 13 series concealed hardware, large lock block, stopper. |
| Handle | SenEagle customized high-grade handle from Germany Hoppe. |
| Screen Window | Standard: P7 integrated screen window with handle lock. Optional 5G mesh & alloy mesh. Key lock available upon drawing note. Horizontal beam required when screen height ≥2700mm. P6 screen not available. |
| Frame Sash Sealing Strips | 4 EPDM gaskets (corner joint for screen sash & aluminum corner, corner injection welding for main frame seal, shear & bend for others); 1 four-in-one coated gasket (shear & bend process). |
| Inner & Outer Glass Sealing Strips | Hard & soft co-extruded EPDM gaskets, shear & bend process. |
| Glass Accommodation Range | Standard straight edge (front installation). Opening sash: 28-39mm; Fixed sash: 28-63mm. |
| Performance | Water tightness Class 6 (ΔP ≥700Pa), Air tightness Class 8 (ql ≤0.5[m³/(m·h)]), Wind resistance (P3 ≥5000Pa), K-value: 1.4W/(m²·K). |
Other Product Images
ABOUT THE SUPPLIER

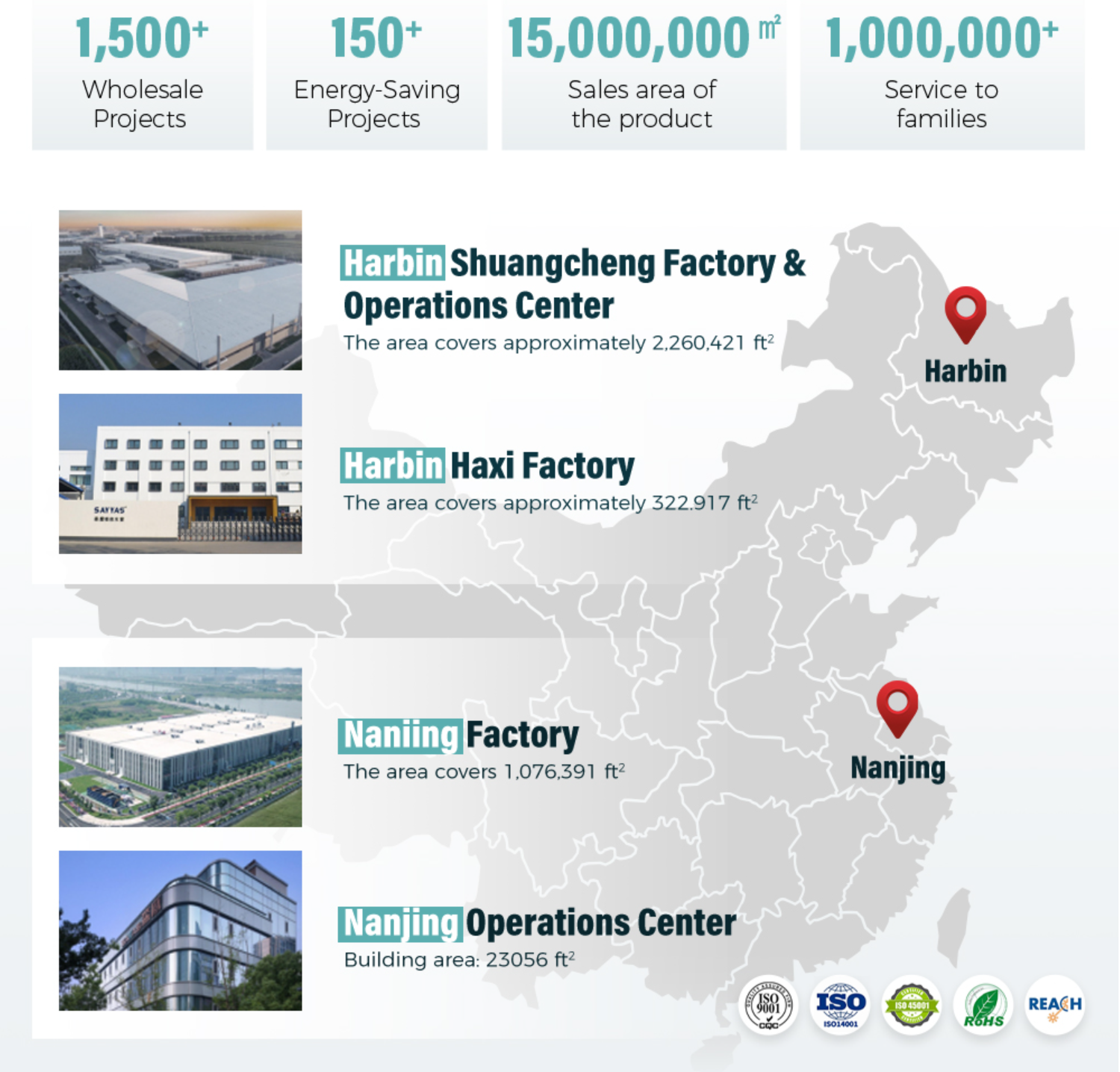

Founded in 1998, SAYYAS is China's first and currently the only publicly listed company in the windows & doors industry (stock code: 301227). SAYYAS was the first to introduce German wood windows and their associated technologies and complete production lines to China, capturing over 25% of the segmented market share. According to industry associations, SAYYAS has ranked first in production scale and market sales for many consecutive years. The production base covers a total area of approximately 150 hectares, with a total building area exceeding 270,000 square meters and a production capacity of over 2,000,000 square meters. Currently, SAYYAS has established an industrial layout with 2 centers, 2 locations, and 3 factories in Harbin, Nanjing.

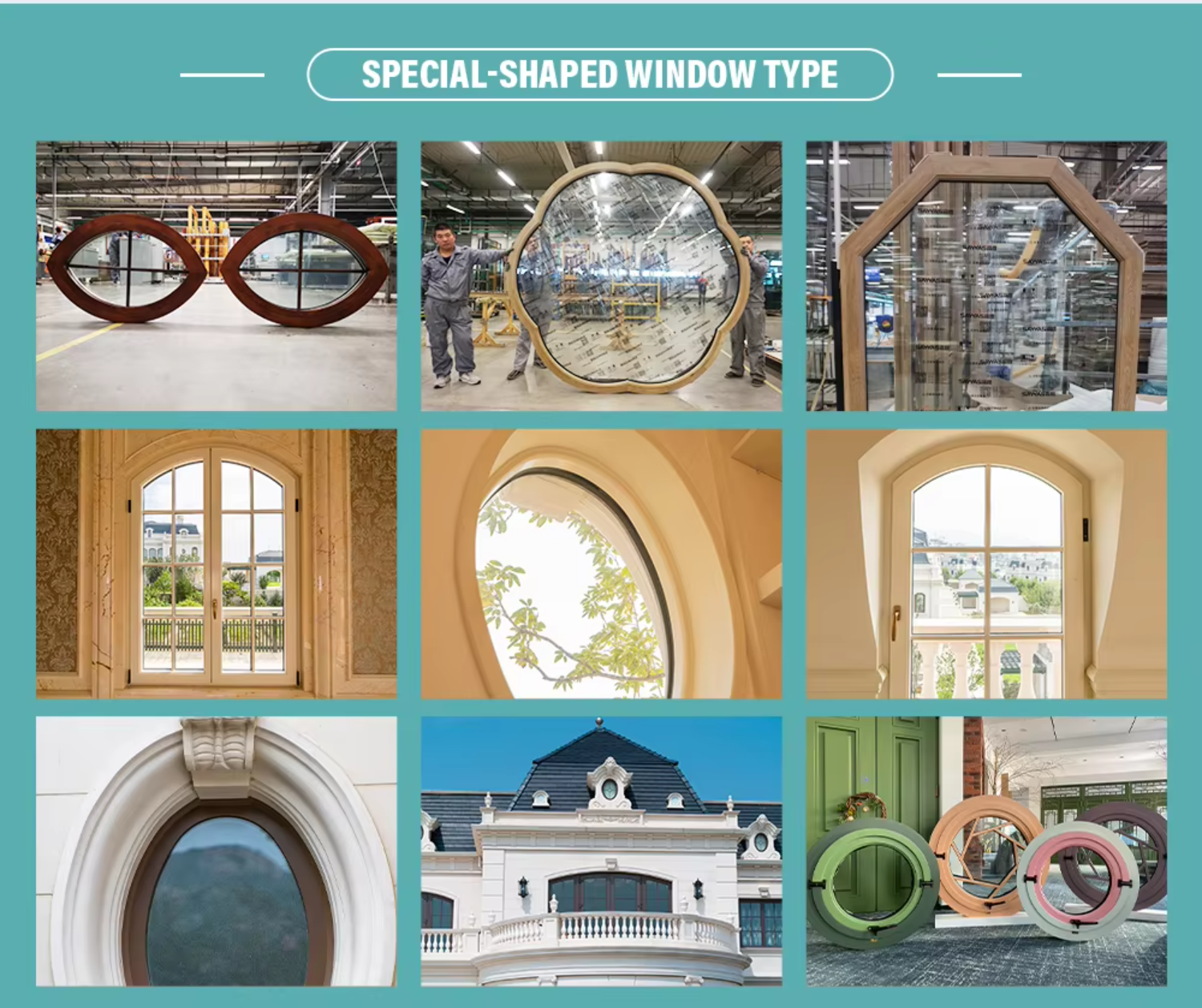

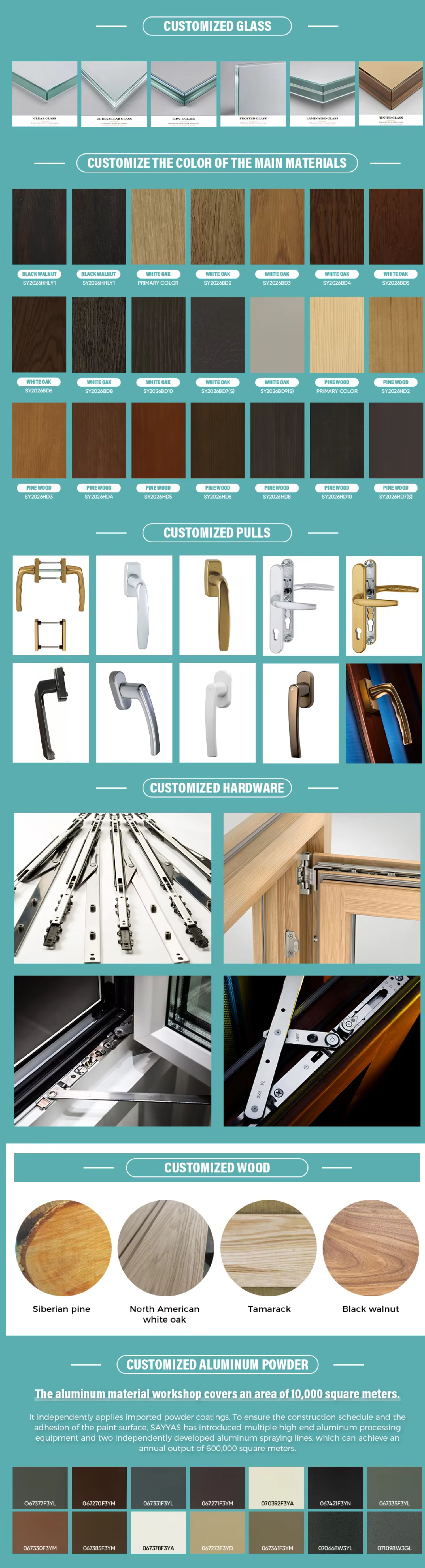

Customization Capabilities

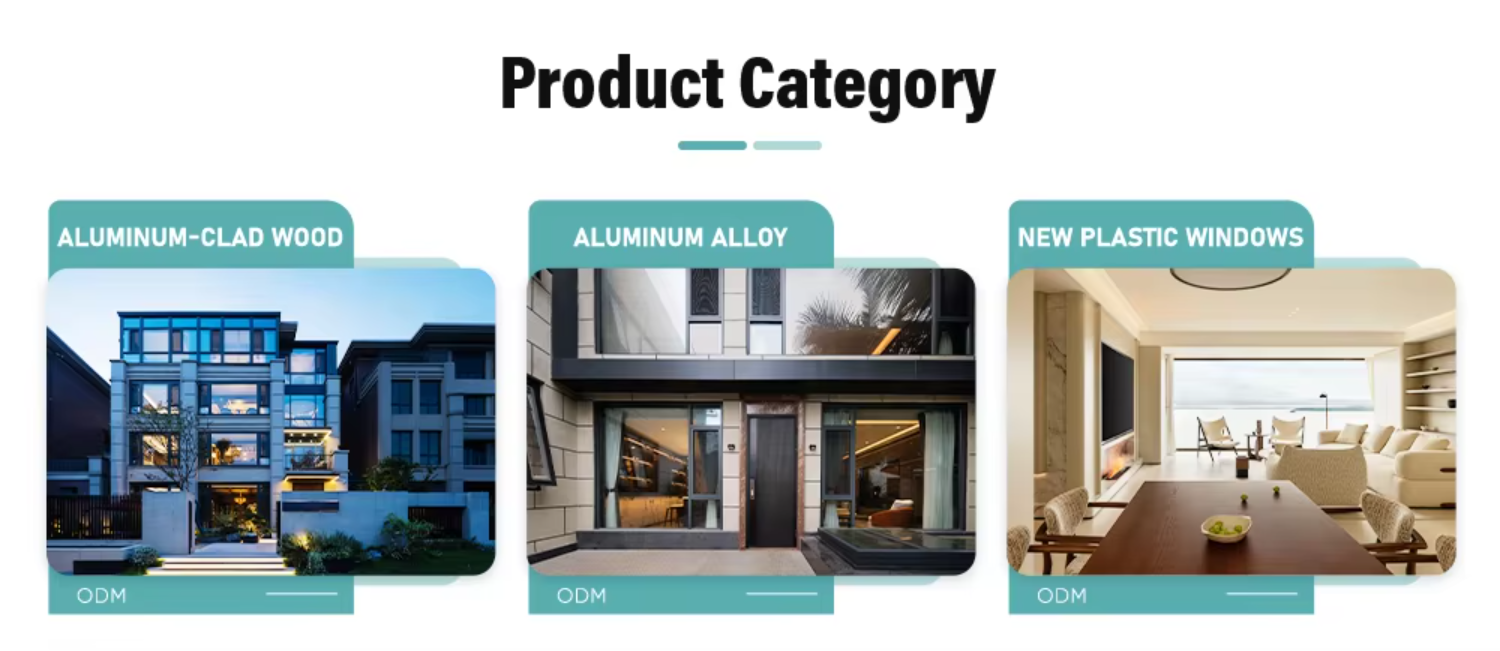

Company Overview

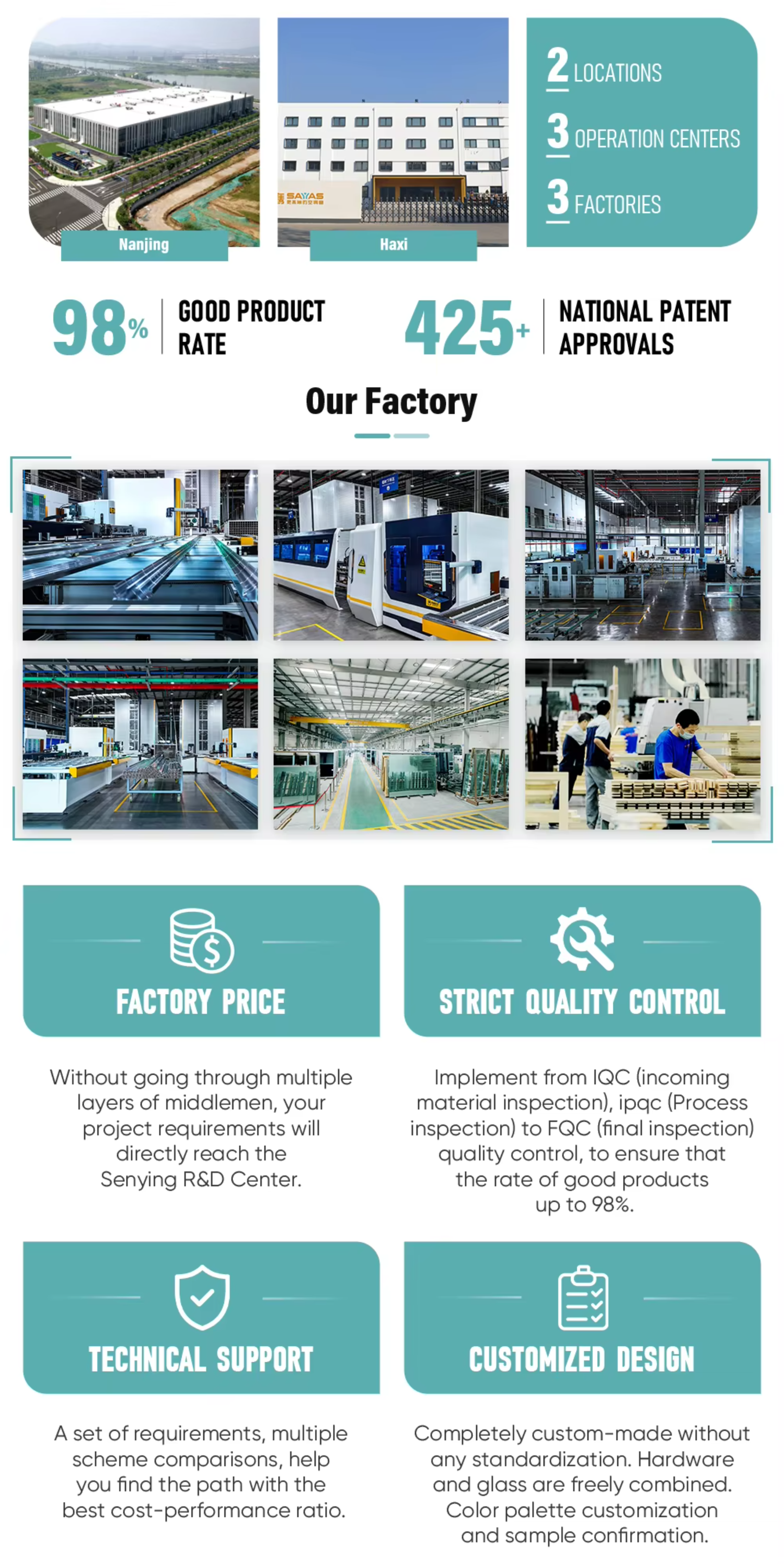

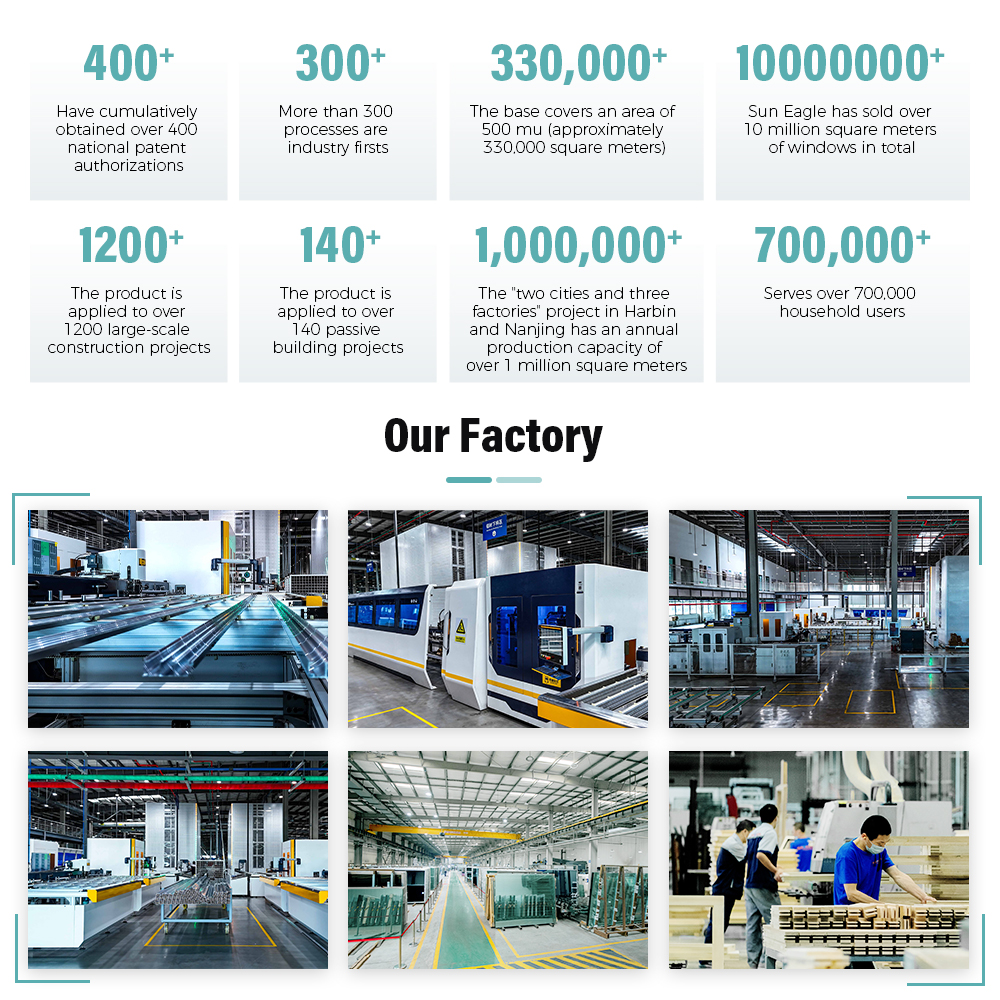

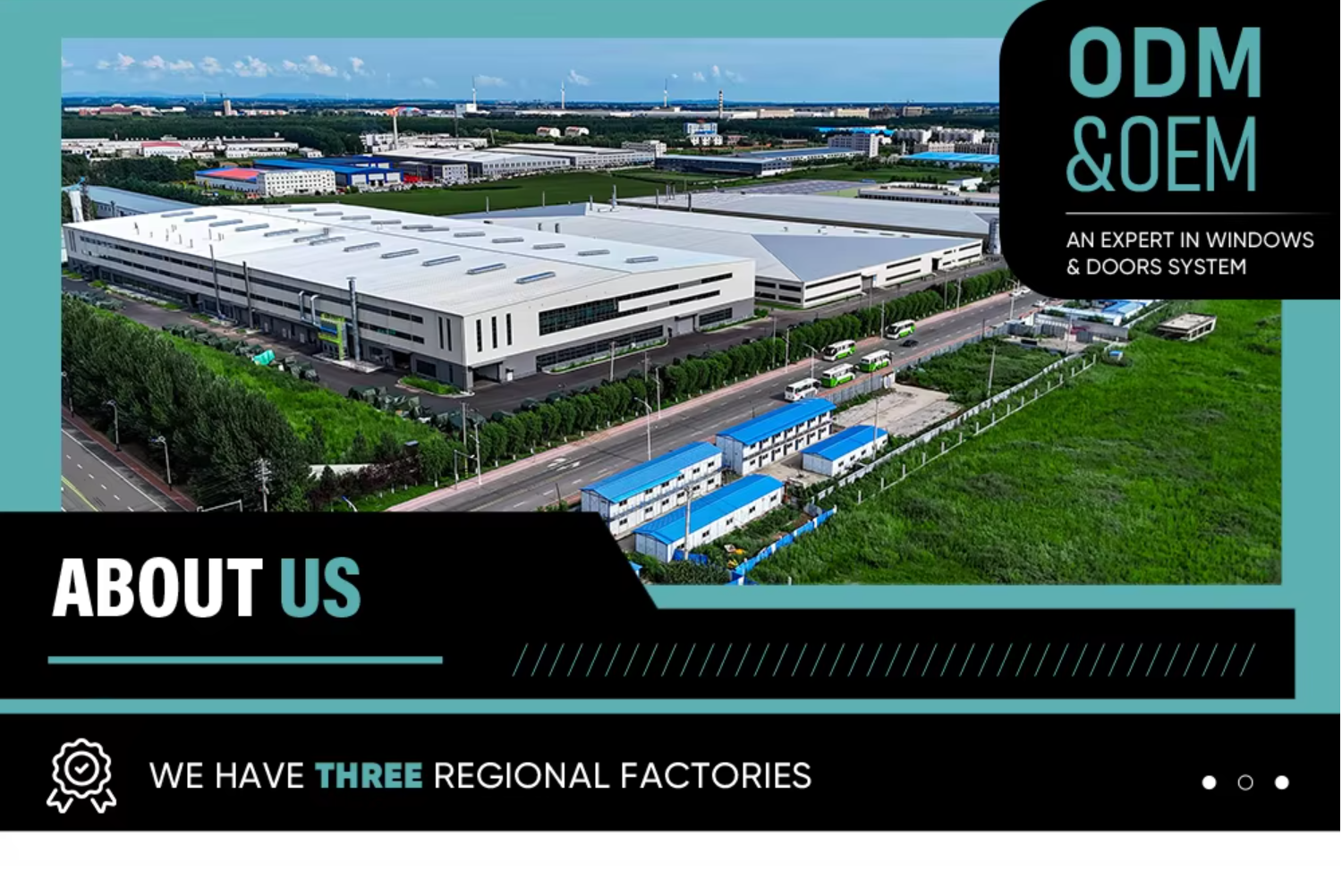

Factory Profile
Competitive Advantages

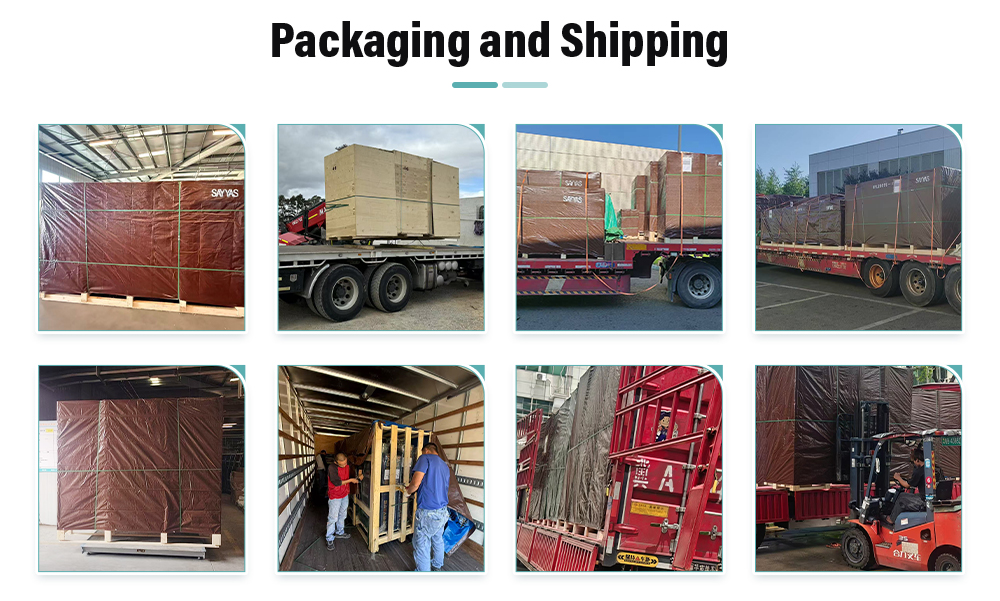

Packaging & Shipping Specifications
Frequently Asked Questions
Are you a factory or a trading company?
SAYYAS is a manufacturer and a publicly listed company on the Shenzhen Stock Exchange (Stock Code: 301227). We own two manufacturing bases in Harbin and Nanjing, China, covering a combined area of 330,000 square meters with over 1,400 employees. We are the world's largest aluminum-clad wood window manufacturer and the first Chinese window company to go public with whole-window as its core business.
Can we do a video factory tour before placing an order?
Yes. Live video tours for both bases cover raw material storage, production lines and QC stations on request. For serious project clients, we arrange exclusive video talks with production and QC teams.
What passive house certifications do your windows hold?
Our products meet global standards: US NFRC/NAMI/SGCC/IGCC, Canada CSA, Australia Standardmark/AGWA, EU CE, Japan fire rating, ISO9001. Full third-party test reports on air/water/wind resistance & thermal data are available on demand.
What materials are SAYYAS windows made of?
Three product lines: core aluminum-clad wood (6060-T66 aluminum outside, oak/larch/pine inside, S86/F120 etc.); multi-cavity thermal-break aluminum windows; cost-effective aluminum-clad uPVC (DC88/DC105). This structure ensures insulation, durability and warm indoor wood texture.
What is your production capacity and lead time?
Annual output: 400,000 ㎡ wood-aluminum, 200,000 ㎡ aluminum, 100,000 ㎡ uPVC windows. Standard orders: 25-35 working days post deposit; big projects: 35-50 days. Shipping: FOB Dalian/CIF global, full/less container & air transport with real-time production updates.
Do you provide installation support and warranty?
Each order has paper & PDF installation guides with diagrams, free remote video installation support; large projects offer paid on-site supervision. Warranty: wood frame 10y, aluminum & hardware 5y, glass & gaskets 2y, spare parts in stock.
