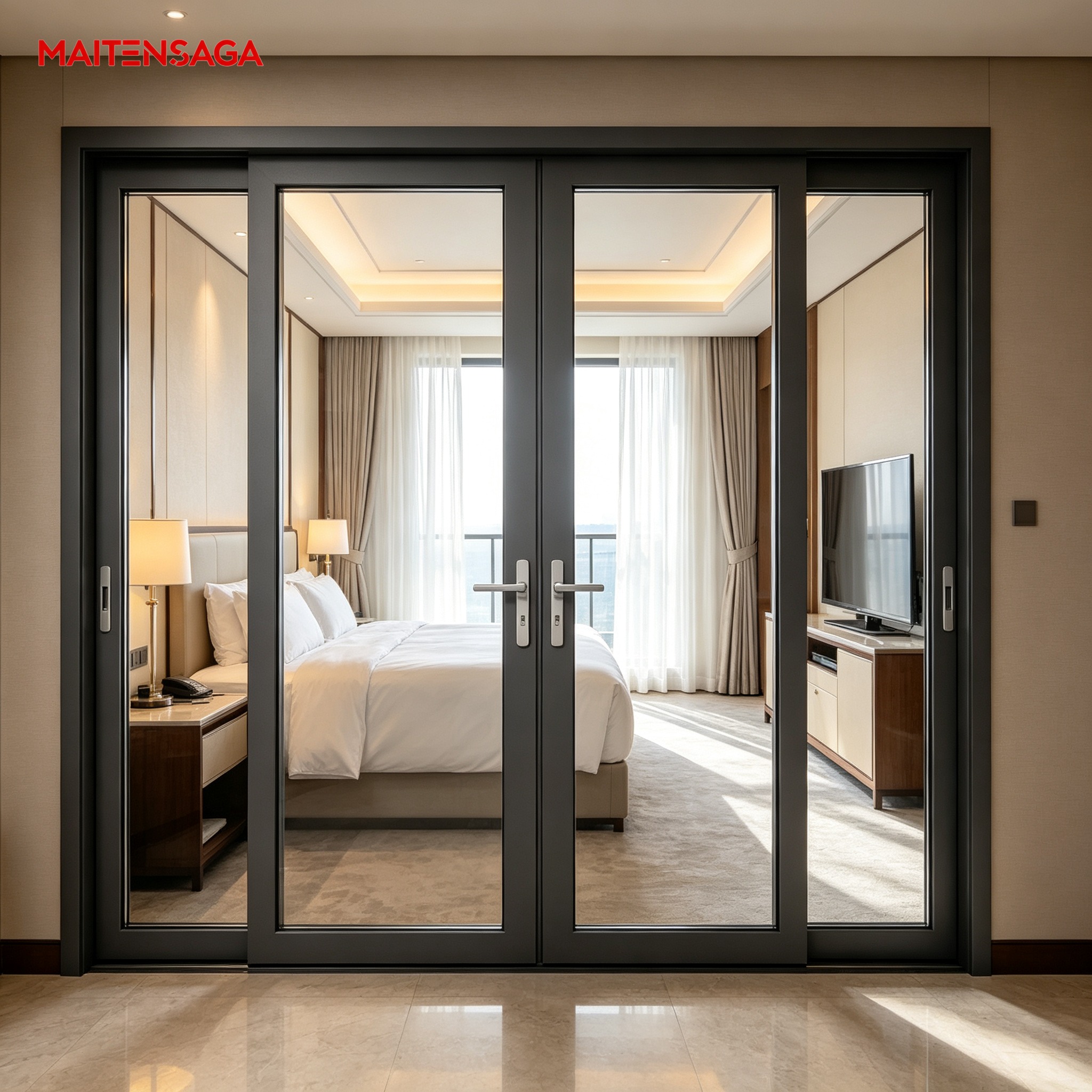

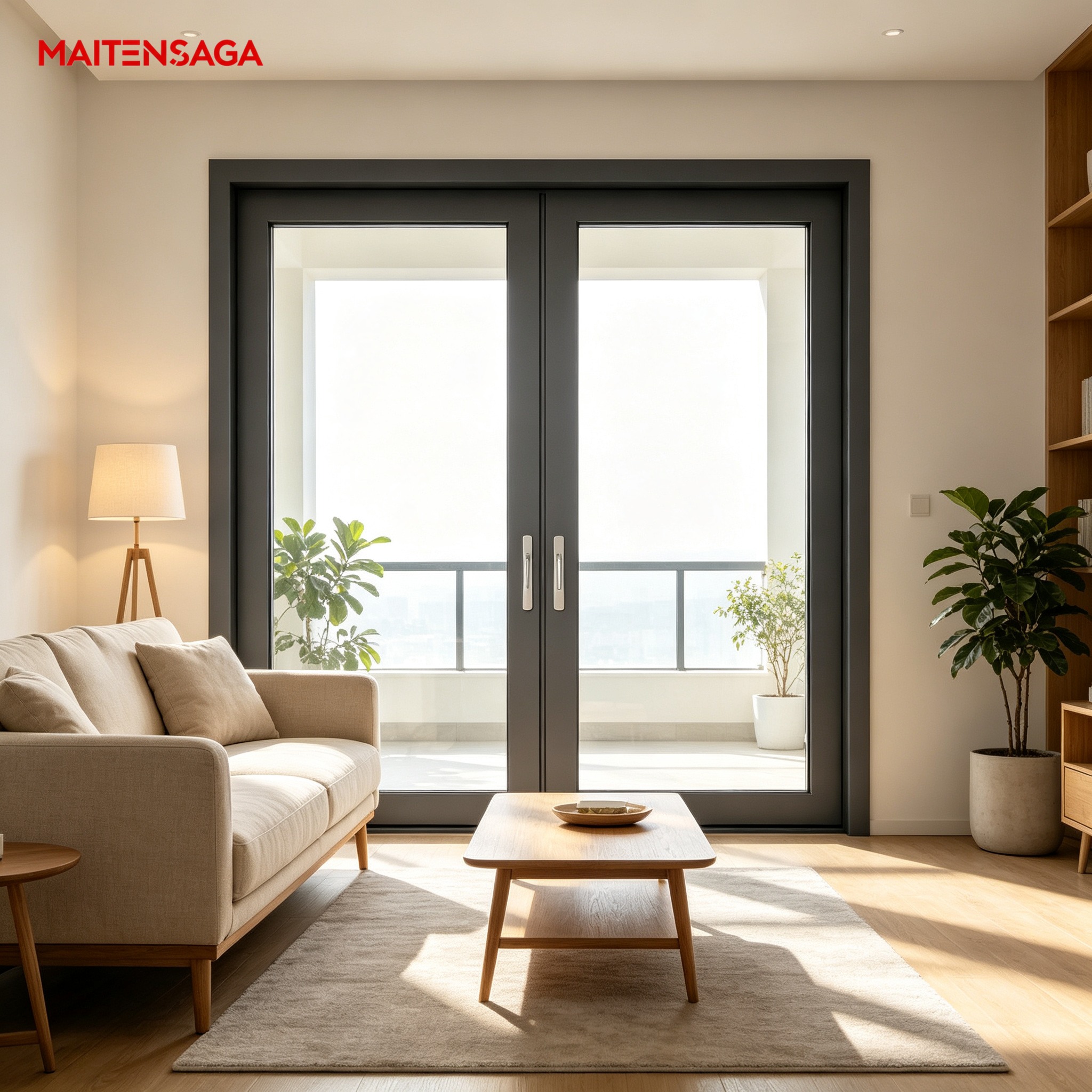

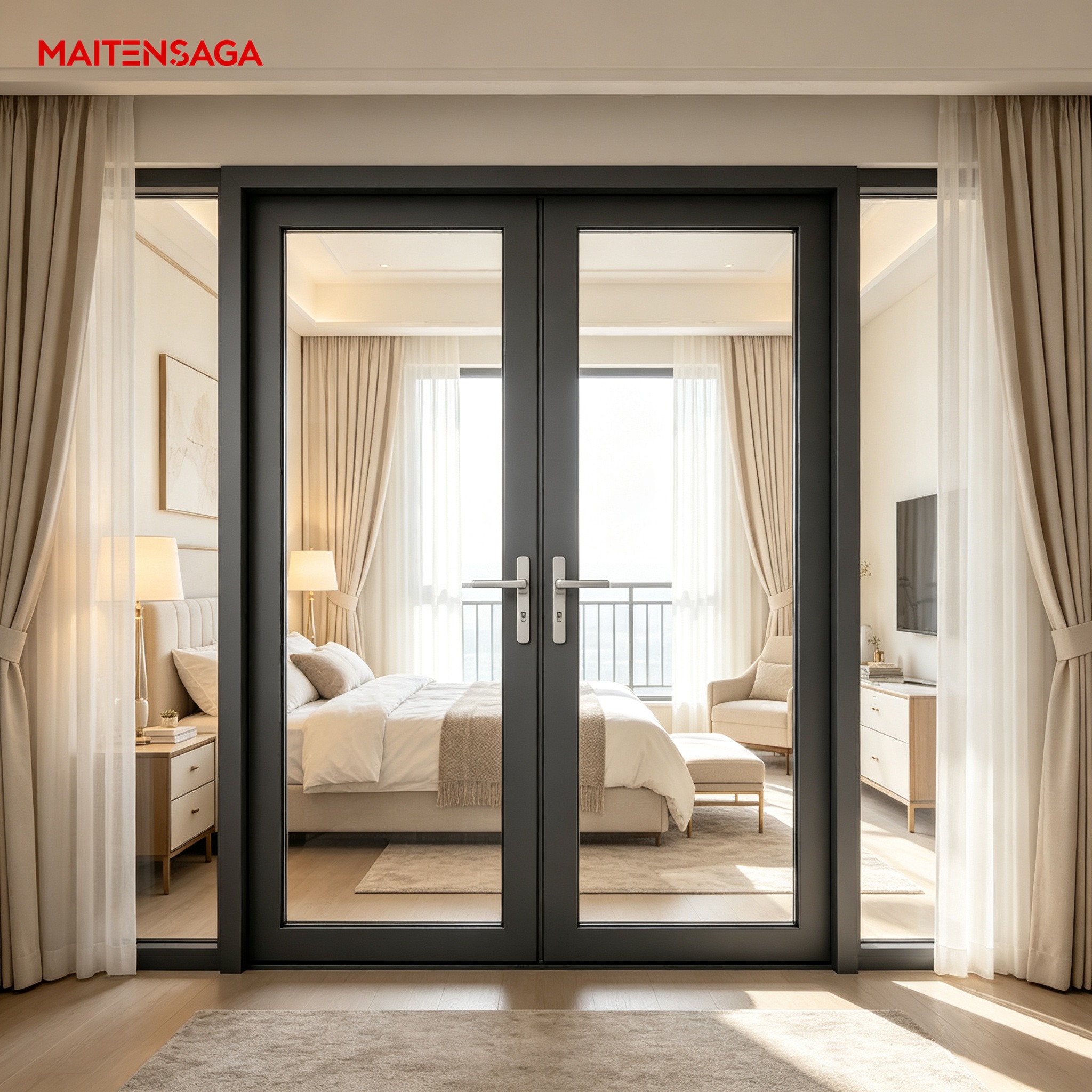

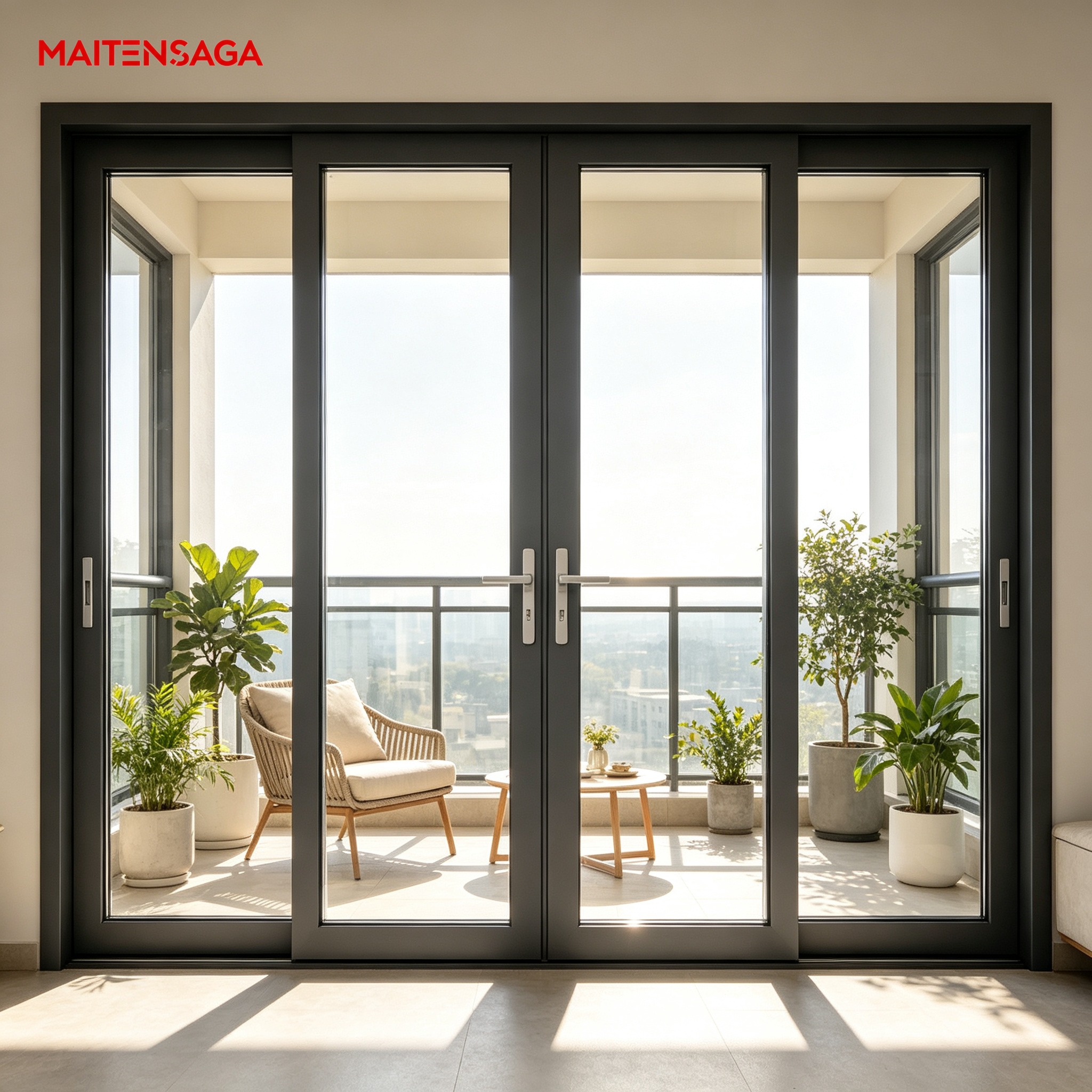

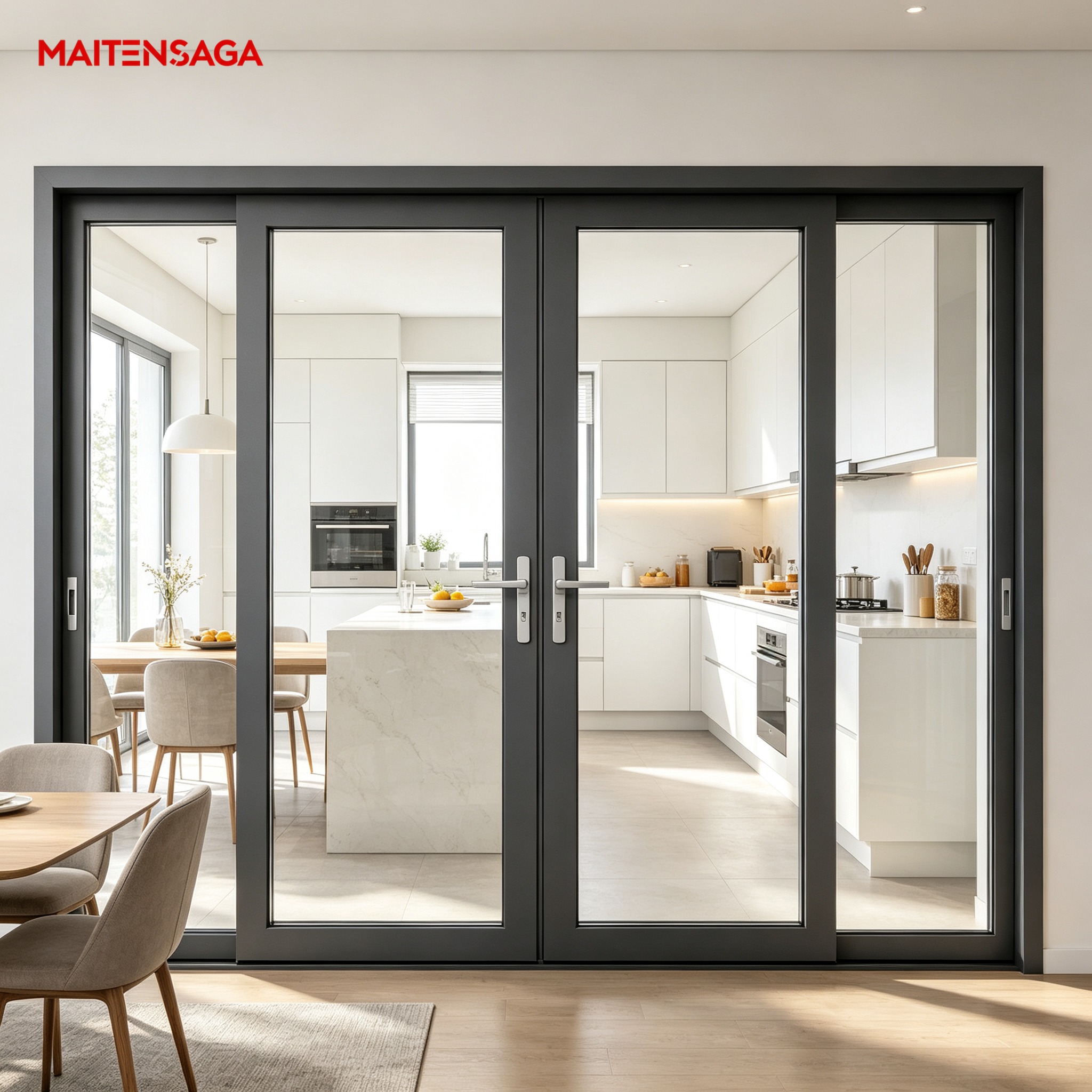

Aluminum Casement Window and Door System Custom Thermal Break Design for Villa and Residential Projects

Product Description

Products Description
Products Description
Specification
Item Specification
Frame Material Aluminum alloy
Glass Type Automotive Grade Tempered Glass Double / Triple Tempered Glass Laminated / Lowe/Reflective Tinted Glass
Surface Treatment Powder Coating, Anodized, Wooden Grain, PVDF Coating
Function Waterproof, Soundproof, Energy efficient
Opening Mode Inward Opening, Tilt&Turn, Outward Opening, Awning Opening
Product Paramenters
Profile Width Frame: 80mm / Sash: 80mm/Other customized sizes
Visible Face Width Frame: 36mm / Sash: 70mm/Other customized sizes
Thermal Break Strip Frame: 30mm / Sash: 30mm/Other customized sizes
Profile Thickness 1.8mm/2.2mm
Glass Configuration 5+20A+5 / 5+12A+5+12A+5 / Other customized sizes/black bent aluminum spacer
Product Configuration
Aluminum Profile 6063-T5 high-quality multi-cavity aluminum profiles for whole frame, Surface Treatment
Surface Treatment Standard Austrian TIGER powder coating, guaranteed no fading
Thermal Break Strip Baotai high-performance PA66 multi-cavity thermal break strip,vertical isotherm design for better insulation
Sealing Gasket Tianshang one-piece bent or welded equal-pressure gasket +EPDM gasket, aging-resistant
Hardware Guangdong Keneng Tilt & Turn Master series base-less handle,concealed hinges
Glazing Bead Beveled and square glazing beads, stylish 3D profile, simple and elegant
Screen Mesh Standard high-transparency 304 stainless steel diamond mesh,durable
Drainage Anti-backflow and anti-insect floor-drain drainage, elegant
Corner Jointing Whole-frame pin-jointed German WEI-SHI two-component glue-injected corner jointing, sturdy
Safety Round stainless steel corner protectors standard on sashes
Features Double inward-opening design, flush indoor and outdoor framesand sashes, with insulation and soundproofing cotton
Certifications
Certifications

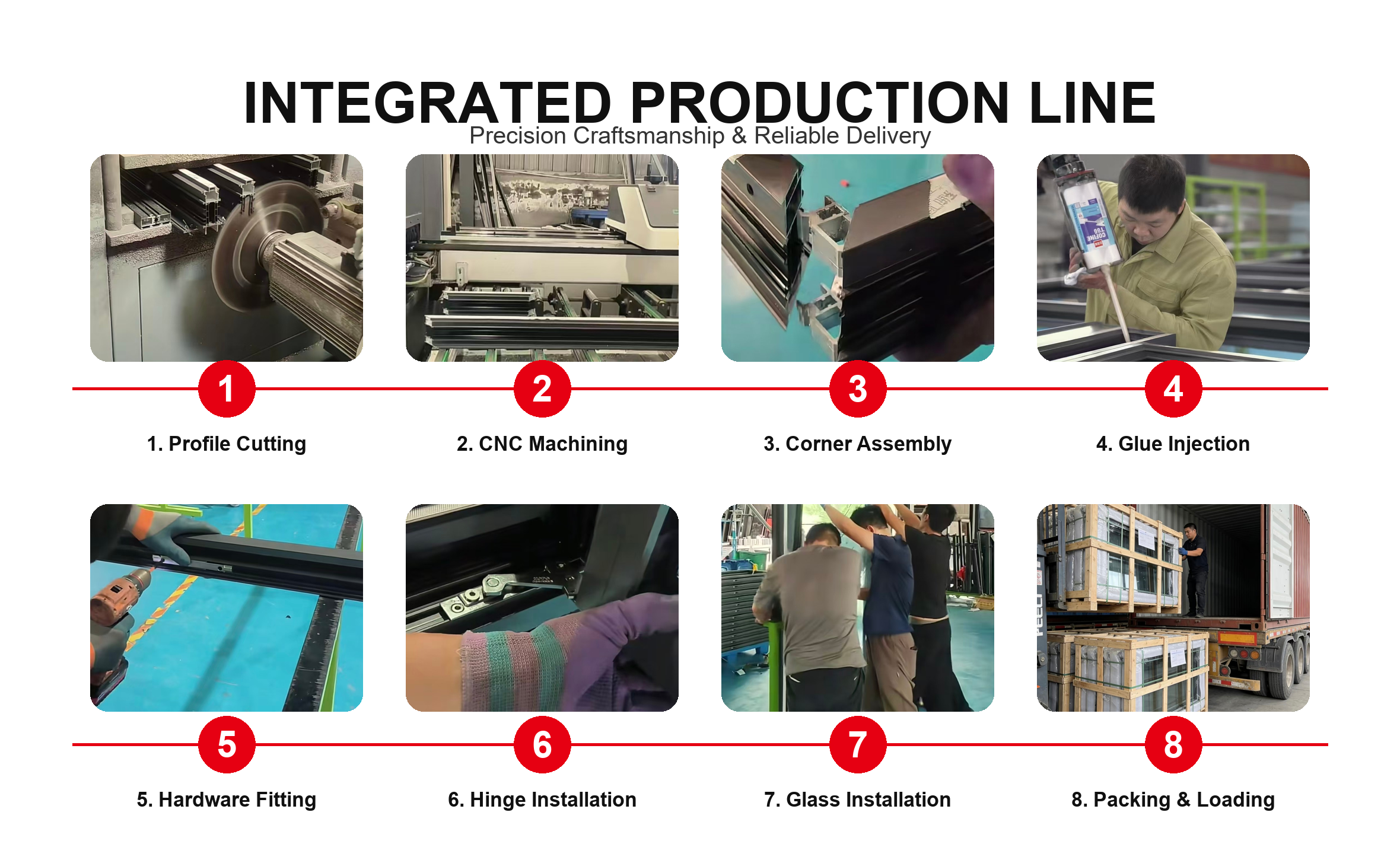

Packing & Delivery
Packing and Delivery
Company Profile

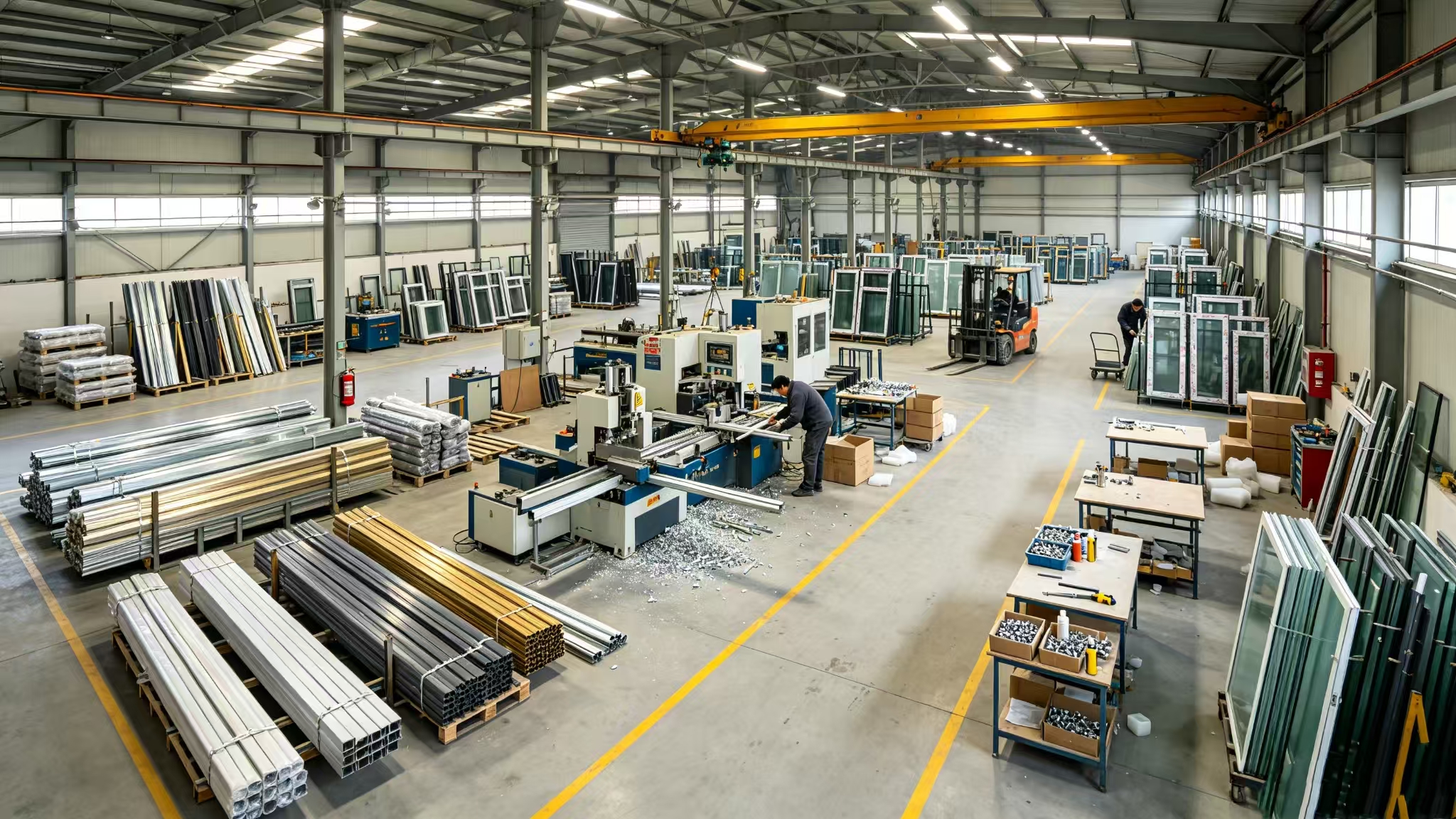

Company Showcase 1

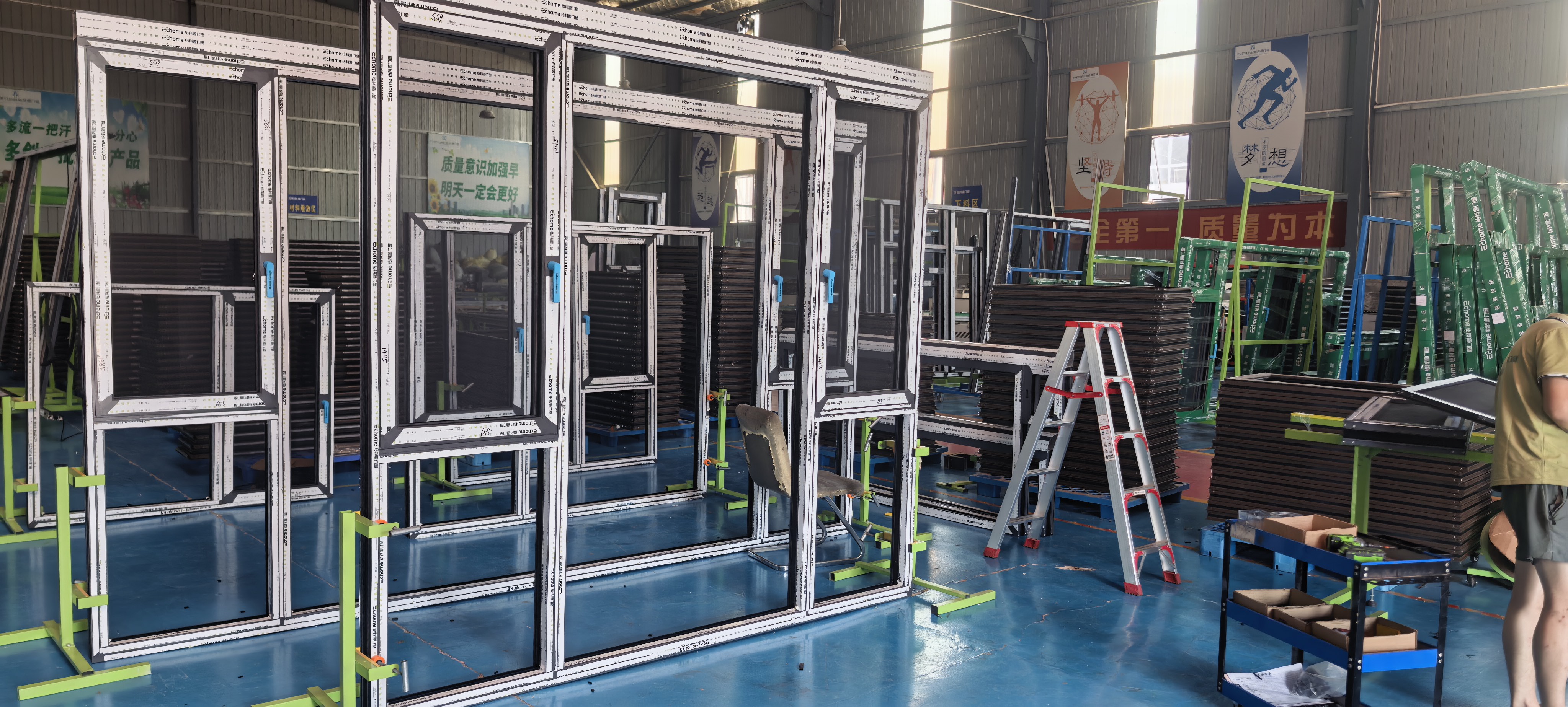

Company Showcase 2

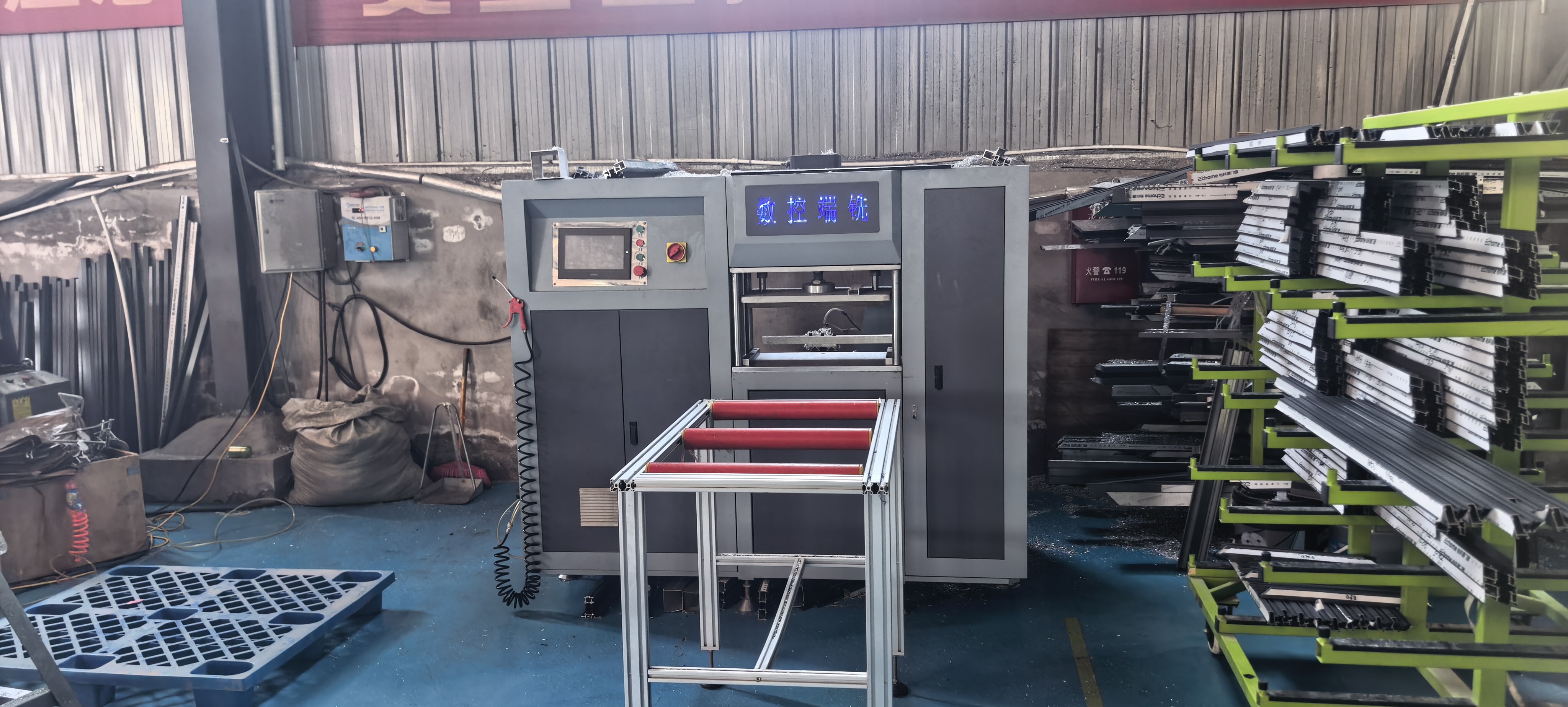

Company Showcase 3

Xi'an Maiteng Shengshi Construction Engineering Co., Ltd. is a professional enterprise dedicated to the design, production, sales and installation of glass doors and windows and related glass products. Headquartered in Xi'an, northwest China, we have served the construction market for years and grown into a trusted glass solution provider.

Our core business covers glass doors and windows, casement windows, folding windows, shower rooms, smart mirrors, art glass and related products. They are widely used in residential communities, villas, commercial complexes, hotels, offices, schools and hospitals, offering customers one-stop glass solutions combining safety, aesthetics and durability.

Casement windows feature high-quality profiles and hardware with smooth opening and excellent sealing. Folding windows maximize space and offer wide views and ventilation, ideal for balconies, sunrooms and shop fronts. Shower rooms come in various styles and sizes, featuring tempered safety glass, smooth rollers and waterproof sealing for a comfortable bathroom. Smart mirrors integrate touch lighting, anti-fog, Bluetooth speakers and time and temperature display for a smarter lifestyle. Art glass, made through lamination, engraving, painting, hot melting and sandblasting, turns ordinary glass into decorative works for partitions, feature walls and ceilings.

Adhering to quality first, integrity and customer focus, we provide full support from design, fabrication and installation to after-sales service for both new projects and renovations. Looking ahead, we will continue to innovate and strive to become a benchmark in the glass industry.

Frequently Asked Questions
Q1 Do you provide free samples?
As our windows are high-value, customized products, we currently do not provide free samples. However, we offer profile samples at a basic cost, and the sample fee can be deducted from the total amount of your formal bulk order.
Q2 Can you provide OEM or ODM services for our projects?
Absolutely. We have a professional R&D team that can customize sizes, colors, glass types, and hardware configurations according to your specific architectural drawings and requirements.
Q3 What kind of hardware do you use for your windows?
We primarily use high-end hardware systems (such as German brands or top Chinese brands) that are tested for over 50,000 opening/closing cycles to ensure long-term durability.
Q4 How do you ensure the energy-saving performance of your windows?
We use multi-chamber thermal break profiles combined with high-quality PA66 insulation strips and double or triple-layer tempered Low-E glass to achieve excellent thermal and sound isolation.
Q5 What is your standard lead time for production?
Typically, the lead time is 25-35 days after the deposit is received and the final technical drawings are confirmed.
Q6 How are the products packed for international shipping?
We use a professional 3-layer protection system: protective film + foam corner protectors + sturdy plywood crates. This ensures zero damage during long-distance sea transportation.
