Featured Commercial & Residential Aluminum Door & Window Systems
Engineered by Changsha Wincraft Aluminum Window Tech Co., Ltd. for global importers, architectural contractors, and commercial project developers demanding structural durability, acoustic control, and thermal efficiency.
Industrial Engineering Excellence in China Aluminum Fenestration & Office Partition Manufacturing
As modern architectural design shifts toward high-translucency, spatial flexibility, and aggressive acoustic isolation, selecting the right enterprise partner among China Aluminium Partition With Door Suppliers & Exporters becomes a mission-critical decision for project developers, B2B importers, and general contractors.
Changsha Wincraft Aluminum Window Tech Co., Ltd. operates at the intersection of structural precision engineering and architectural aesthetics. Operating a state-of-the-art 20,000 m² modern manufacturing base, Wincraft integrates continuous R&D, automated CNC profile machining, robotic glass assembly, and rigorous quality assurance protocols to export high-performance aluminum wall partitions, swing doors, magnetic levitation sliding doors, sunrooms, and curtain wall fenestrations to over 80 countries worldwide.
Information Gain: Metallurgy & Profile Physics
Wincraft utilizes primary 6063-T5 and high-tensile 6063-T6 aluminum extrusions featuring web thicknesses exceeding standard ASTM B221 norms (1.4mm to 3.0mm structural wall thickness). Integrated with PA66GF25 (25% fiberglass reinforced polyamide) thermal break strips, our partition and window profiles effectively mitigate heat bridge conduction while achieving acoustic reduction ratings up to STC 48 dB.
20,000 m² Production Base
Automated extrusion profile processing, precision mitering, multi-station CNC milling, and robotic double-glazed insulated unit (IGU) assembly lines.
Global Standard Compliance
Certified to CE (EN 14351-1), Australian AS2047, NFRC energy standards, and ISO9001 total quality management benchmarks.
24-Hour CAD Turnaround
In-house structural facade engineers deliver BIM models, 3D renderings, and detailed shop drawings within 24 hours of inquiry.
Custom OEM/ODM Packaging
Fully engineered protective export wooden crating, corner guarding, and moisture-barrier vacuum packing for safe ocean freight delivery.
Future Procurement Trends in Commercial Aluminum Partitions & Doors (2026–2030)
Understanding market shifts and technology adoption curves allows global B2B procurement heads and commercial real estate buyers to select profile systems that avoid early obsolescence.
1. Magnetic Levitation (Maglev) & Smart Automation
The industry is rapidly transitioning from traditional mechanical overhead track rollers to contactless linear magnetic induction drives. Maglev sliding doors eliminate mechanical gear friction, delivering silent operation (<30 dB noise level), zero track wear, soft-closing safety sensors, and smart integration with modern building automation systems (BAS) and access control protocols.
2. Micro-Slimline Profiles & High Daylight Autonomy
Architectural interior preferences favor ultra-narrow sightlines (vertical mullions under 16mm). Modern extruded aluminum alloy profiles must combine structural stiffness with minimal visible frames. Flush-floor threshold designs and concealed pivot hinges create unbroken visual continuity between office zones while meeting ADA accessibility guidelines.
3. High Acoustic Isolation (STC 45+) & Hybrid Glazing
With open-plan corporate layouts requiring private executive meeting spaces, acoustic engineering is paramount. B2B buyers now mandate acoustic laminated glass (PVB/SGP interlayers) paired with double EPDM drop-down automatic bottom seal gaskets to achieve lab-certified sound suppression without relying on heavy masonry walls.
Aluminum Fenestration System Benchmark & Material Specifications
Direct engineering insights provided by Changsha Wincraft Aluminum Window Tech Co., Ltd. comparing system structural performance, thermal transmittance, and surface coating resilience.
| Partition & Door Category | Profile Alloy Grade | Glazing Specification | Acoustic Rating (STC) | Thermal U-Value (W/m²K) | Key Commercial Application |
|---|---|---|---|---|---|
| Maglev Slim Sliding Door | 6063-T6 (Narrow 16mm frame) | 8mm / 10mm Toughened Glass | 32 – 36 dB | 2.8 – 3.2 | Modern Executive Offices, Luxury Residential Interiors |
| Acoustic Interior Swing Door | 6063-T5 Heavy Wall (2.0mm) | 5+0.76PVB+5 Laminated Double Glass | 42 – 48 dB | 2.1 – 2.4 | Boardrooms, Conference Centers, Sound Recording Studios |

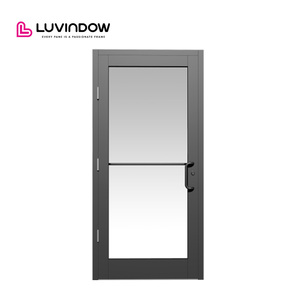

| Storefront Impact Entrance Door | 6063-T6 Reinforced (3.0mm) | 6+12Ar+6 Low-E Hurricane Impact | 38 – 42 dB | 1.6 – 1.9 | Commercial Retail Storefronts, Coastal Entrances |
| Passive House Tilt & Turn Window | PA66GF25 Thermal Break 34mm | 5Low-E+12Ar+5+12Ar+5 Triple Pane | 45 – 50 dB | 0.8 – 1.1 | Eco-Residences, Cold Climate Commercial Projects |

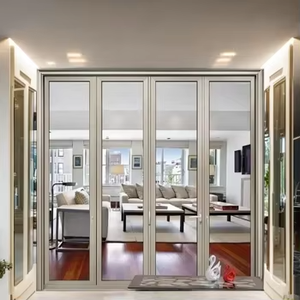

| Heavy Duty Exterior Bifold Door | 6063-T5 Structural (2.5mm) | 6+14Ar+6 Double Tempered Low-E | 36 – 40 dB | 1.5 – 1.8 | Patio Extensions, Hotel Balconies, Restaurant Façades |
Surface Coating Technologies
Wincraft offers high-durability surface treatments engineered for harsh environmental exposures:
- Qualicoat Class 2 Powder Coating: Weather-resistant polyester powders tested for 10-15 years UV resistance without chalking or fading.
- PVDF Fluorocarbon Coating: Premium 3-coat fluoropolymer finish providing exceptional resistance to coastal salt spray, industrial acid rain, and extreme solar radiation.
- Anodized Architectural Finishes: Anodized film thickness up to 25 microns (AA25 standard) providing metallic elegance and scratch-resistant durability for interior partitions.
Hardware Integration & Cycle Testing
Hardware failure is the leading cause of door breakdown. Wincraft partners with global tier-1 hardware manufacturers (Roto, Siegenia, Hoppe, CMECH) alongside proprietary heavy-duty multi-point locking gear:
- Cycle Test Longevity: Roller systems and hinges tested to exceed 100,000 operational open/close cycles under full load capacity (up to 300kg per leaf).
- Multi-Point Lock Security: Stainless steel 304 locking mechanisms providing anti-pry security and airtight gasket compression.
- Concealed Heavy-Duty Hinges: Fully concealed 3D-adjustable hinges maintaining minimalist visual appeal while supporting large glass panel loads.
Enterprise Strengths & One-Stop B2B Export Workflow
From initial architectural blueprint review to container dispatch, Wincraft eliminates the complexity of sourcing structural fenestration from China.
1. One-Stop Whole-House & Project Packages
We don't just sell single profiles; we supply complete system packages including partition walls, aluminum casement windows, sliding patio doors, glass sunrooms, and louvered pergolas matched precisely in profile anodizing color and glass tint.
2. OEM/ODM Private Label Engineering
Custom profile die manufacturing for brand owners, distributors, and system integrators. We support private label protective film, custom hardware engraving, and custom packaging design tailored to regional market demand.
3. Full Export Logistics & DDP Shipping Support
Complete customs export clearance, bill of lading (B/L) processing, ocean container loading optimization, real-time shipment tracking, and DDP (Delivered Duty Paid) door-to-door delivery options for hassle-free purchasing.
Ready to Request a Technical Tender or Direct Factory Quote?
Contact Changsha Wincraft Aluminum Window Tech Co., Ltd. today to submit your DWG/CAD drawings, BOQ item lists, or project specifications. Our structural engineers respond within 24 hours.
Frequently Asked Questions for B2B Procurement & Importers
Essential technical and commercial guidance to assist architectural buyers, trade importers, and project engineers during supplier evaluation.
Elevate Your Project With High-Performance China Aluminum Partitions & Doors
Partner with Changsha Wincraft Aluminum Window Tech Co., Ltd. — your trusted OEM/ODM factory supplier for acoustic office partitions, maglev sliding doors, thermal break windows, and structural architectural glass systems.
