Explore our factory-direct structural glazing, thermally insulated entrance systems, and heavy-duty storm-resistant profiles optimized for hot and arid climatic zones.
Engineered with high-tensile 6063-T5 aluminum frames and triple-pane insulated glass. Provides maximum acoustic mitigation and structural resistance against severe dust storms and extreme thermal exposure.
View Details & Specs
Industrial-grade weatherproof entry hatch door featuring gas piston assistance, heavy-duty pneumatic sealing gaskets, and multi-point quick-action locking mechanisms for harsh environment applications.
View Details & Specs
Iconic black powder-coated aluminum French doors featuring ultra-slim sightlines, internal architectural glass muntin grids, integrated solid bottom kickplates, and premium high-security locksets.
View Details & Specs
Smooth-glide heavy-duty patio and interior multi-panel sliding door system featuring low-threshold track options, double-glazed toughened safety glass, and exceptional dust-barrier sealing technology.
View Details & Specs
Dual-action European tilt-and-turn mechanism offering secure micro-ventilation and full inward opening for easy maintenance. Built with polyamide thermal break strips for superior solar gain control.
View Details & Specs
AS2047 standard outward-opening awning window equipped with protective security grills and privacy frosted glass configurations. Optimized for waterproof integrity and rain-proof ventilation.
View Details & Specs
Precision-engineered interior flat swing door featuring corrosion-resistant extruded aluminum frames and sound-dampening tempered frosted safety glass. Ideal for luxury residential and hotel suites.
View Details & Specs
Hybrid structural profile uniting an exterior weather-defending aluminum shield with rich interior solid timber. Incorporates heavy-duty anti-pry multi-point hardware for high-end courtyard entrances.
View Details & SpecsAn in-depth analysis of structural requirements, solar heat gain mitigation, and procurement standards for real estate developers, EPC contractors, and importers across Baghdad, Basra, Erbil, and Mosul.
In Iraq's desert climate, outdoor surface temperatures on metal profiles can exceed +75°C. Standard hollow aluminum frames transmit severe radiant heat into living spaces. Our Polyamide PA66 GF25 thermal break technology isolates interior and exterior frame zones, drastically reducing U-values to < 1.6 W/m²K and lowering HVAC power loads by up to 35%.
Dust storms (Shamal winds) across the Tigris-Euphrates basin deposit fine airborne silt into standard door tracks, causing lock failure and air infiltration. Wincraft Black French Doors feature continuous triple-layered EPDM automotive-grade rubber gaskets and concealed drop-down automatic bottom sealers that block dust ingress down to 5 microns.

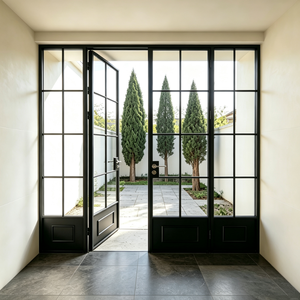

Modern Iraqi architecture in Erbil, Sulaymaniyah, and Baghdad has shifted dramatically toward European industrial minimalism. The classic Black Crittall style aluminum glass door with thin muntin bars provides expansive daylight transmission while fulfilling local preference for grand, high-security structural entrances.
When sourcing exterior and interior fenestration systems from Chinese manufacturers, Iraqi contractors and wholesale distributors must evaluate key technical performance parameters to ensure compliance with local building codes and rigorous environmental demands. Below is an engineering overview of structural alloy selection, surface finish resilience, double-glazing configurations, and installation mechanisms tailored for the Middle East market.
Structural integrity begins with primary billet aluminum. Lower-tier suppliers frequently utilize recycled scrap alloy containing impurities that degrade under high thermal stress. Wincraft manufactures all structural profiles using prime-grade 6063-T5 aluminum alloy with wall thicknesses ranging from 1.4mm for windows to 2.0mm–3.0mm for heavy-duty hinged exterior French doors and multi-track sliding systems. This guarantees structural rigidity under wind pressures up to 3.0 kPa (equivalent to severe storm conditions).
Direct exposure to intense UV radiation in Southern cities like Basra causes low-quality black paint to chalk, discolor, or blister within 12 to 18 months. For Iraqi projects, we apply zero-VOC, ultra-durable AkzoNobel or PPG Qualicoat Class 2 electro-statically applied powder coating or 3-coat PVDF fluorocarbon coatings. Tested under 2,000 hours of continuous salt-spray and accelerated QUV radiation chambers, our matte black finishes retain over 90% gloss level and color integrity over a 20-year service life.
Glass represents up to 80% of a door or window assembly's surface area. To prevent indoor heat buildup in Iraqi summer months, single glazing must be replaced with double- or triple-glazed insulated units (IGUs). We recommend a 6mm Toughened Clear + 12Ar (Argon Gas Spacer) + 6mm Solar-Control Low-E Glass assembly. This reduces the Solar Heat Gain Coefficient (SHGC) to 0.28 while preserving excellent visual light transmittance (VLT), significantly mitigating interior cooling expenditure.
Compare structural, thermal, and operational metrics between Wincraft Thermal Break Aluminium French Doors, standard non-thermal aluminum, traditional wrought iron, and UPVC systems.
| Performance Feature | Wincraft Thermal Break Black Aluminium | Standard Non-Break Aluminium | Wrought Iron / Steel Doors | Standard UPVC Door Systems |
|---|---|---|---|---|
| Thermal Insulation (U-Value) | 1.4 – 1.8 W/m²K (Excellent) | 3.5 – 5.2 W/m²K (Poor) | 5.8 – 6.5 W/m²K (Extremely Poor) | 1.8 – 2.2 W/m²K (Good) |
| UV Resistance & Finish Durability | Qualicoat Class 2 / PVDF (20+ Yrs) | Standard Powder Coating (3-5 Yrs) | Paint prone to rust/flaking (1-2 Yrs) | Prone to yellowing/warping under high UV |
| Air & Dust Infiltration Rating | Class 4 (EN 12207) - Air Tight | Class 2 (Moderate Infiltration) | Low (Gap prone without seals) | Class 3 (Good Seal) |
| Structural Strength & Max Span | High Tensile 6063-T5 (Large Panels) | Medium (Prone to deflection) | Very High (Extremely Heavy) | Low (Requires steel reinforcement) |
| Maintenance & Service Life | Zero Maintenance / 30+ Years | Low / 15-20 Years | High Maintenance (Frequent repainting) | Medium / 10-15 Years |
Changsha Wincraft Aluminum Window Tech Co., Ltd. operates state-of-the-art extrusion, precision CNC machining, and automated assembly facilities engineered for international B2B buyers.
We provide end-to-end technical support for private labeling, customized profile dies, unique glass muntin layouts, and bespoke architectural hardware. Our engineers translate client architectural CAD drawings into shop drawings within 24 hours.
Standard custom order lead time is approximately 4 weeks. Every door and window assembly undergoes strict 5-stage QC before being packed in fully enclosed plywood crates with protective foam wrap for safe sea transport to Um Qasr Seaport or Erbil Dry Port.
All Wincraft fenestration lines comply with globally recognized testing protocols including CE, NFRC, AS2047, and ISO 9001 quality management standards, giving wholesalers and project developers full confidence in engineering integrity.
Key considerations regarding shipping, technical customisations, climate adaptability, and ordering procedures for doors and windows bound for Iraq.
Expanding a commercial development or looking for a reliable factory-direct supplier for your door and window wholesale distribution business in Iraq? Contact our engineering team today for instant CAD support and competitive FOB/CIF quotation rates.
