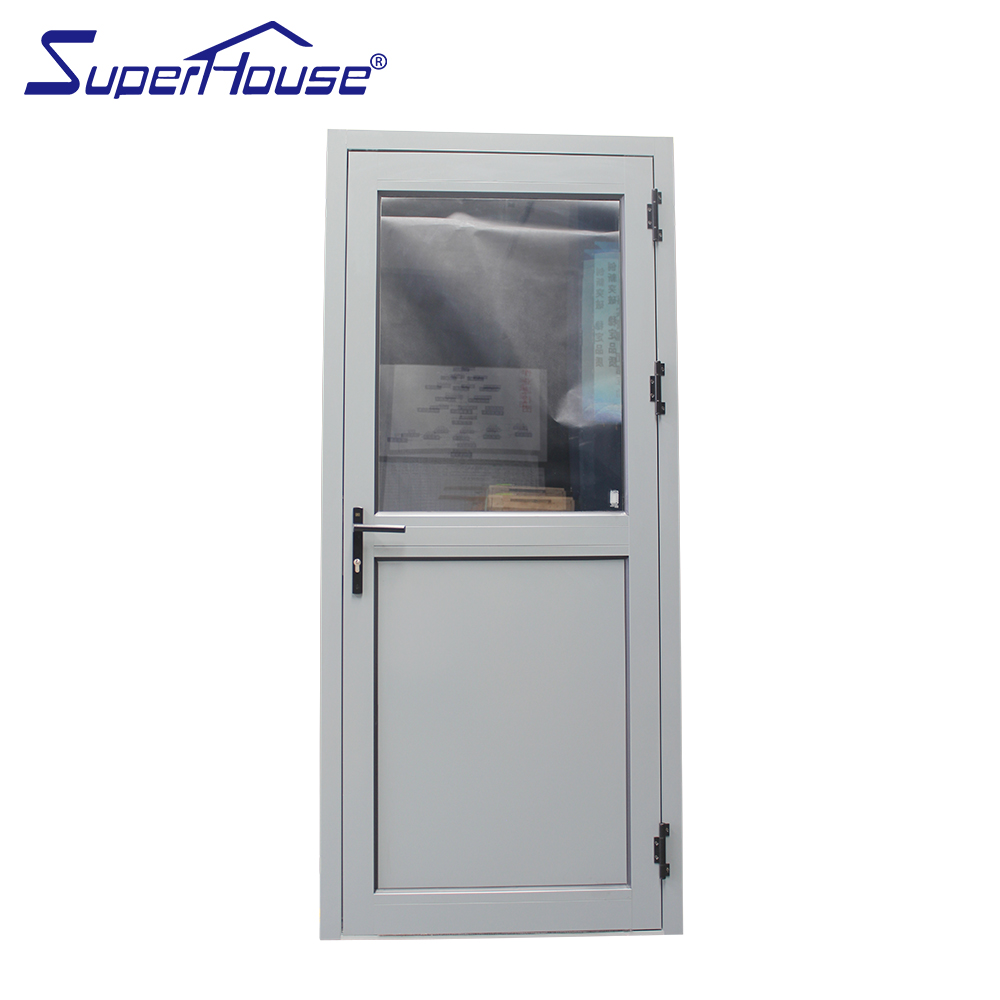

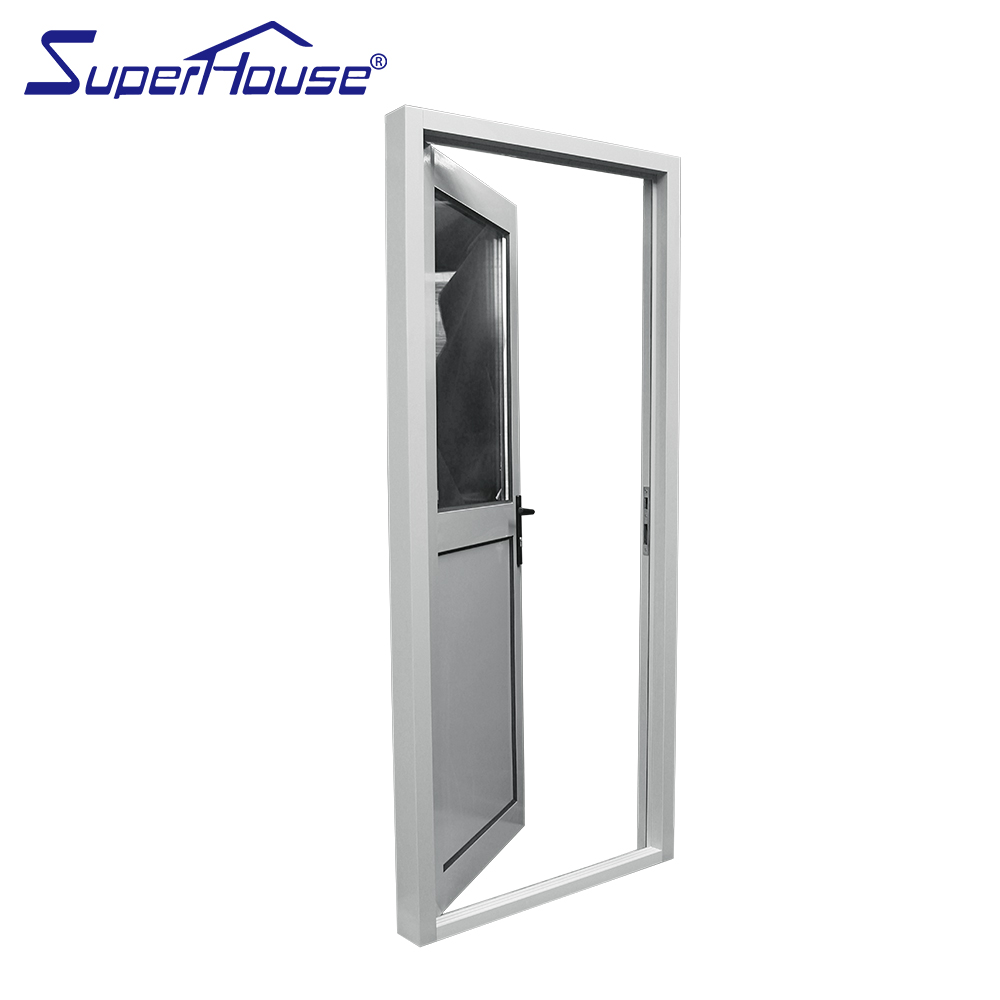

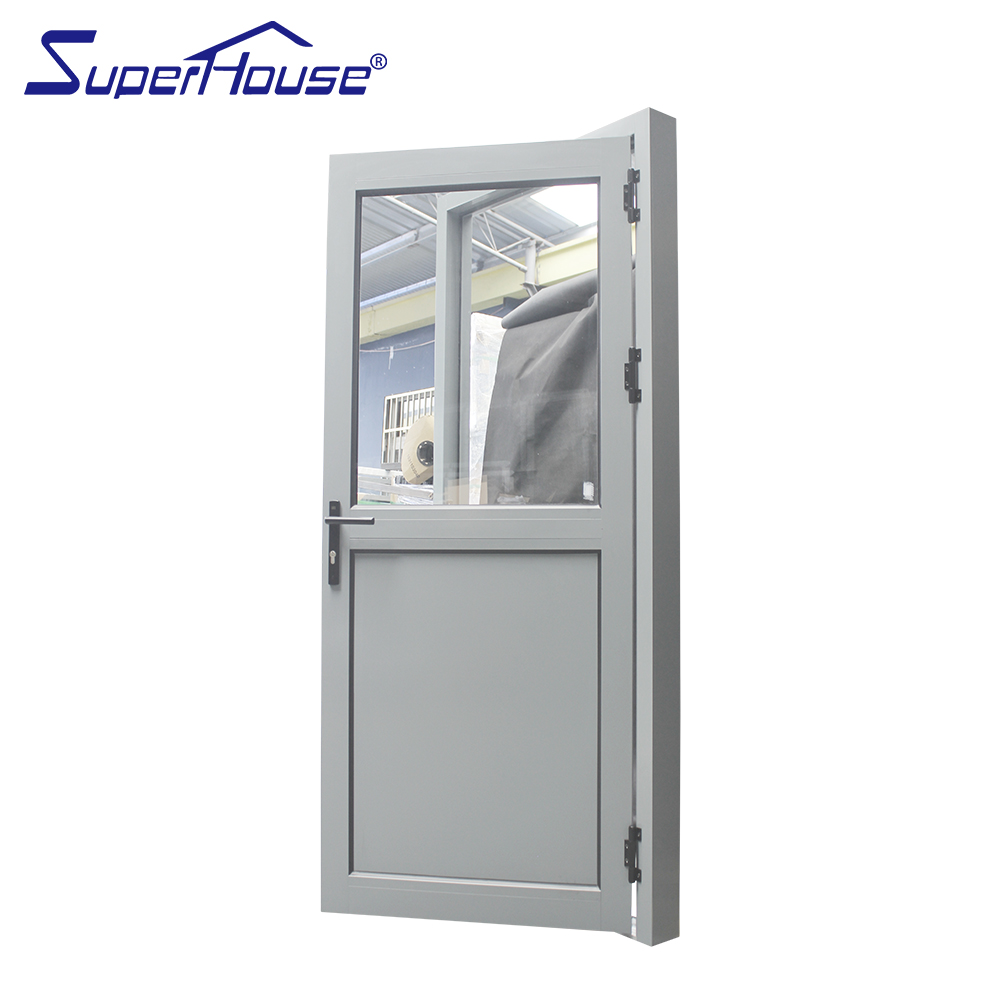

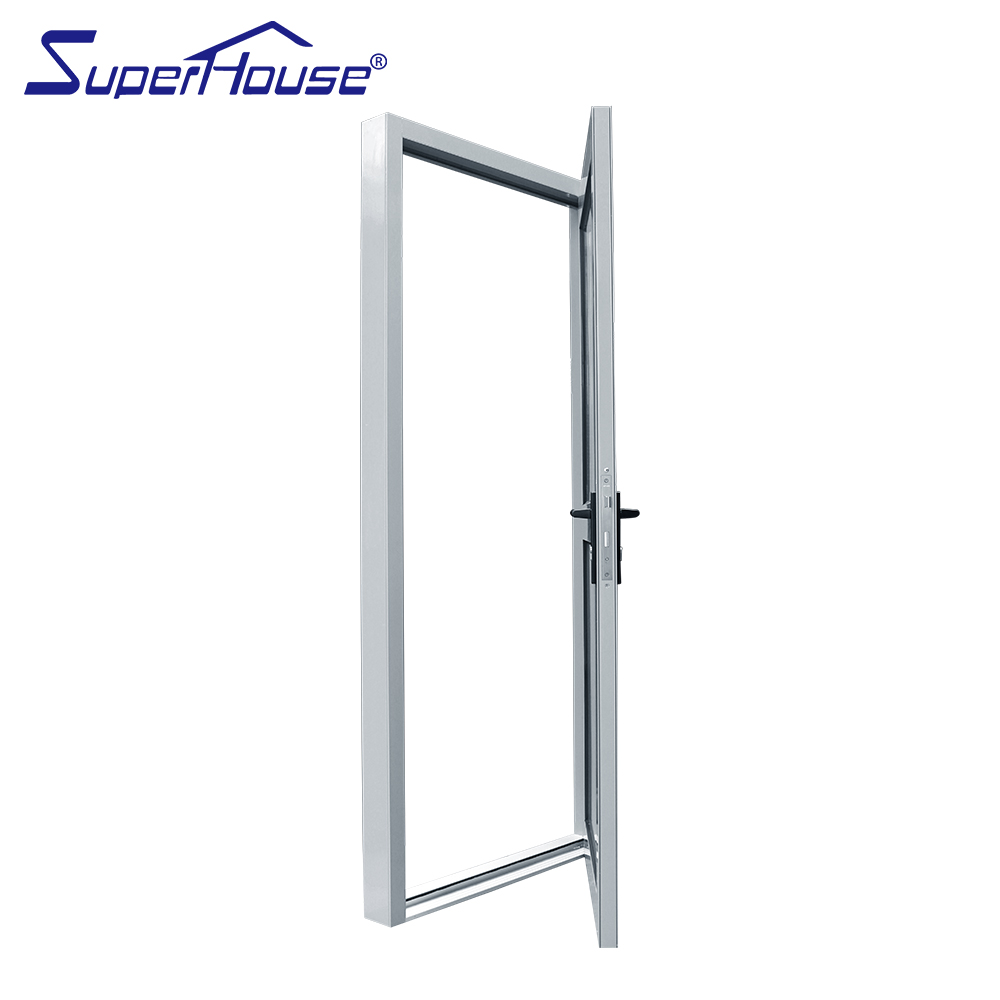

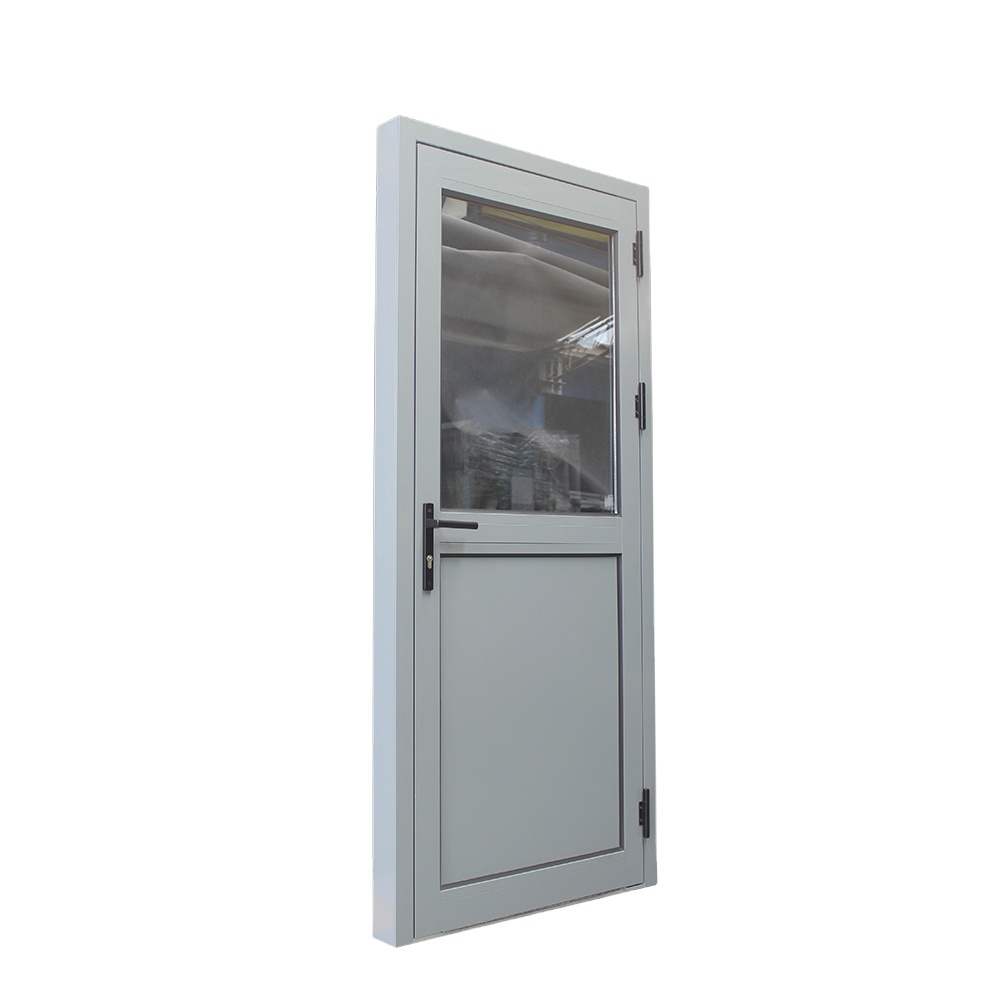

AS2037 NFRC Half Glass Half Aluminum Casement Door
Product Description
Aluminum hinged door, has a hinge to fix the door frame, and the hinge of the swing door is installed beside the door, so that the door can be opened inward or outward. The material of the aluminum alloy is relatively durable in the door material, so it is popular.
Aluminum swing door is also divided into a single door and a double door. A single door requires only one door plate, and the door opening method is opened or opened in one direction. Double door opening requires two door panels, which are opened in both directions when opening the door.
Key Advantages of Aluminum Alloy Swing Doors
First of all, the aluminum alloy itself has good plasticity and is easy to process. Secondly, the corrosion resistance ratio of the aluminum alloy is very strong, and the service life of the door is long. The high-end aluminum alloy swing doors are mostly double-layer hollow design, which not only has very good sound insulation effect, but also has air tightness and water tightness.
Product Specifications
| Profile | Type | Aluminium 6063-T5 & 6063-T6, or customized |
| Thickness | 2.0mm, 2.5mm | |
| Color | Grey, black, etc. | |
| Glass | Type | Toughened, tempered, frosted, single, double, triple, etc. |
| Color | Blue, Transparent, European grey, glazed colour, etc. | |
| Surface Treatment | Powder coated, PVDF, anodized | |
| Hardware | Australian hardware | |
| Europe brand hardware | ||
| Top Chinese hardware | ||
| Screen Netting | Fiberglass | |
| Stainless steel | ||
| Opening Style | Sliding, hinged, folding, fixed, tilt and turn, awning, hung, electrical | |
| Others | According to your requirements | |
Export Experience & Customization
In the past few years, Superhouse exported various kinds of aluminium hinged doors, including residential doors, commercial doors.
Different Buyer, Different Choice.
We are capable of customizing any kind of aluminium hinged doors according to customer's demand. Here are some exported products showed below.
In general, most of us spend much time indoor, however, the complexity and variety of the outdoor natural environment cause much trouble to our indoor office and life, including cold, heat, noise, hurricane, impact, rainstorm, and so on.
The doors and windows bring us sunshine, ventilation, beauty, good view, but it is also a weak place for the house to withstand extreme outdoor conditions. Therefore, choosing high performance windows and doors for your house, you will get a safe and comfortable indoor environment.
Superhouse P80 System Features

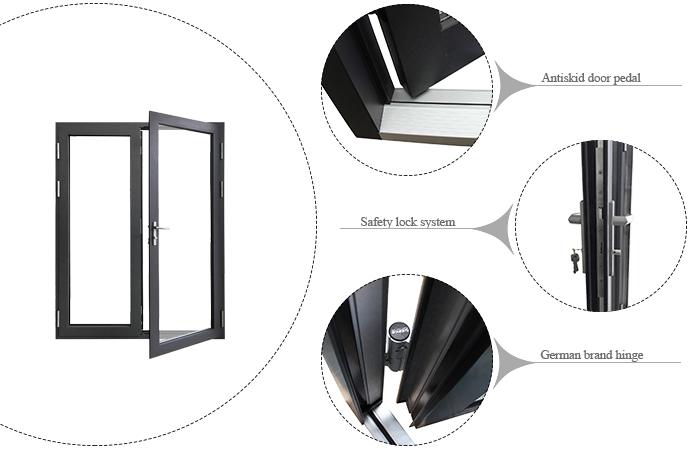

Superhouse P80 System is excelent heat insulating function, which belong to our star system wtih very high quality and with kick plate. It could realized inwards opening, outwards opening, low doorsil and high dooill. With design of lit & sliding door, and bi-folding door. Also there are different kinds of hardware to choose and it could meet C and U Groove with multi point locking system.
Technical Data & Performance
Technical Data
- Visible Width (Frame) 51.2mm
- Visible Width (Sash) 81.5mm
- Profile Depth (Frame) 79mm
- Profile Depth (Sash) 89mm
- Depth of Glass Groove 27mm
- Glass Thickness 25mm
Performance Ratings
- Thermal Insulation U ≤ 1.4 W/m²K
- Acoustic Performance ≤ 45 dB
- Air Tightness ≤ 0.4m³/(m²h)
- Wind Load Resistance ≥ 0.5KPa
- Water Penetration ≥ 600Pa
Frequently Asked Questions (FAQ)
What are the key advantages of aluminum alloy swing doors?
Aluminum alloy swing doors offer high material plasticity, outstanding corrosion resistance, and a long service life. Designed with double-layer hollow glass, they deliver exceptional sound insulation, air tightness, and water tightness.
What is the difference between single and double aluminum hinged doors?
A single door panel opens in one direction using one panel, suitable for standard entrances. Double doors utilize two panels opening in both directions, making them ideal for wider openings and commercial or spacious residential settings.
What features make the Superhouse P80 System stand out?
The Superhouse P80 System features premium thermal insulation, a kick plate, adaptable low/high doorsills, inward/outward opening, and support for bi-folding or lift & sliding configurations with multi-point C and U Groove locking options.
What performance ratings do these aluminum hinged doors achieve?
They offer robust performance including Thermal Insulation (U ≤ 1.4 W/m²K), Acoustic Insulation (≤ 45 dB), Air Tightness (≤ 0.4m³/m²h), Wind Load Resistance (≥ 0.5KPa), and Water Penetration resistance (≥ 600Pa).
Can these aluminum doors be customized for unique projects?
Yes, custom options include profile alloys (6063-T5/T6), glass types (tempered, frosted, double/triple glazing), hardware origins (Australian, European, Chinese), screen netting, and various surface finishes such as powder coating, PVDF, and anodizing.
