Featured Engineering Pocket Door Systems
Direct-from-factory architectural grade sliding pocket assemblies custom engineered for commercial, luxury residential, and hospitality developments.
- Heavy-duty 6063-T5 extruded profile
- Multi-chamber thermal insulation
- Weather-sealed perimeter gasket
- 16mm minimalist visible interlocking stile
- Double/Triple IGUs with argon gas
- Concealed heavy-duty roller track
- Top-hung trackless sill design
- High-density mesh insect screen
- Acoustic foam damping inserts
- PA66 nylon structural thermal strut
- High wind load resistance rating
- Ideal for garden & patio openings
- Sound isolation rating STC 38+
- Soft-closing mechanism on both ends
- Anodized & powder coated finishes
- Reflective one-way privacy mirror glass
- Corrosion-resistant aluminium frame
- Concealed wall box system
- Compliant with AS2047 / AS1288 standards
- Hidden track structure with zero threshold
- Custom engineered for structural wind loads
- Space-reclaiming architectural sliding design
- Tempered safety glass (EN 12150 / ANSI Z97.1)
- Precision silent carriage rollers
Executive Summary: The Evolution of Architectural Pocket Door Systems
In modern spatial engineering, the shift from traditional hinged doors to architectural aluminium pocket door assemblies represents one of the most impactful developments in usable floor-area optimization. Traditional swing doors consume up to 10–14 square feet of clear floor sweep per opening. By fully recessing the door leaf into an integrated wall cavity structure, aluminium pocket systems recover 100% of this dead space while establishing uninterrupted visual continuity across open-plan interiors and exterior transitions.
Unlike historical timber pocket doors—which suffered from cavity warping, track misalignment, and poor acoustic dampening—modern extruded aluminium pocket door frameworks leverage high-tensile 6063-T5/T6 alloys, polyamide thermal breaks, precision tandem rollers, and structural cavity cassette framing. This engineering baseline provides long-term dimensional stability, high load capacities (up to 300kg per panel), and rigorous acoustic and thermal isolation.
B2B Evaluation Criteria: Benchmarking Top Aluminium Pocket Door Manufacturers
For architectural specifiers, general contractors, and hardware importers, evaluating a pocket door supplier requires strict verification of metallurgical standards, pocket frame structural integrity, roller cycle endurance, and air/water tightness ratings.
1. Extrusion & Alloy Integrity
Top manufacturers utilize primary 6063-T5 or T6 aluminium billet extrusions with a minimum wall thickness of 2.0mm to 3.0mm for structural pocket frames. Recycled scrap profiles are strictly avoided to ensure uniform anodizing and structural load resistance under wind pressure.
2. Pocket Cavity Rigidity
A primary point of failure in low-grade pocket doors is drywall bowing into the cavity. Premium manufacturers supply reinforced, pre-assembled galvanized steel or heavy-gauge aluminium stud cages that maintain precise cavity width tolerances during wall construction.
3. Track Mechanism & Hardware
Look for heavy-duty extruded aluminium head tracks equipped with stainless steel or sealed precision ball-bearing rollers wrapped in silent polyetheretherketone (PEEK) or nylon polymers. Systems must pass a minimum of 100,000 opening/closing cycles under max panel weight.
Architectural Specification Benchmark Table
Use this matrix when compiling shop drawings and tender requests for commercial or residential pocket door procurement.
| Performance Metric | Standard Interior Specification | Thermal-Break Exterior Specification | Testing / Compliance Standard |
|---|---|---|---|
| Alloy & Temper | 6063-T5 Architectural Extrusion | 6063-T6 High-Tensile Extrusion | GB/T 5237 / ASTM B221 |
| Profile Wall Thickness | 1.4mm – 2.0mm | 2.0mm – 3.0mm Structural | EN 12020-2 |
| Thermal Insulation (U-Value) | N/A (Non-thermal break) | 1.2 – 1.8 W/m²K (Polyamide PA66) | ISO 10077-2 / NFRC 100 |
| Acoustic Isolation (STC/Rw) | STC 28 – STC 35 | STC 38 – STC 44 (Double/Triple Glazed) | ASTM E90 / ISO 717-1 |
| Water Tightness | Indoor Splash Resistant | Class 9A (600 Pa Pressure) | EN 12208 / AS2047 |
| Finishing Standard | Powder Coating (60–80 μm) | PVDF Fluorocarbon (3-Coat AAMA 2605) | Qualicoat Class 2 / AAMA 2605 |
Enterprise Manufacturing Strength & OEM/ODM Capabilities
Changsha Wincraft Aluminum Window Tech Co., Ltd. delivers factory-direct engineering expertise, rapid prototype turnaround, and end-to-end export logistics for global B2B projects.
Integrated Production Base (20,000㎡)
Operating over 20,000 square meters of modern production facility equipped with multi-axis CNC machining centers, automated corner-crimping equipment, and robotic glass assembly lines. With over 20 years of fenestration manufacturing experience, Wincraft maintains full process control from profile cutting to final acoustic gasketing.
24-Hour Design & CAD Drawing Support
Our dedicated engineering office reviews architectural drawings, structural wind load requirements, and thermal constraints to produce comprehensive shop drawings, BIM models, and 3D renderings within 24 hours. Standard production lead times are benchmarked at ~4 weeks, backed by international export packaging standards.
Global Export Footprint & Code Compliance
Wincraft aluminium pocket door systems are exported to over 80+ countries and regions across North America, Europe, Australia, and the Middle East. Systems can be engineered to comply directly with regional building standards including Australian AS2047 / AS1288, American NFRC / AAMA, and European CE / EN certifications.
Future Procurement & Design Trends in Pocket Door Systems
Understanding technical shifts allows developers and procurement directors to future-proof their building projects against changing energy codes and design preferences.
Ultra-Slim & Concealed Sightlines
Architectural demand is rapidly moving toward sightlines under 18mm. Interlocking stiles are recessed directly into the wall pockets, creating an invisible glass wall effect when fully closed and total structural disappearance when opened.
Smart Motorization & Sensor Integration
Next-generation pocket doors integrate brushless linear magnetic drive motors inside the head track. This allows touchless operation via smart home systems, access cards, or motion sensors, with automatic obstacle detection safety protocols.
Flush Zero-Threshold Drainage
For exterior patio pocket doors, zero-barrier flush sills with sub-floor continuous linear drainage channels allow barrier-free access (ADA compliant) while preventing water ingress under storm conditions.
Global Project Engineering Cases
Custom pocket door fenestration packages delivered to luxury private villas, boutique hotels, and modern residential high-rises globally.
High-End Coastal Villa Project
Heavy-duty thermal break exterior pocket doors with hurricane impact laminates and PVDF anti-corrosion coating.
Urban Penthouse Interior Partitions

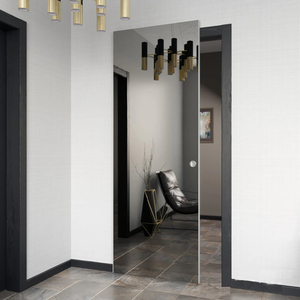

Slim-frame double glass magic mirror pocket doors providing acoustic separation between master suites and living areas.
Frequently Asked Technical & Procurement Questions
Answers to essential technical queries raised by architects, structural engineers, and international importers during procurement planning.
